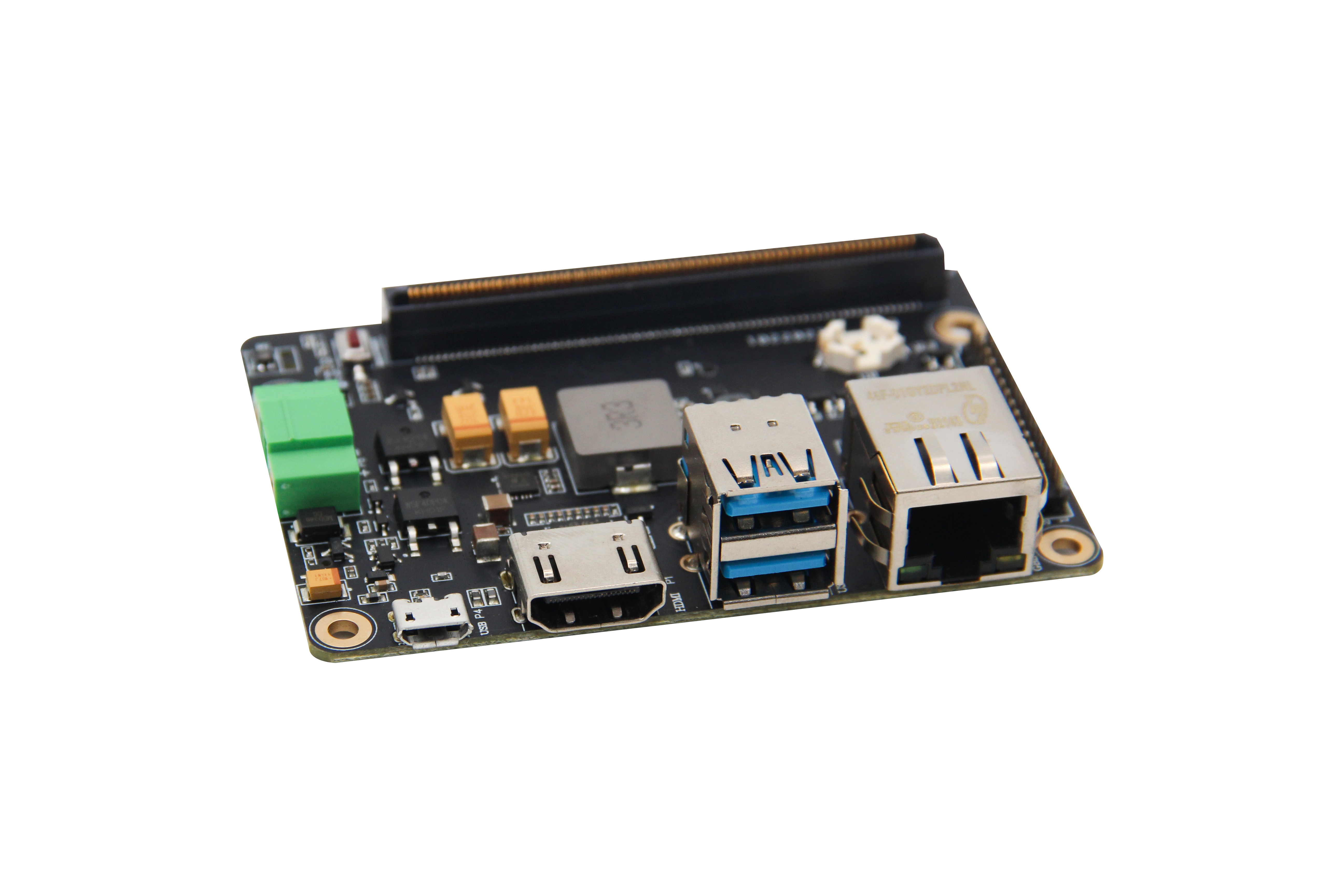

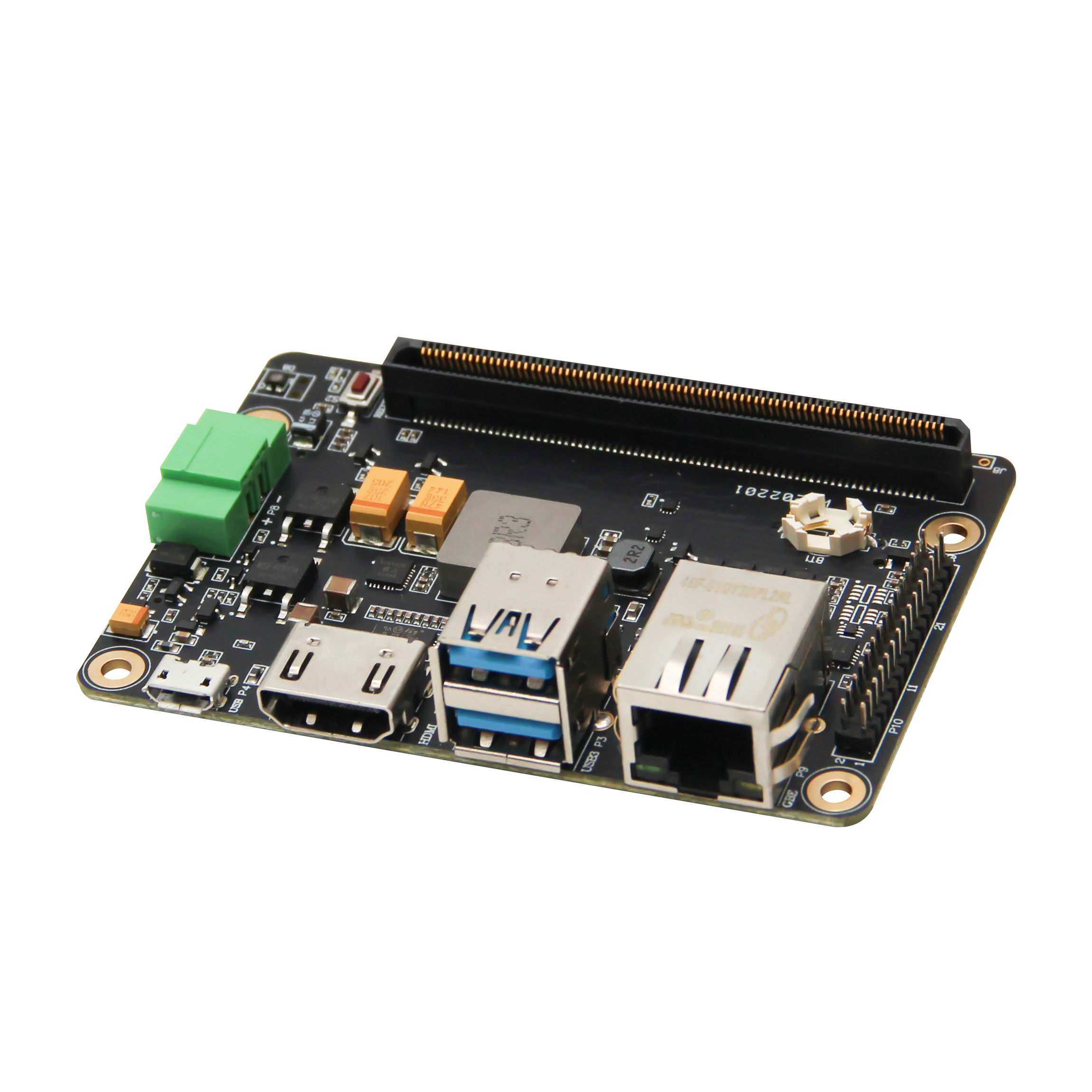

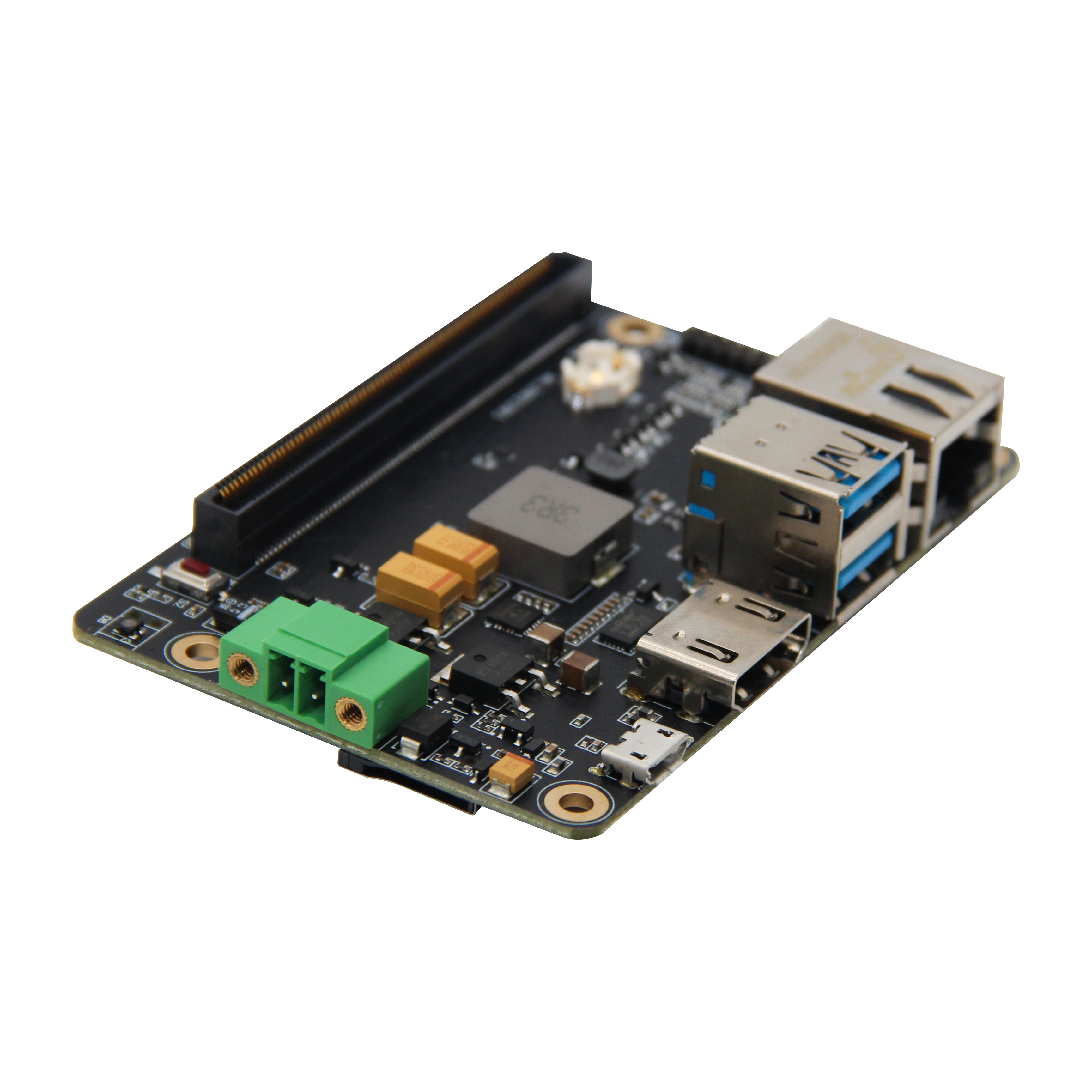

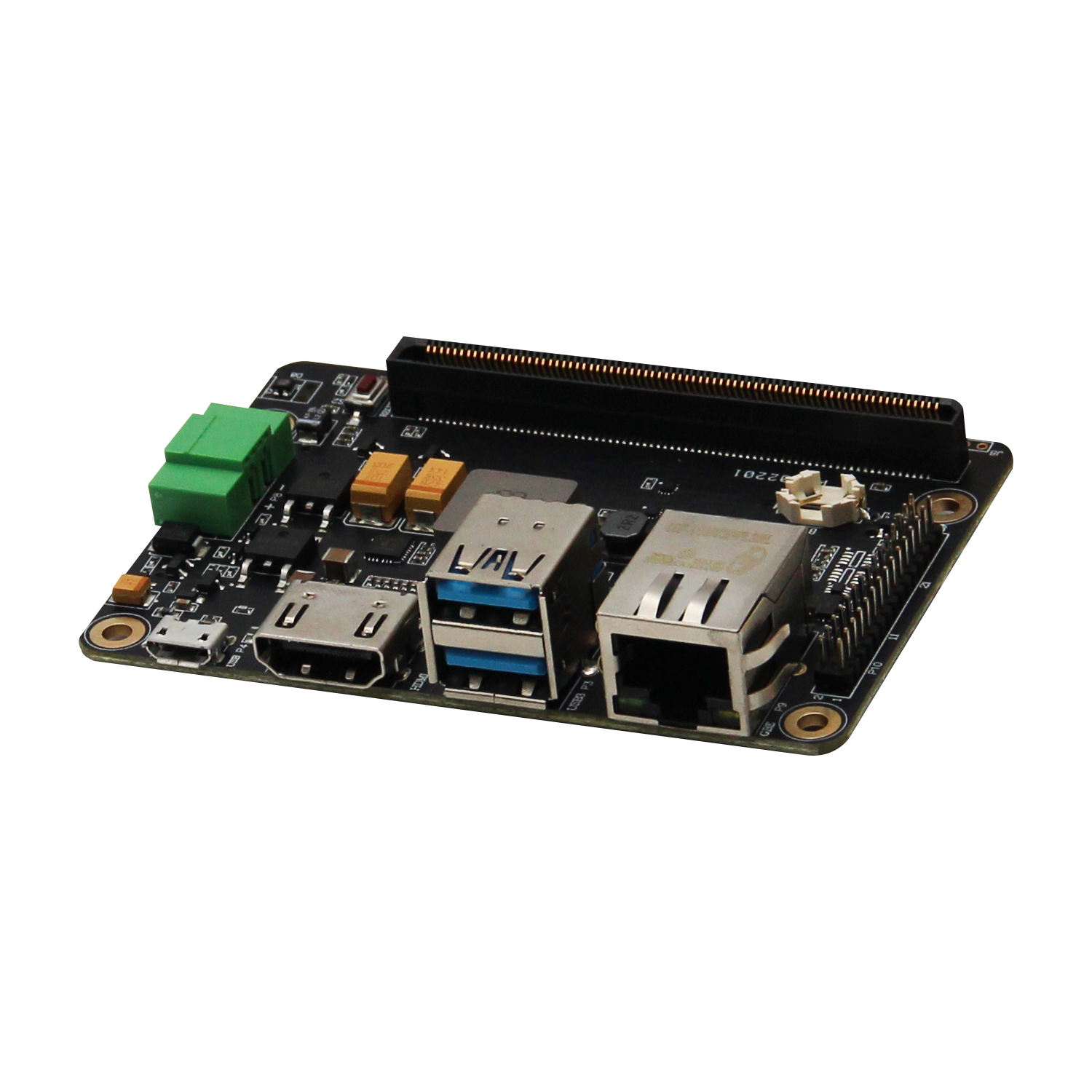

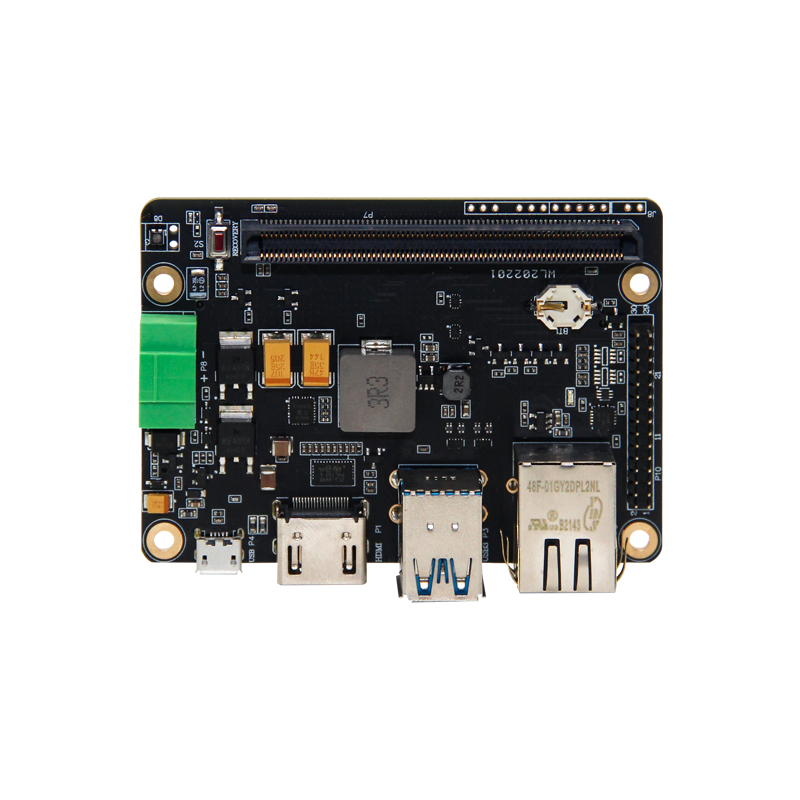

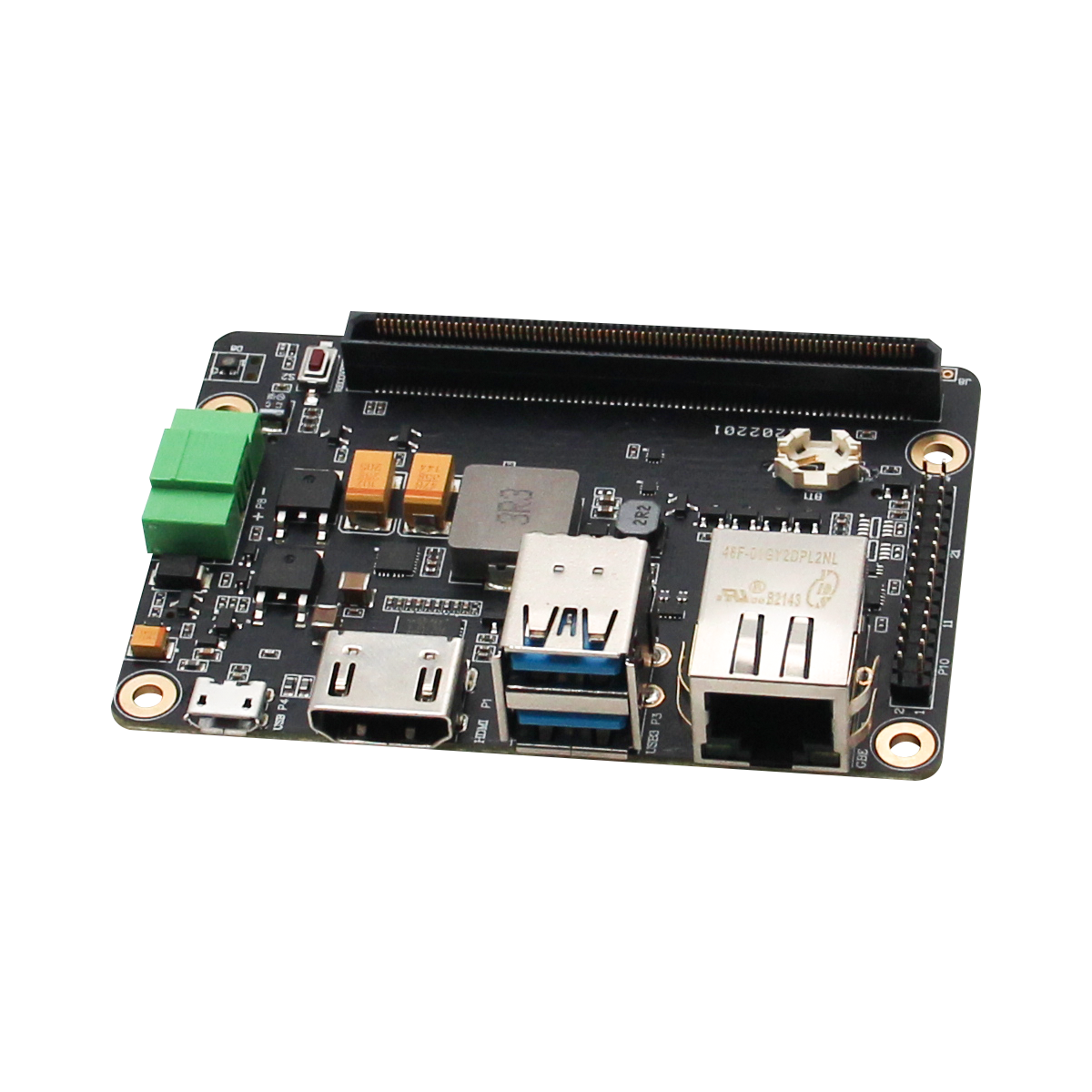

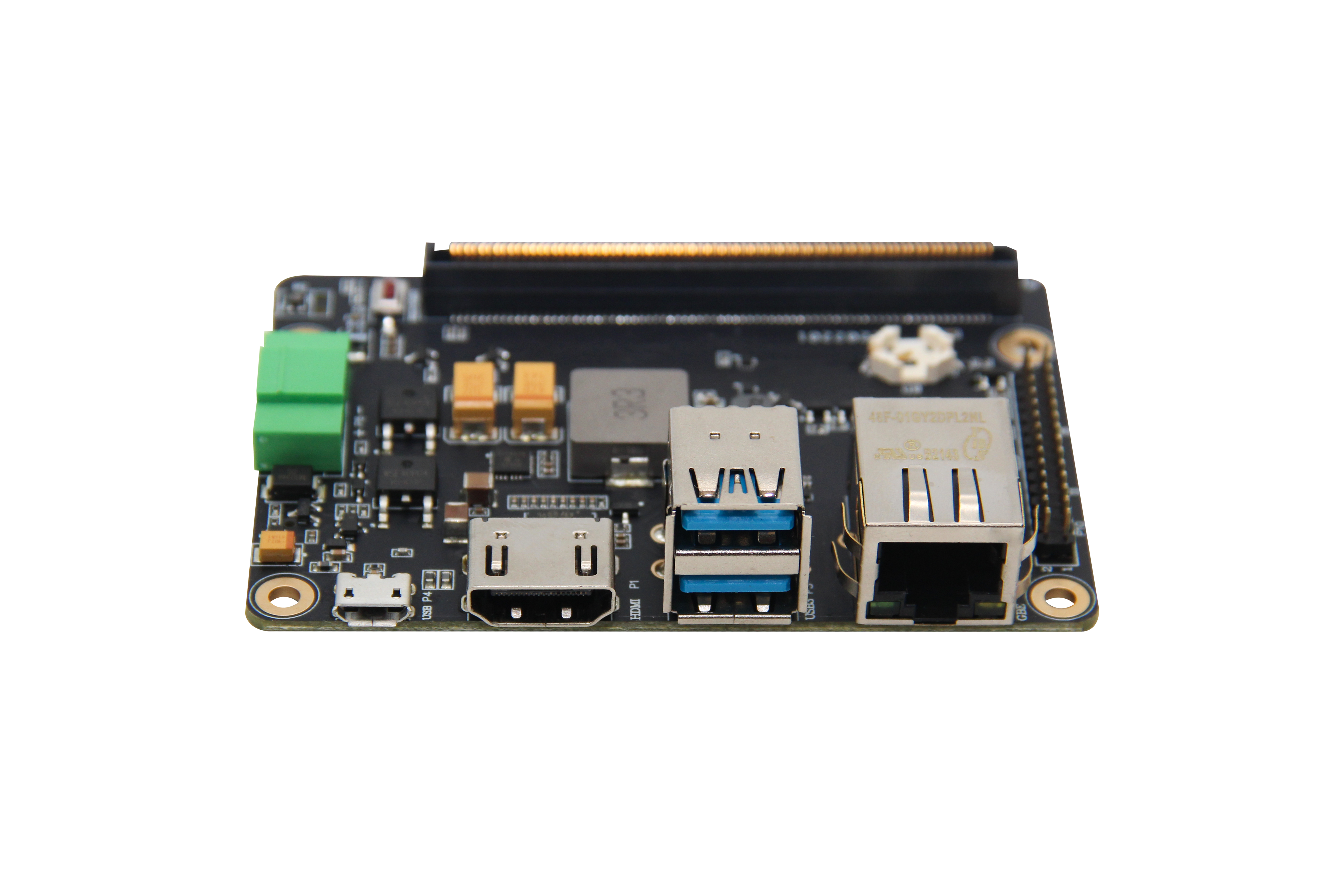

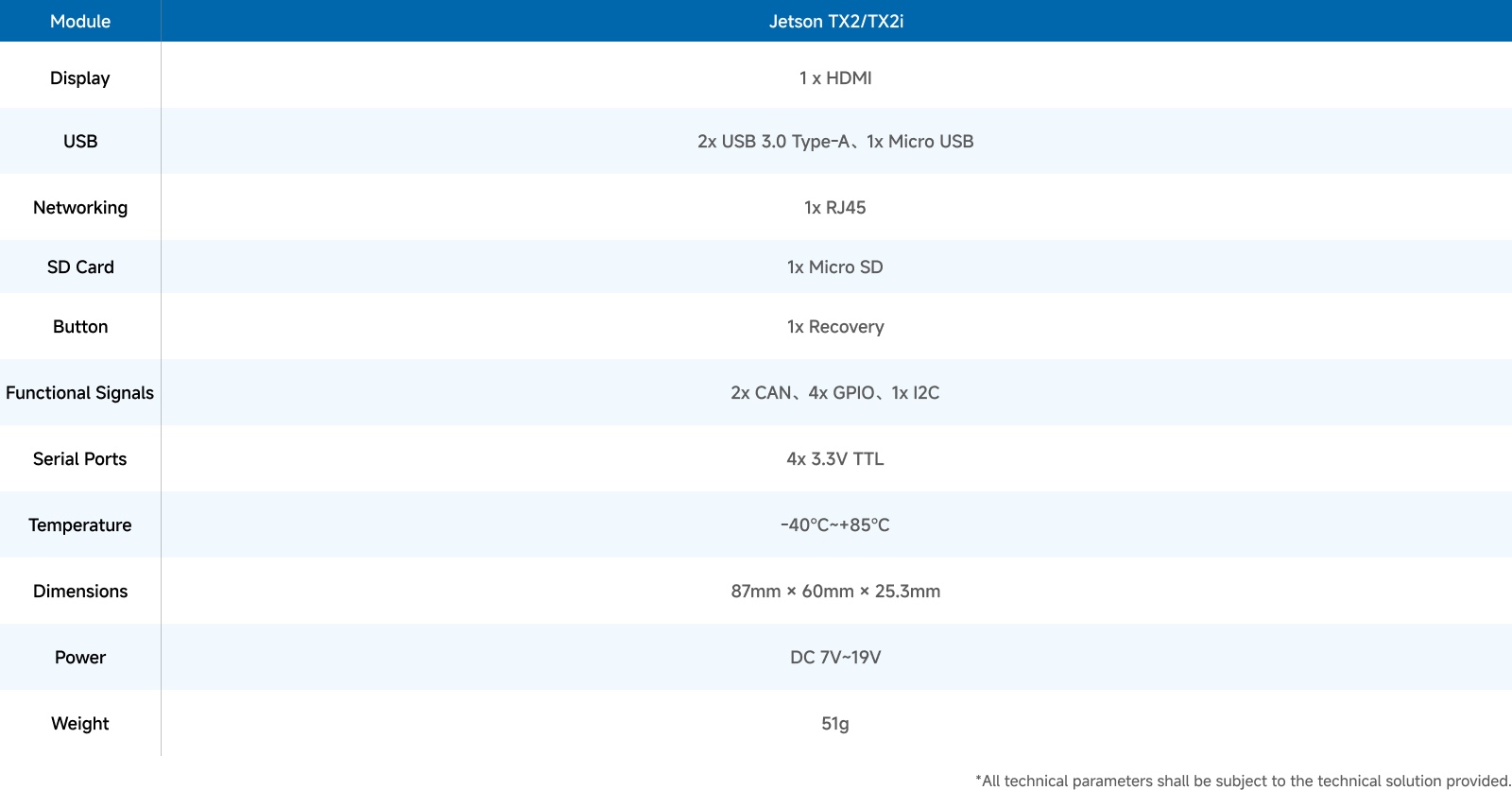

Y-C1

Compatible with Jetson™ TX2 / TX2i

Display: 1×HDMI

Rich I/O: 1×RJ45, 2×USB3.0 Type-A, 1×Micro USB, 1×Micro SD, 2×CAN, 4×GPIO, 1×I2C, 3×TTL

Operating Temperature: -40℃ ~ +85℃

Input Voltage: DC 7V ~ 19V

Alibaba

Overview

Y-C1 is a high-compatibility edge AI carrier board designed for NVIDIA® Jetson™ TX2 / TX2i . With low cost, small size and high integration, it delivers reliable hardware support for smart IoT terminals and intelligent detection in compact deployments.It features industrial-grade high-reliability design with ESD, over-voltage and reverse polarity protection, and wide-temperature components for stable operation in harsh environments. A 150-pin high-speed expansion connector supports SATA, PCIe, MIPI CSI, I2C, I2S, SPI and DP signals, enabling flexible integration of multi-camera, high-speed storage and peripheral modules.

Applications
