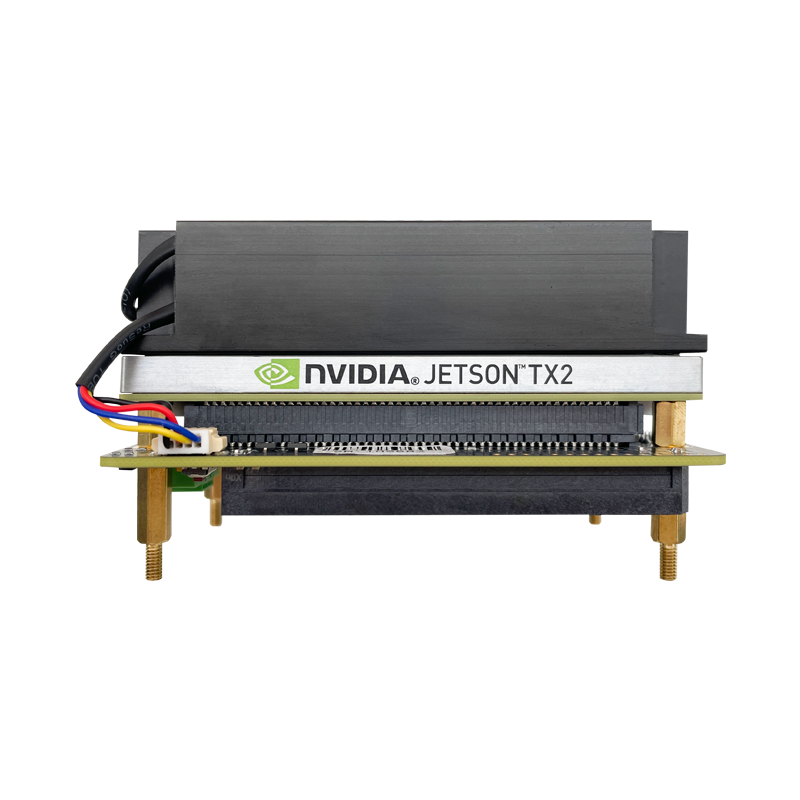

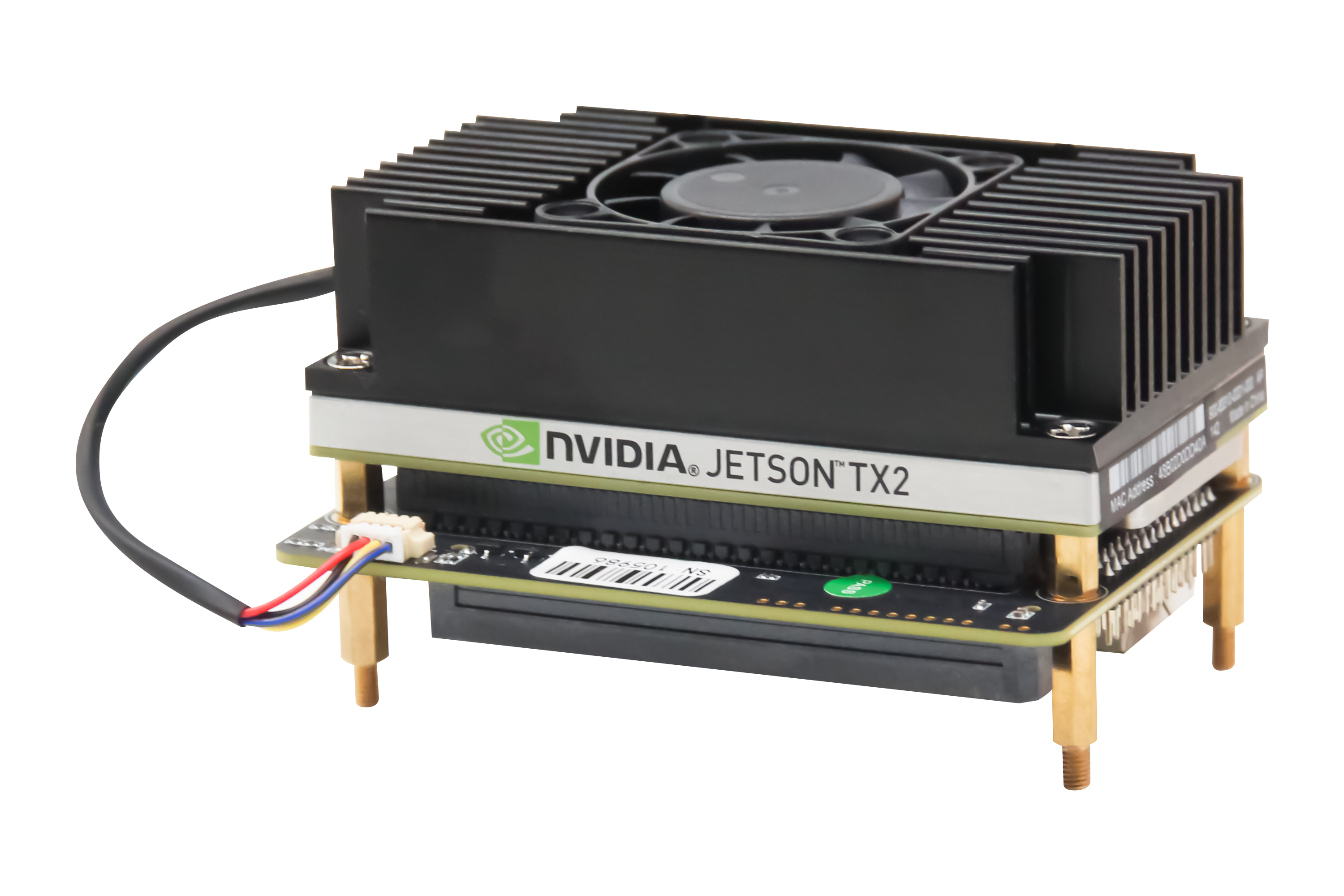

Y-C1-DEV is an edge AI computing development kit powered by NVIDIA® Jetson™ TX2/TX2i system-on-modules. With low cost, compact size and high integration, it meets industrial edge AI requirements for high performance, low power and reliable operation in harsh environments, providing stable hardware support for AI algorithm deployment in smart IoT and intelligent detection.The kit integrates a 150-pin high-speed expansion connector for SATA, PCIe, MIPI CSI, I2C, I2S, SPI and DP signals. When used with the Y-C1-E1 expansion board, it supports multi-camera access, high-speed storage expansion and modular peripheral extension, greatly improving hardware compatibility and scalability.

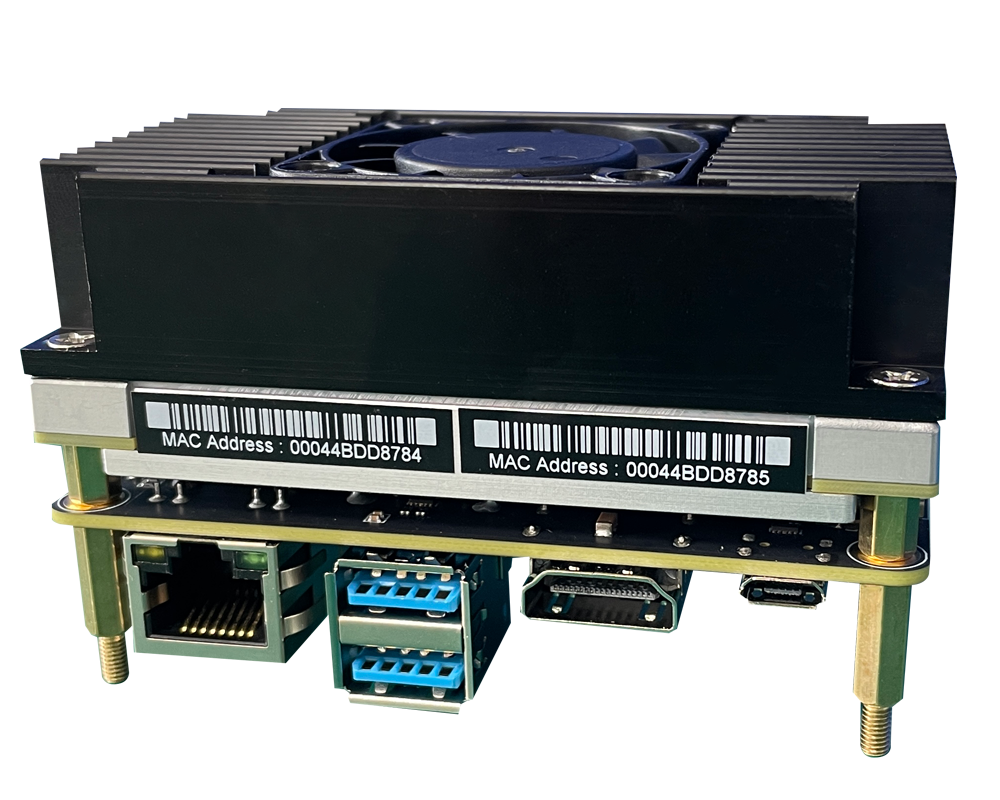

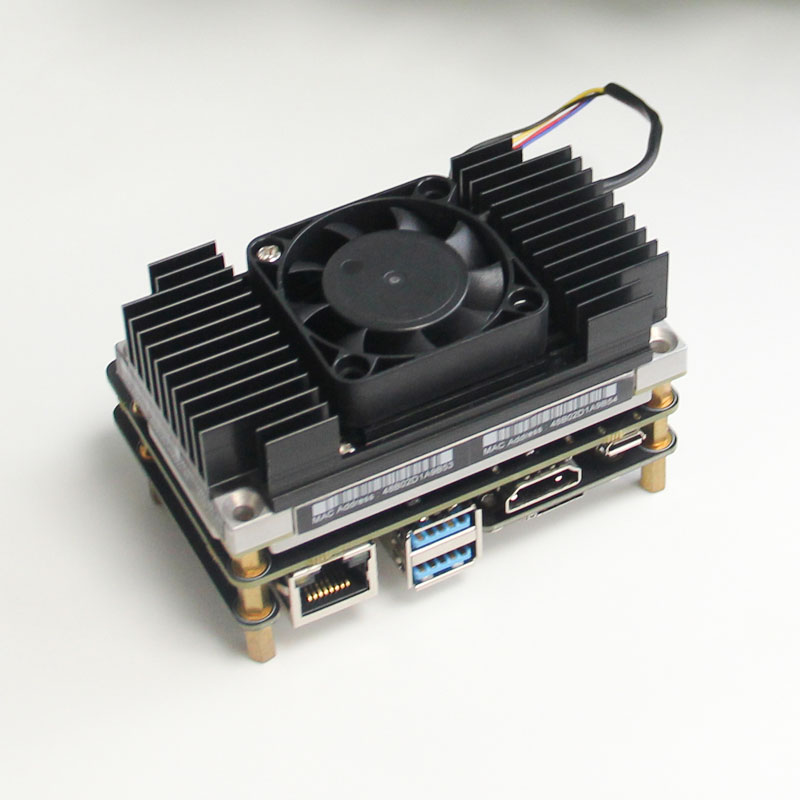

Y-C1-DEV

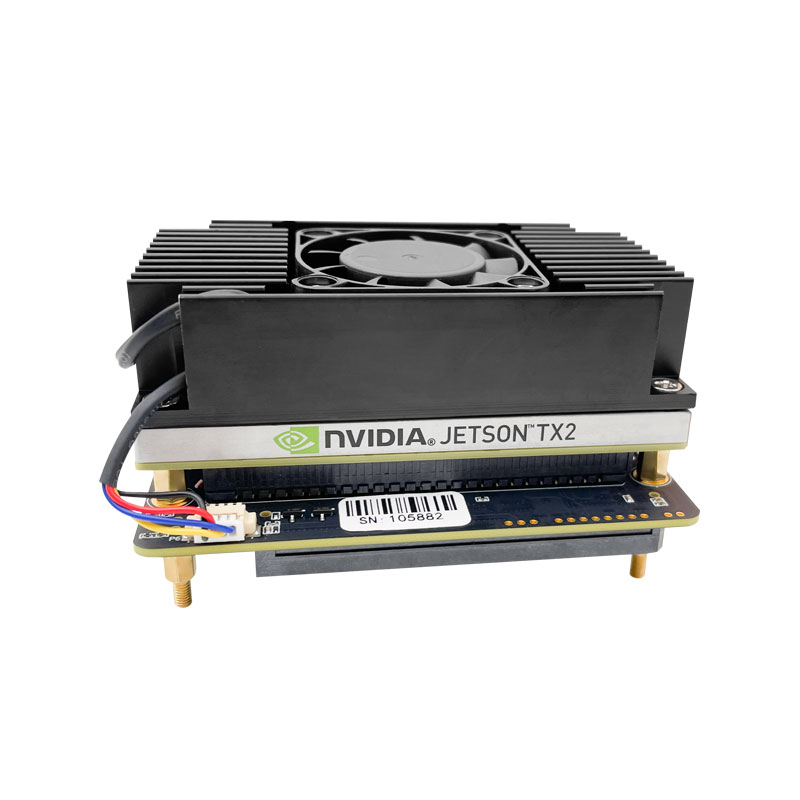

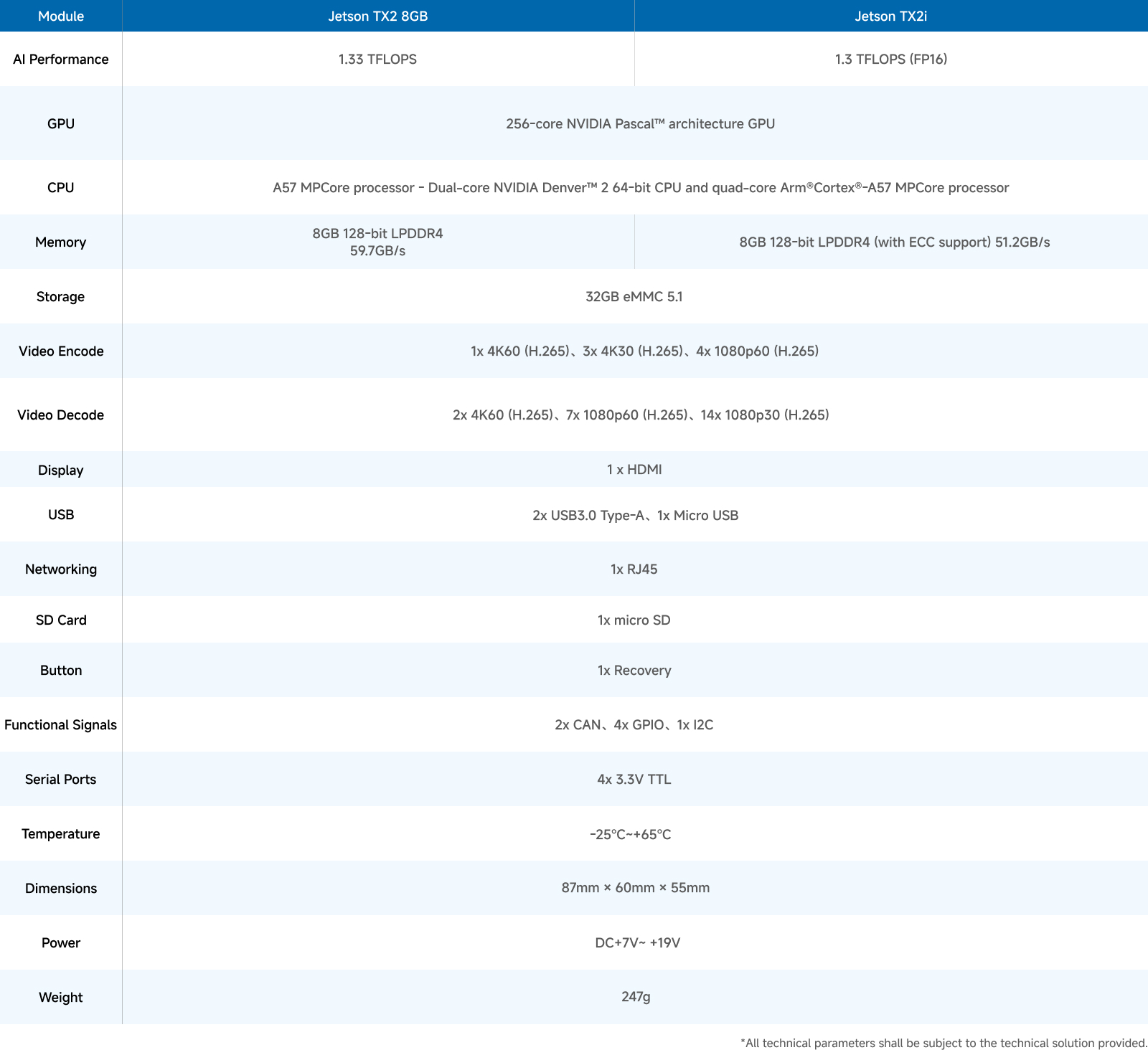

Jetson™ TX2: 1.33 TFLOPS, 8/4GB LPDDR4, 32/16GB eMMC
Jetson™ TX2i: 1.3 TFLOPS, 8GB LPDDR4 (ECC Supported), 32GB eMMC
Display: HDMI

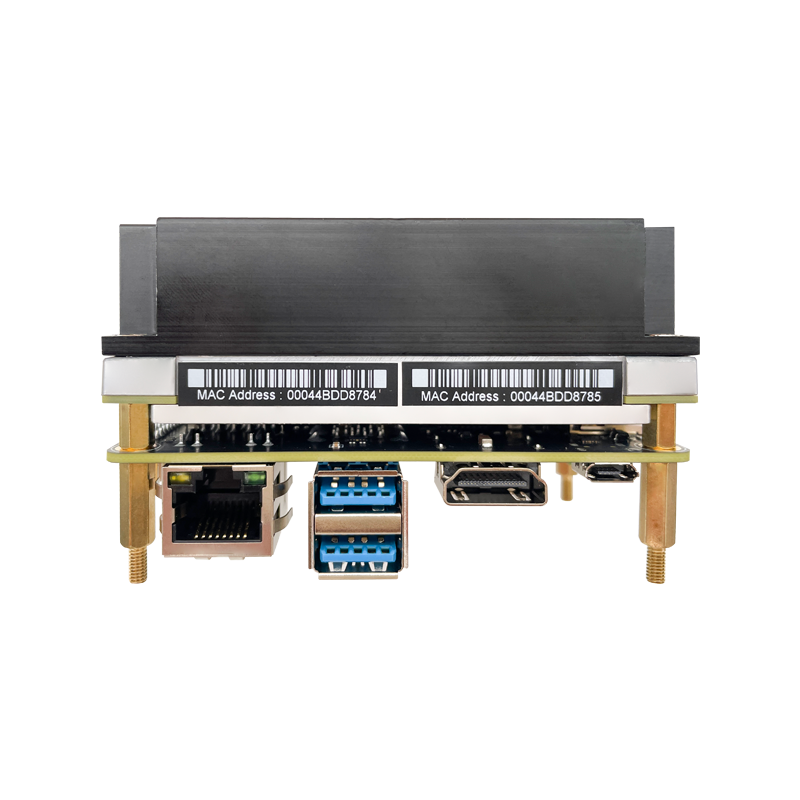

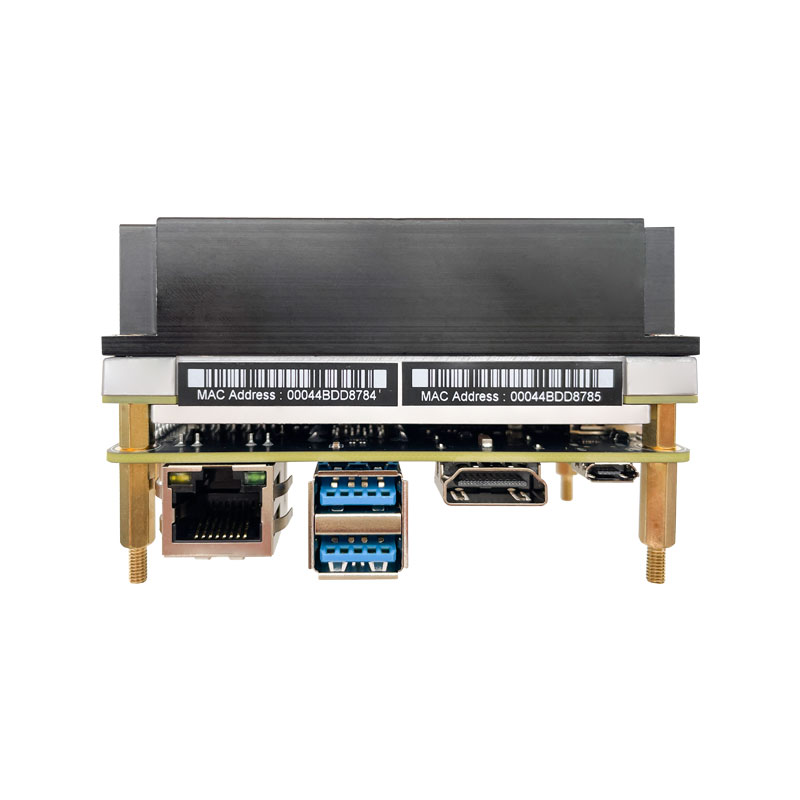

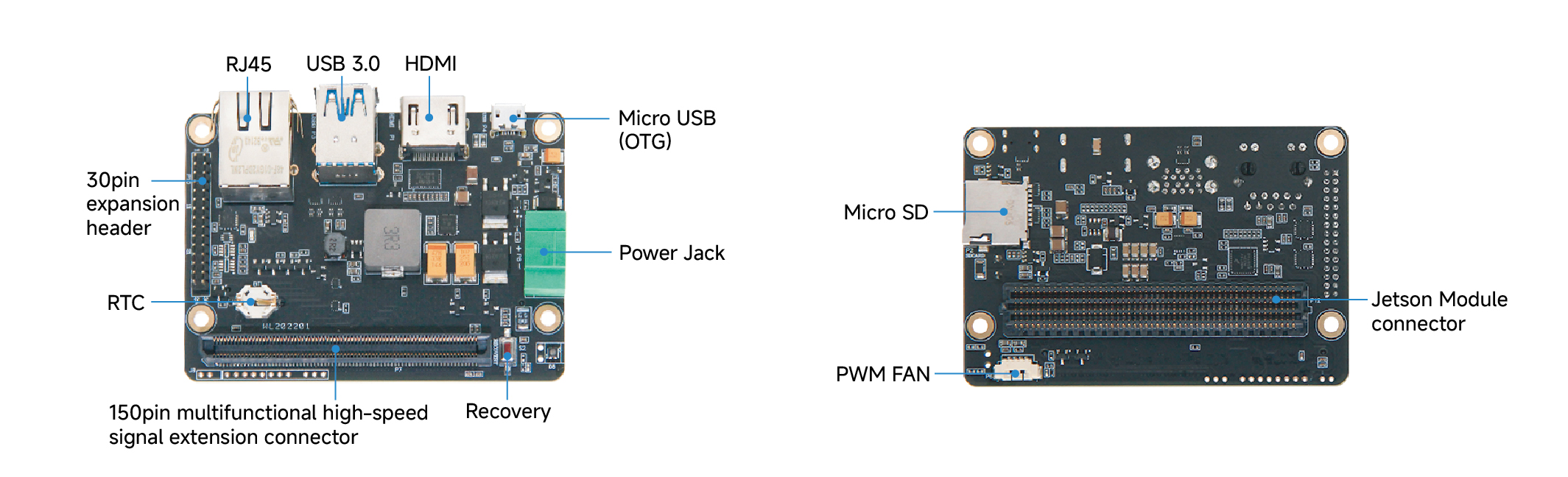

Rich I/O: RJ45, USB3.0 Type-A, Micro USB, Micro SD, RTC, CAN, GPIO, I2C, UART
Operating Temperature: -25℃ ~ +65℃
Input Voltage: DC 7V ~ 19V
Pre-installed Ubuntu
