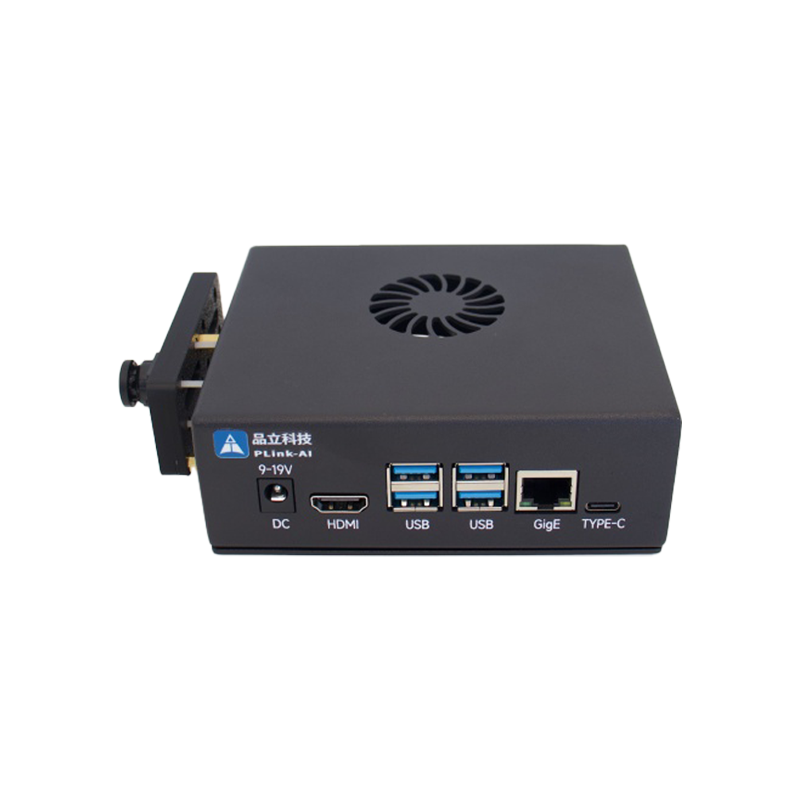

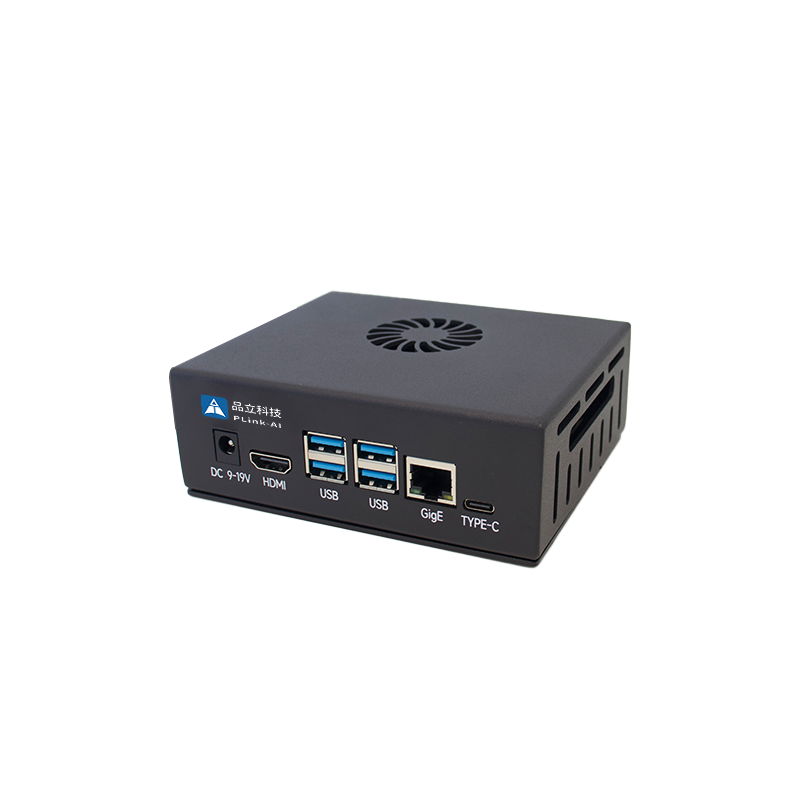

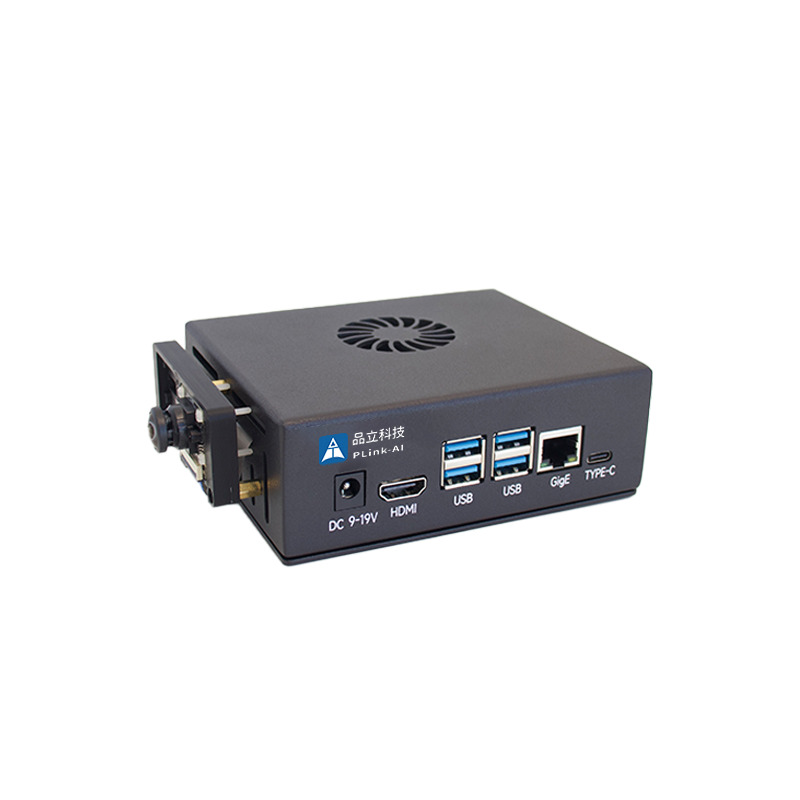

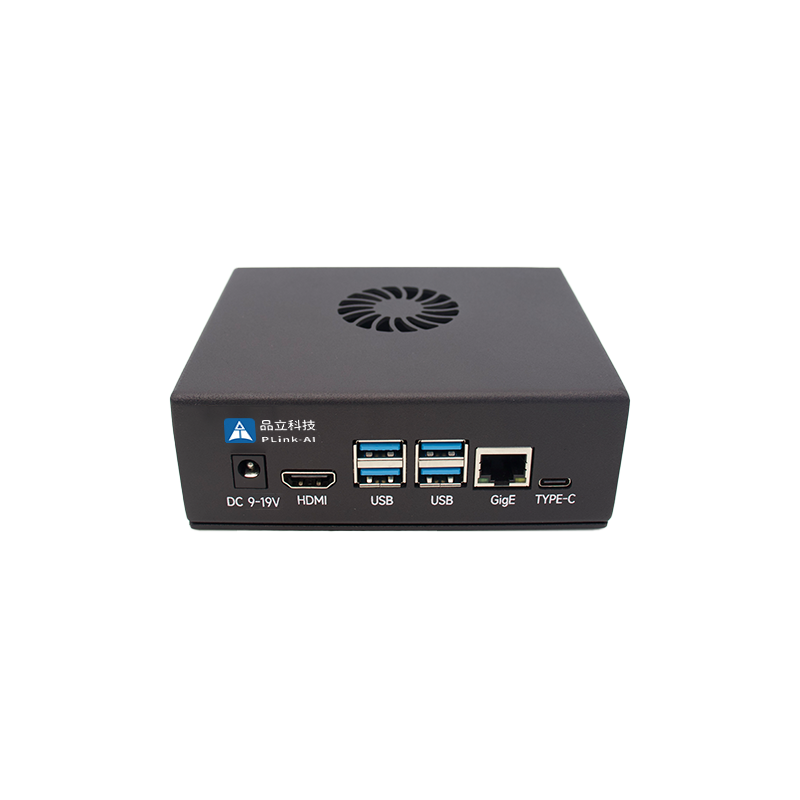

18F1E1

Jetson™ Orin NX:157/117 TOPS,16/8GB LPDDR5

Jetson™ Orin Nano:67/34 TOPS,8/4GB LPDDR5

1xHDMI,4xUSB Type-A,1xRJ45

Expansion: Built-in 1x M.2 E 2230, 2x M.2 M(2230/2280)

Operating Temperature:-25℃~+60℃

Pre-installed Ubuntu

Overview

Powered by the NVIDIA Jetson Orin NX/Orin Nano system-on-module,the 18F1E1 is a compact, high-performance edge AI computing platform for advanced AI deployment. It offers scalable AI performance with 34/67/117/157 TOPS multi-grade configurations, flexible enough to fit diverse scenario needs.

At an ultra-small 125mm × 105mm × 45mm size, it supports local model deployment and efficient AI inference, empowering developers, students and makers to quickly build innovative AI applications: mobile robotics, intelligent vision and multi-modal interaction.

Loaded with HDMI, RJ45 Ethernet and USB Type-A ports, it enables seamless multi-device coordination, real-time data processing and large local data storage. It delivers a stable, efficient hardware base for fast, reliable edge AI algorithm deployment.

Ideal for core edge AI use cases: medical imaging, industrial quality inspection, intelligent inspection and mobile autonomous robots.

Applications
18F1E1 18F1E1

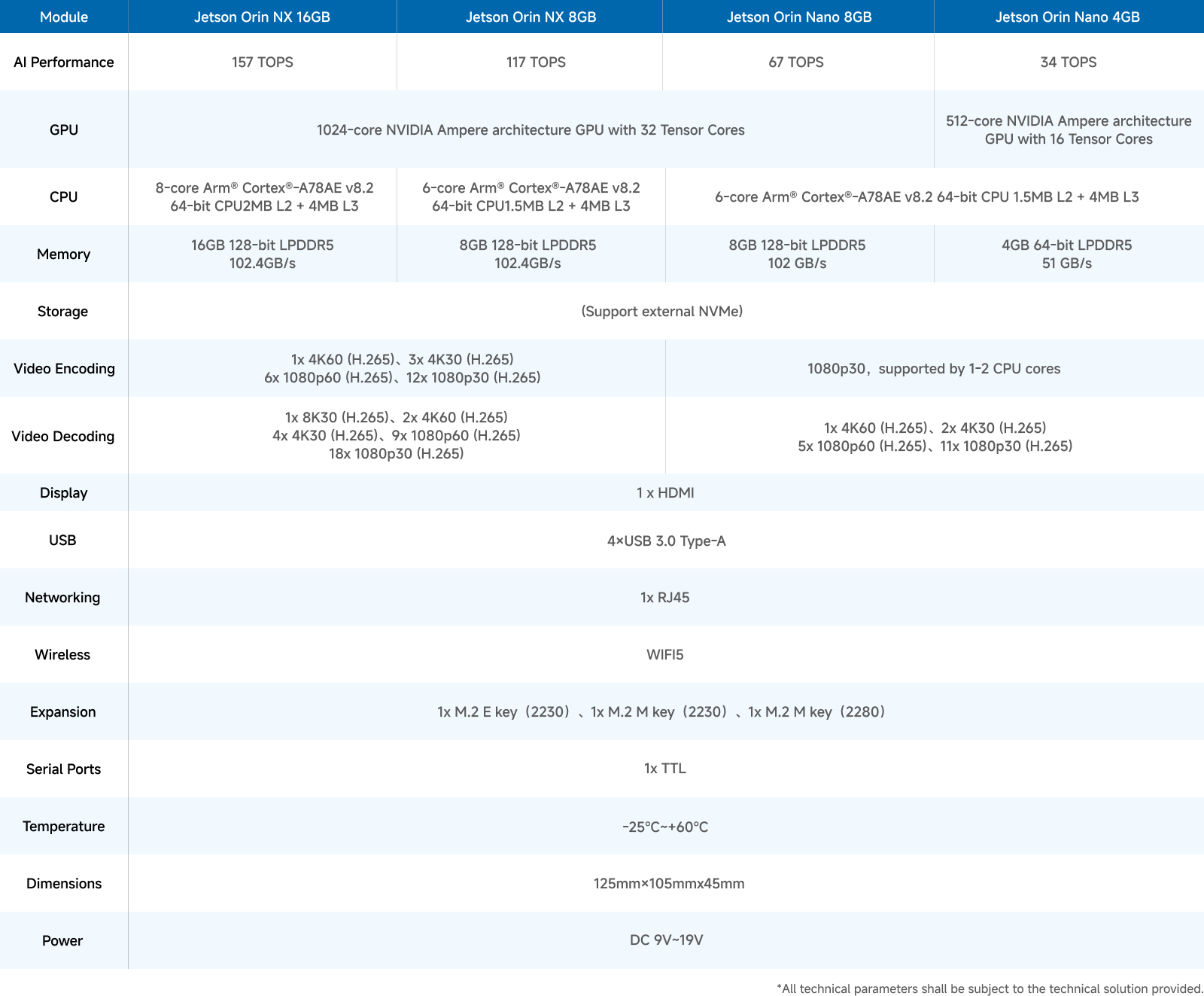

Specifications
18F1E1

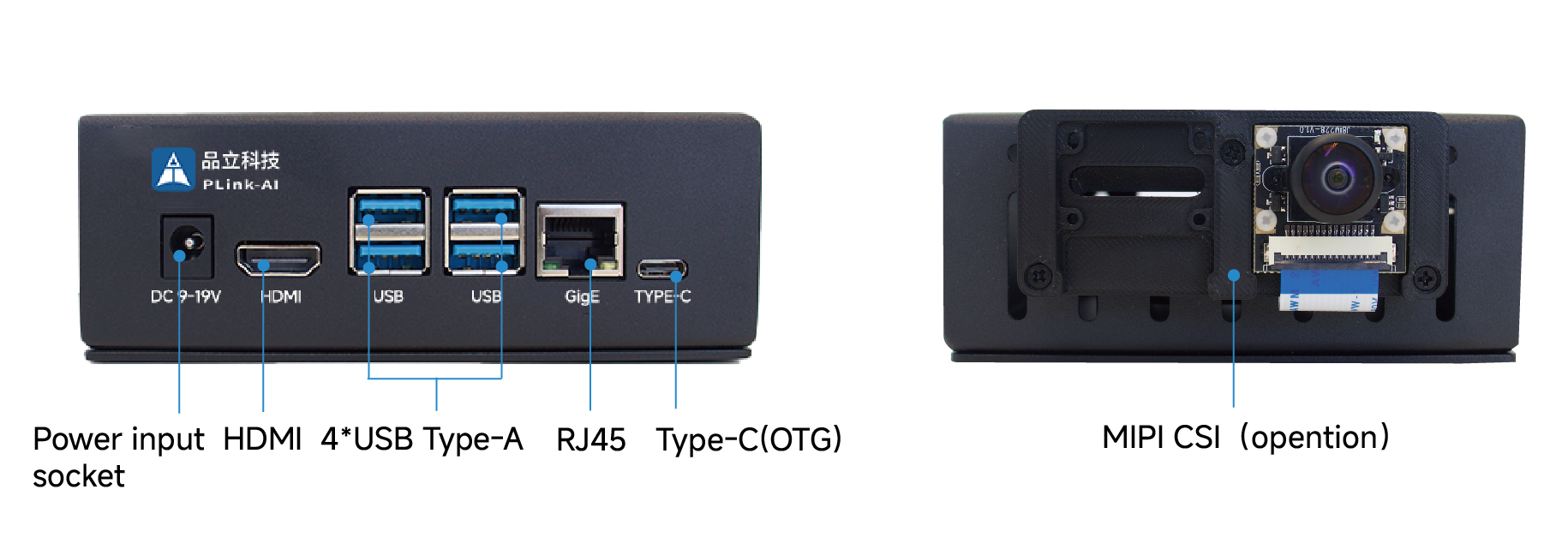

Interfaces
18F1E1

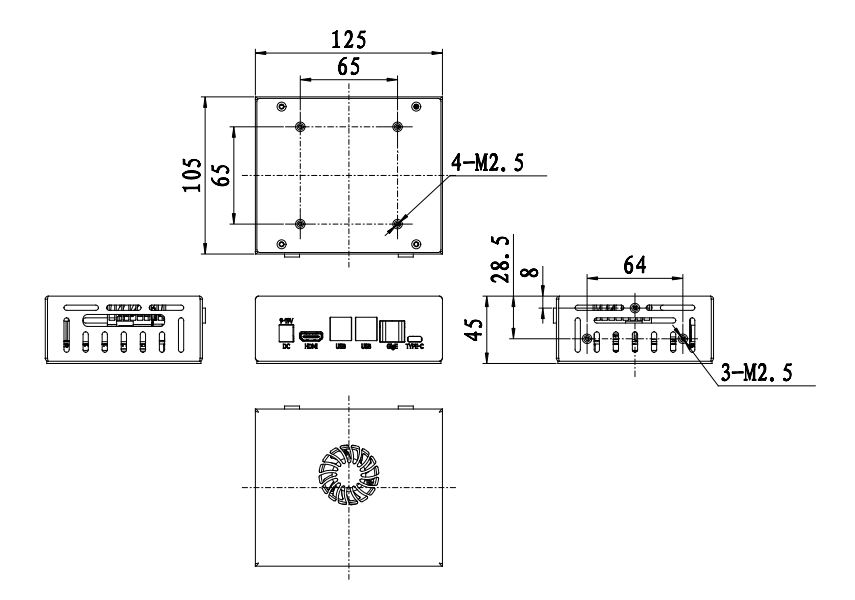

Dimensions
18F1E1
