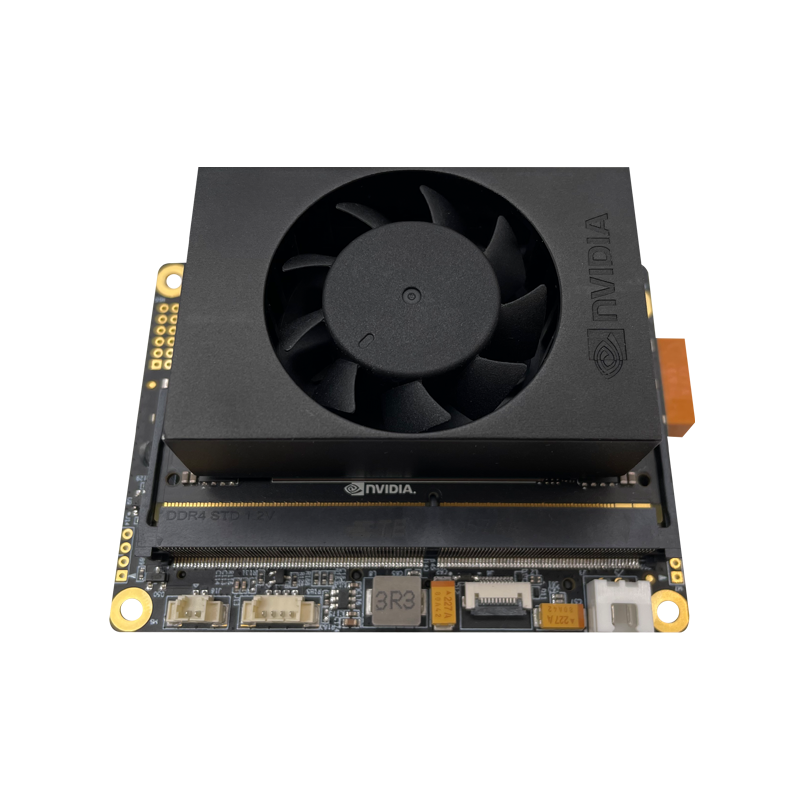

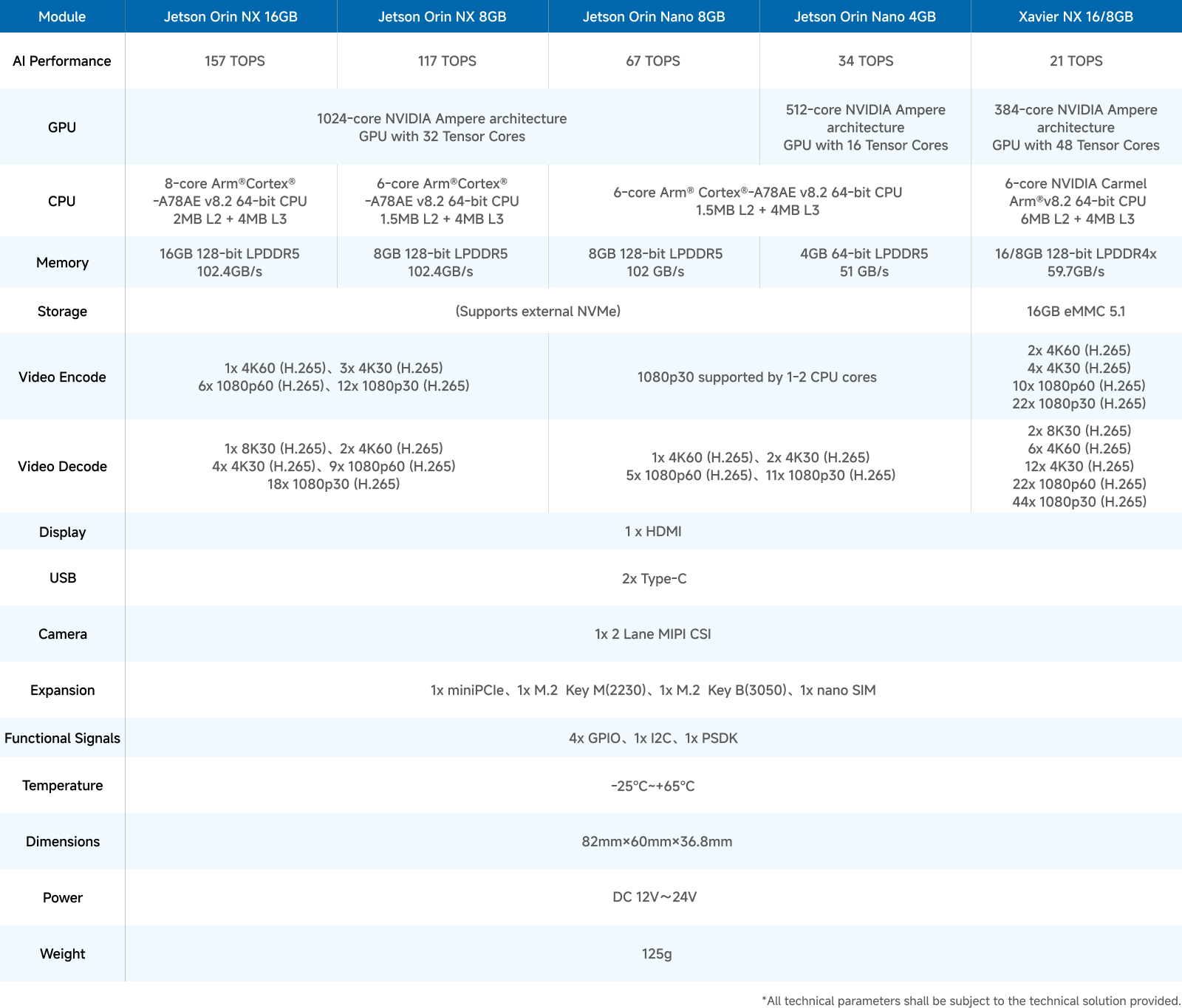

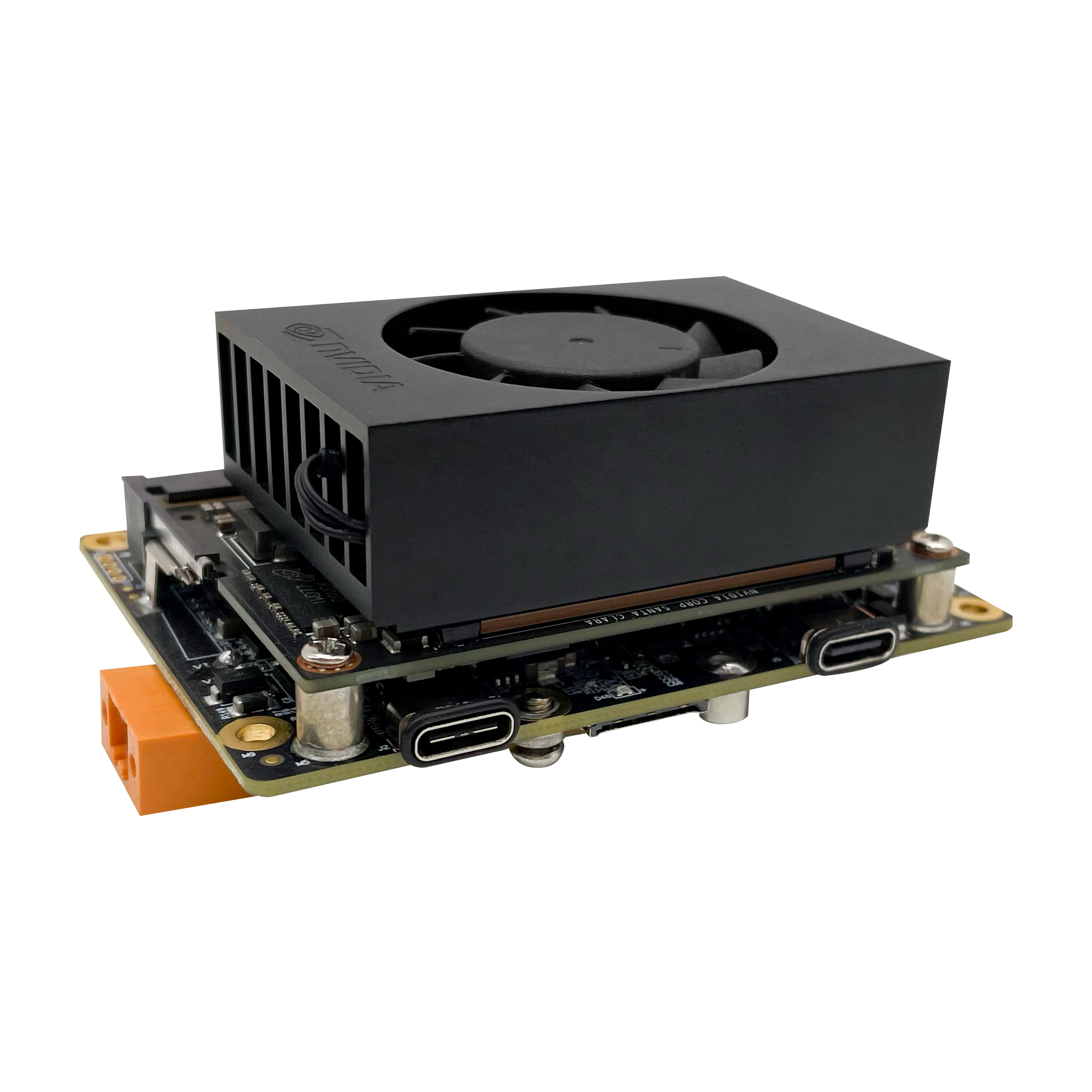

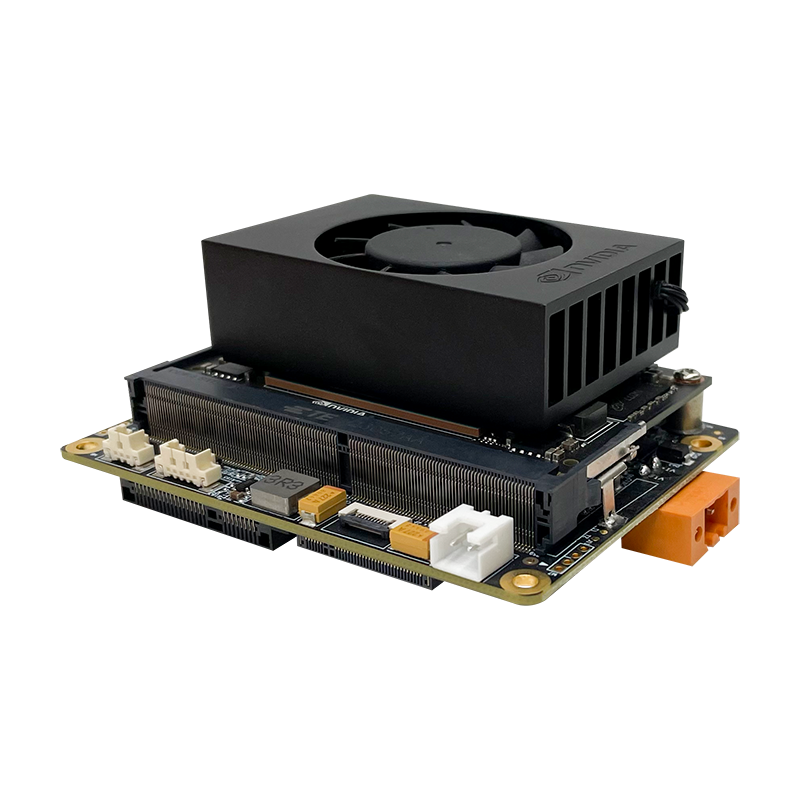

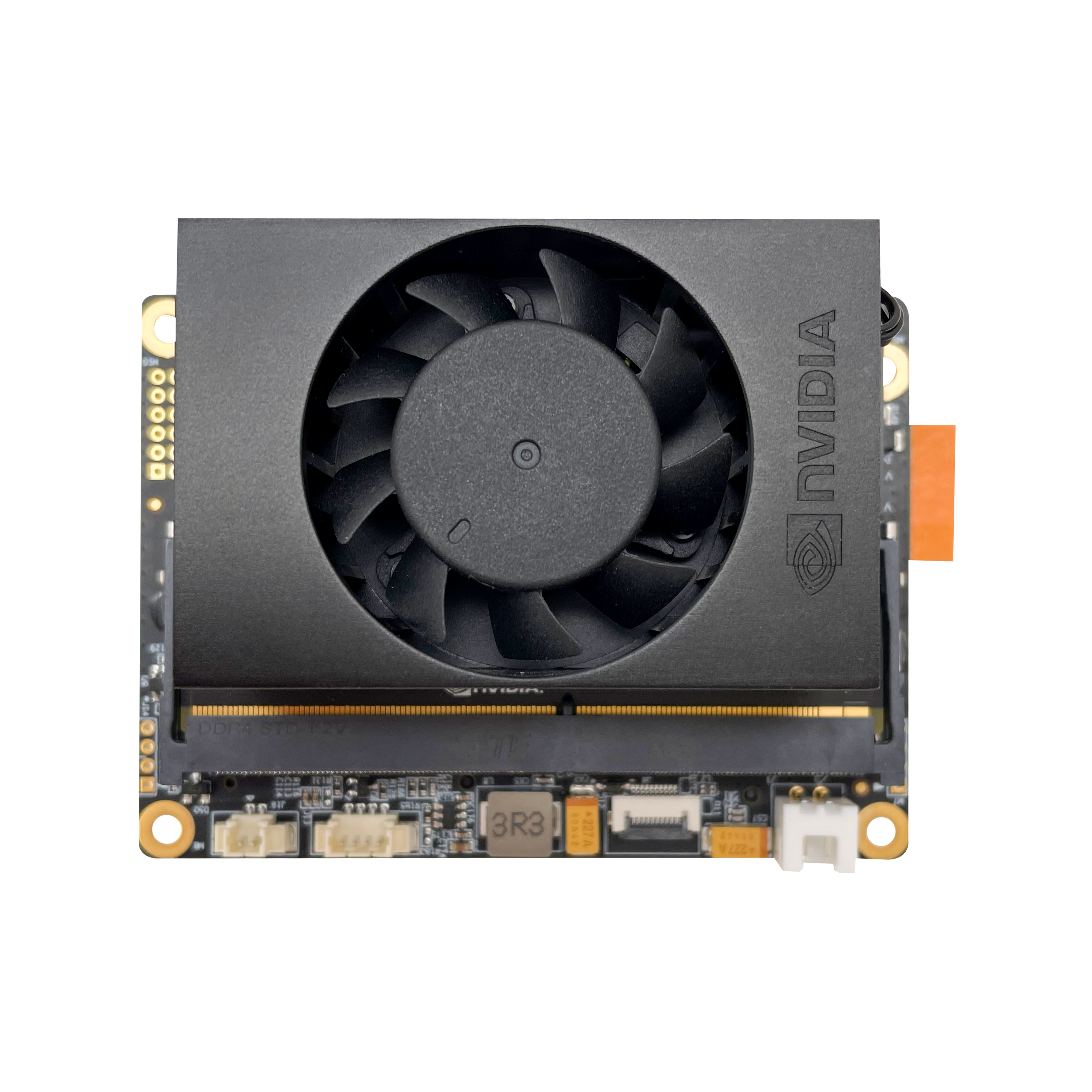

Y-C17-DEV is an edge AI computing development kit powered by NVIDIA® Jetson™ Orin NX/Orin Nano/Xavier NX system-on-modules, offering scalable AI performance from 21 TOPS to 157 TOPS. With a compact dimension of 82mm × 60mm × 36.8mm, it is well-suited for drone AI applications including power line inspection, agricultural monitoring, smart warehousing and logistics delivery, providing highly compatible computing hardware to accelerate AI application development and deployment.
The kit adopts an industrial-grade high-reliability design with triple protection: ESD, over-voltage and reverse polarity protection. All components are wide-temperature rated to ensure stable operation in harsh environments. It supports the PSDK interface for drone payload development and is equipped with miniPCIe, M.2 M-Key and M.2 B-Key slots for flexible expansion of multi-channel Gigabit Ethernet, USB 3.0, high-capacity storage, 5G communication, video capture and multi-serial modules.
