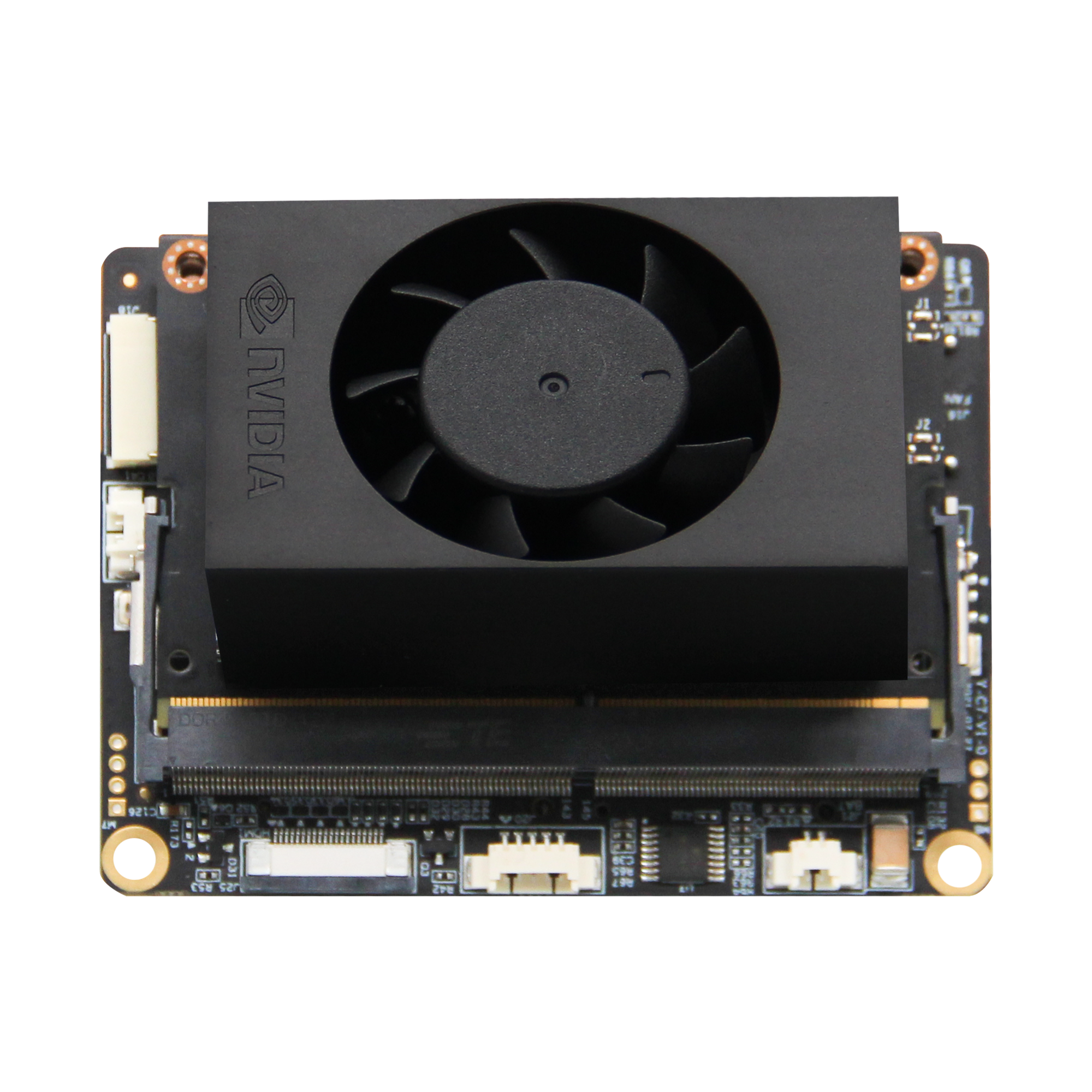

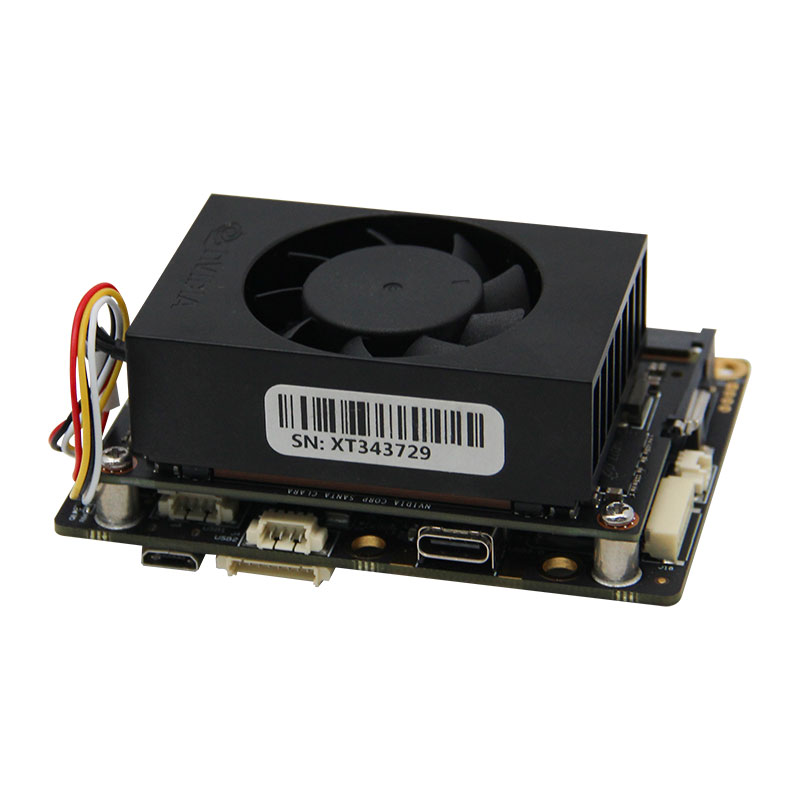

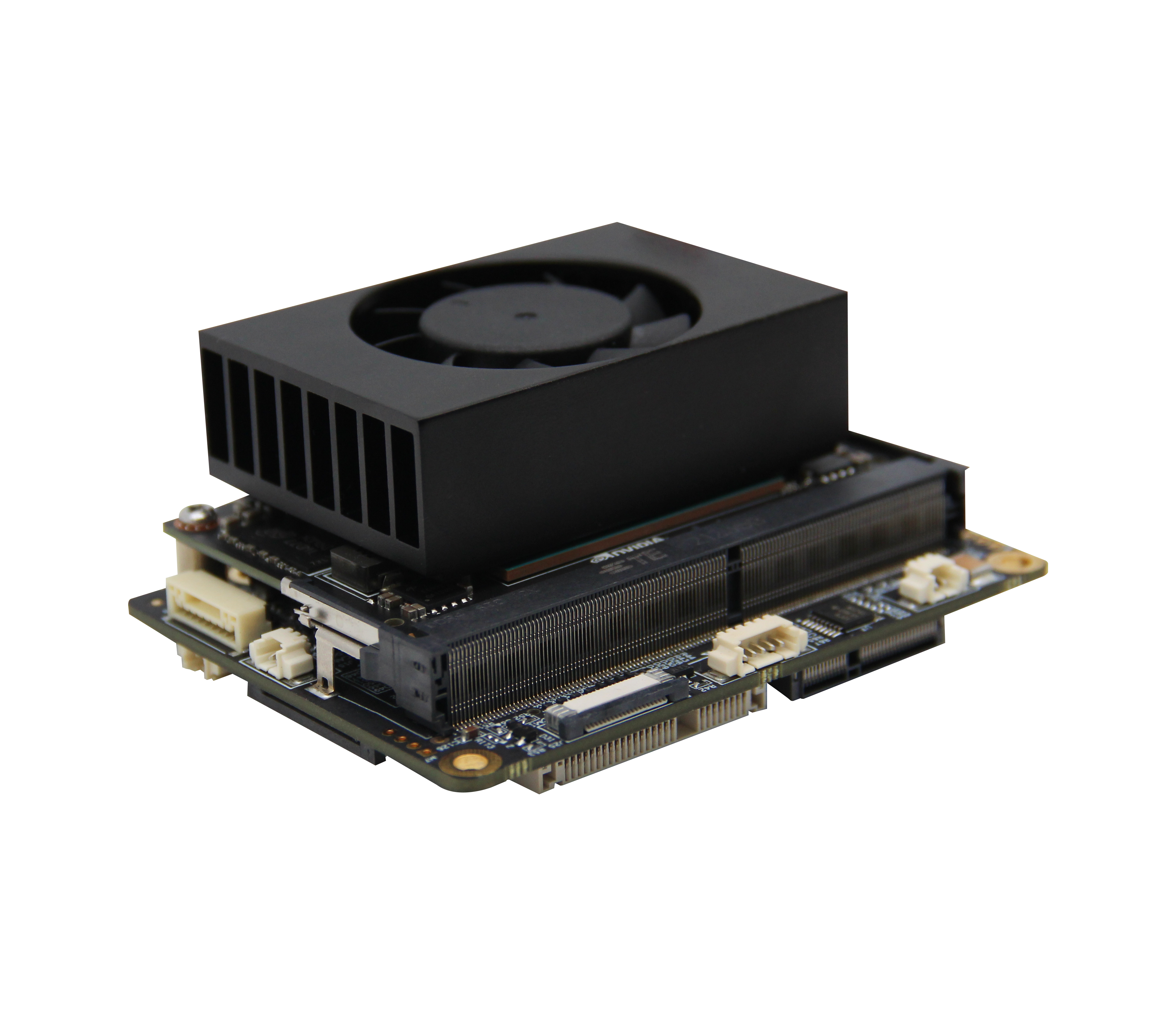

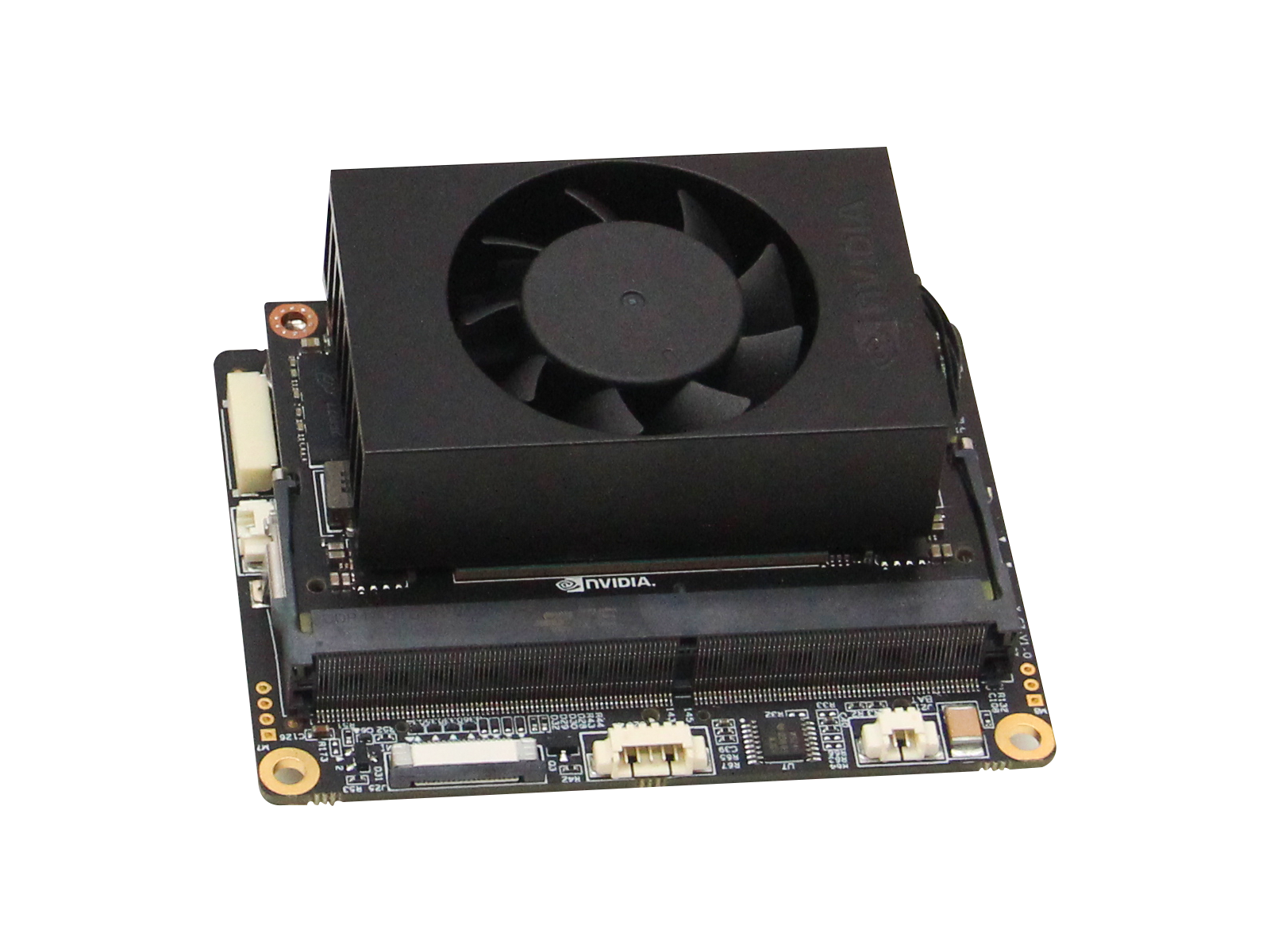

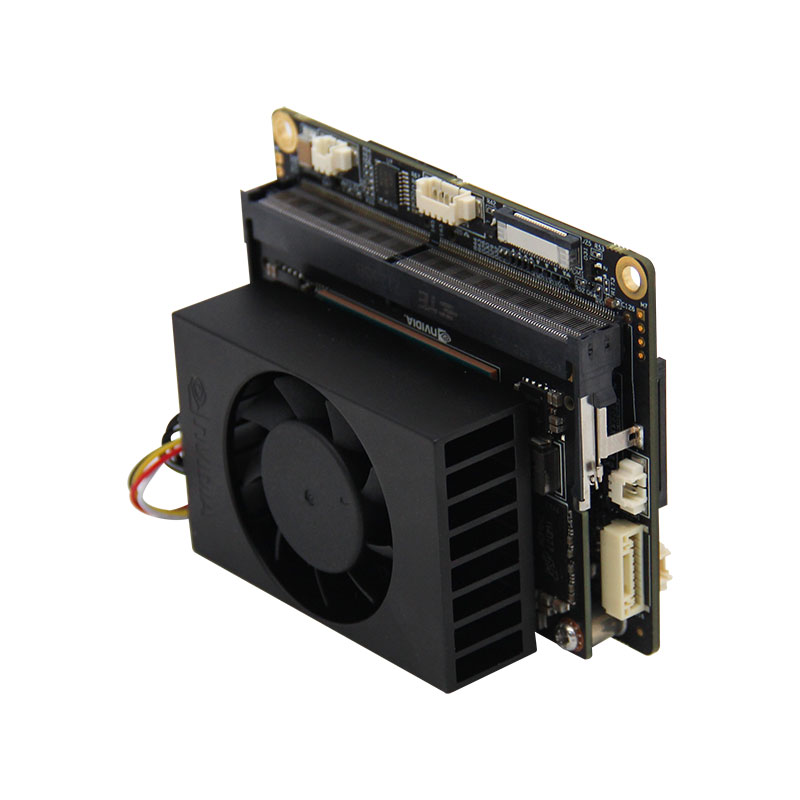

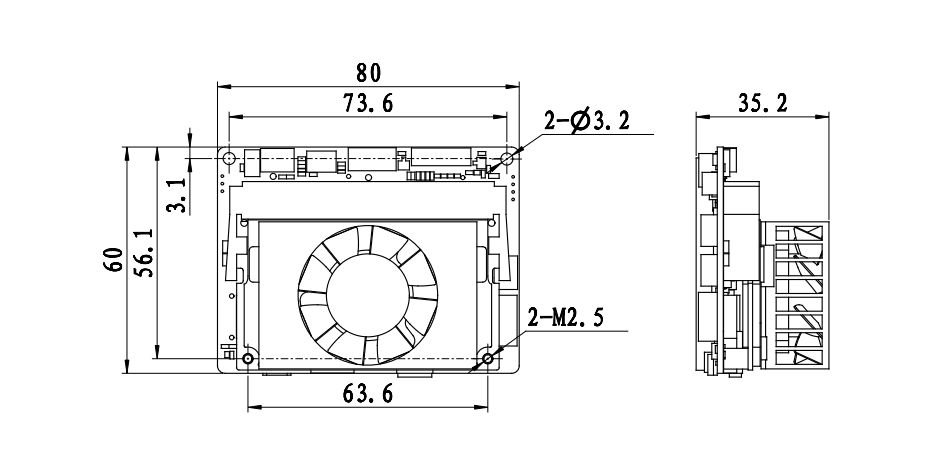

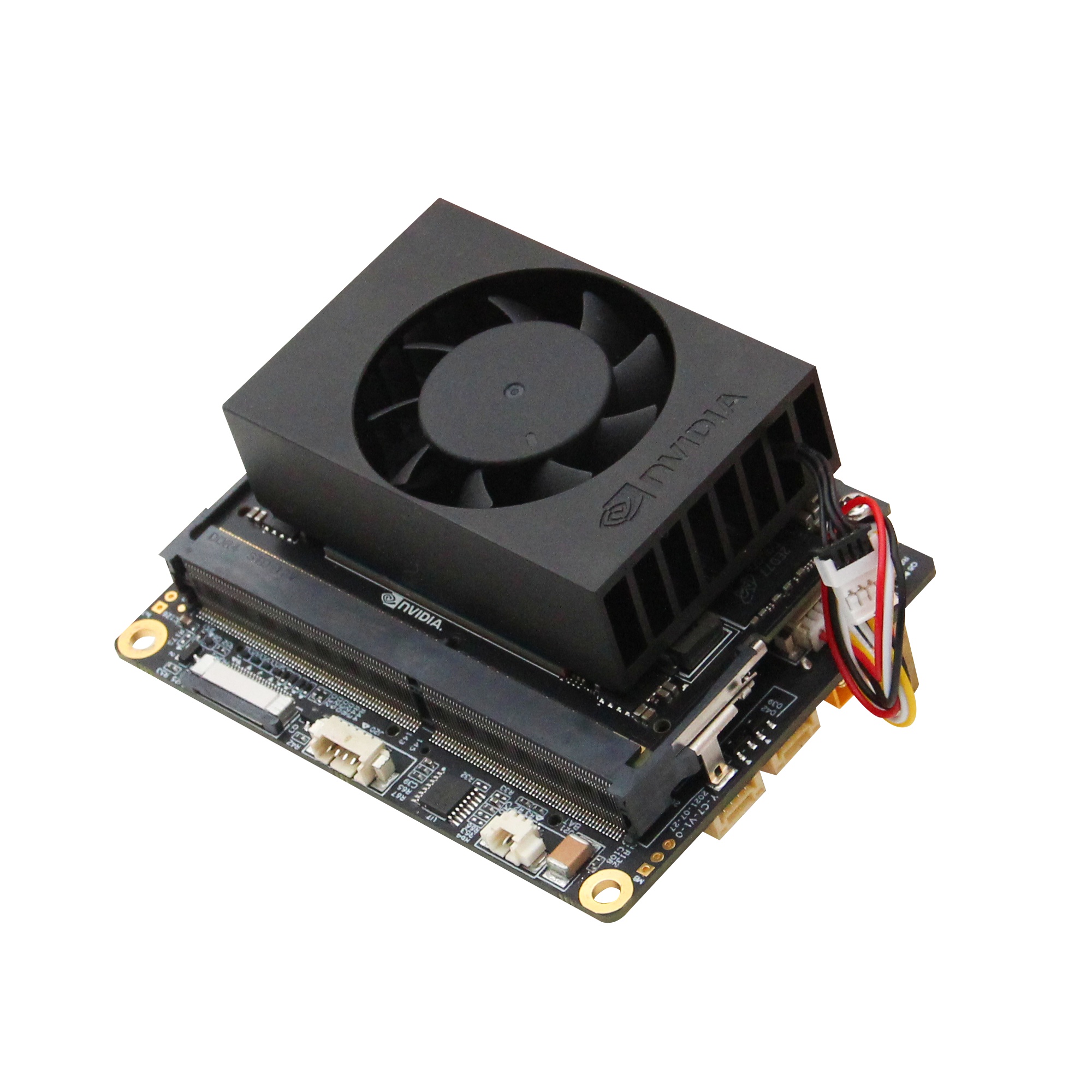

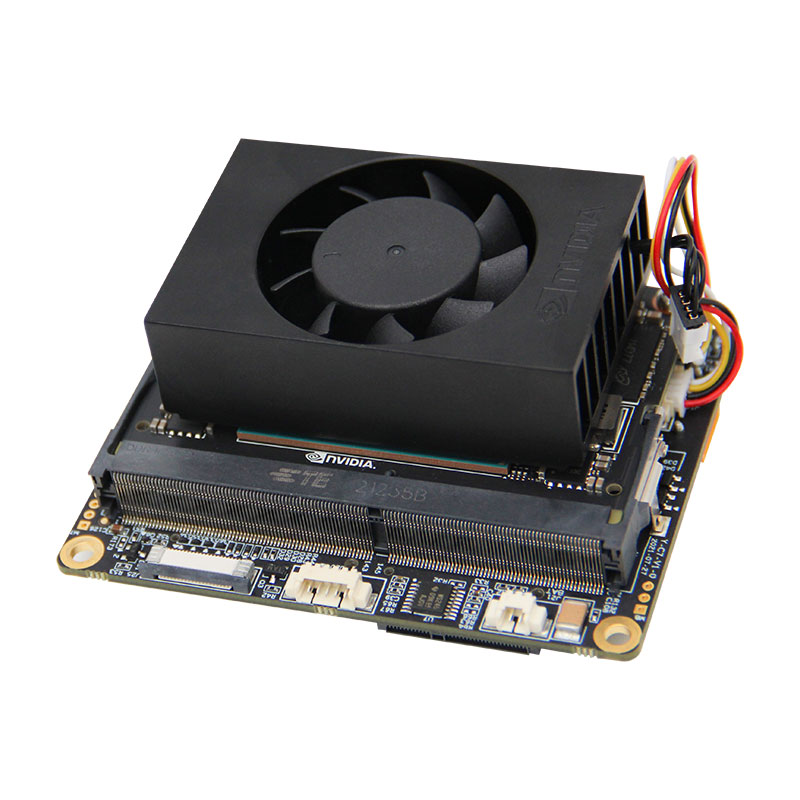

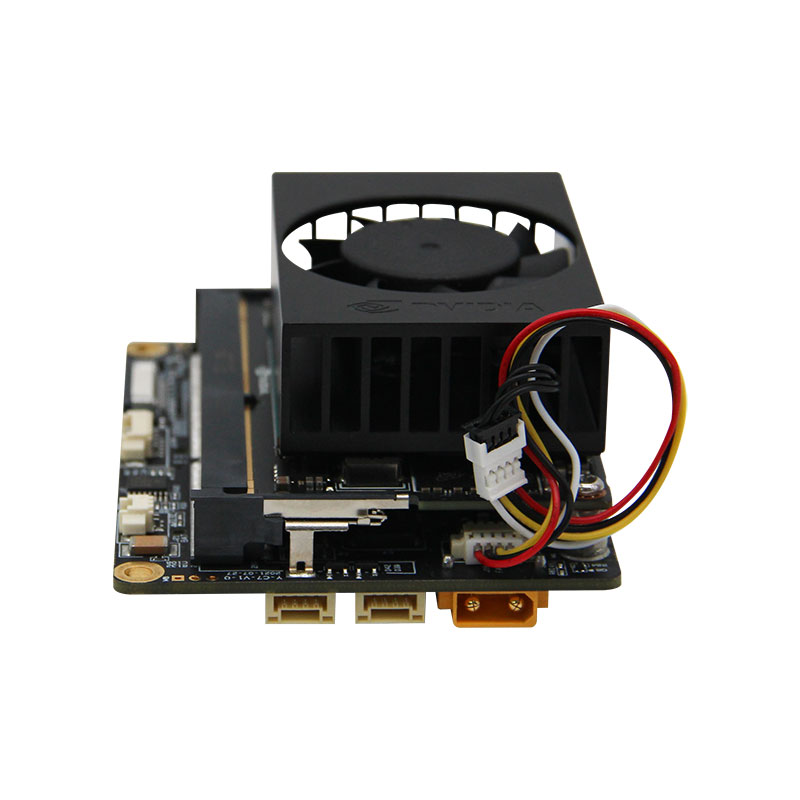

Y-C7-DEV is an industrial-grade edge AI computing development kit supporting NVIDIA® Jetson™ Nano/TX2 NX/Xavier NX/Orin Nano/Orin NX system-on-modules, offering graded AI performance from 0.5 TFLOPS to 117 TOPS. With a compact size of 80mm × 60mm × 35.2mm, it features low cost, small size and high integration, ideal for drone inspection, environmental perception, emergency rescue and logistics delivery.The kit uses flexible cable interfaces with stress relief structure to improve anti-vibration stability during flight. It supports MIPI CSI and multiple video formats including CVBS, SDI and HDMI. miniPCIe and M.2 E-Key slots enable modular function expansion and customization.
Y-C7-DEV

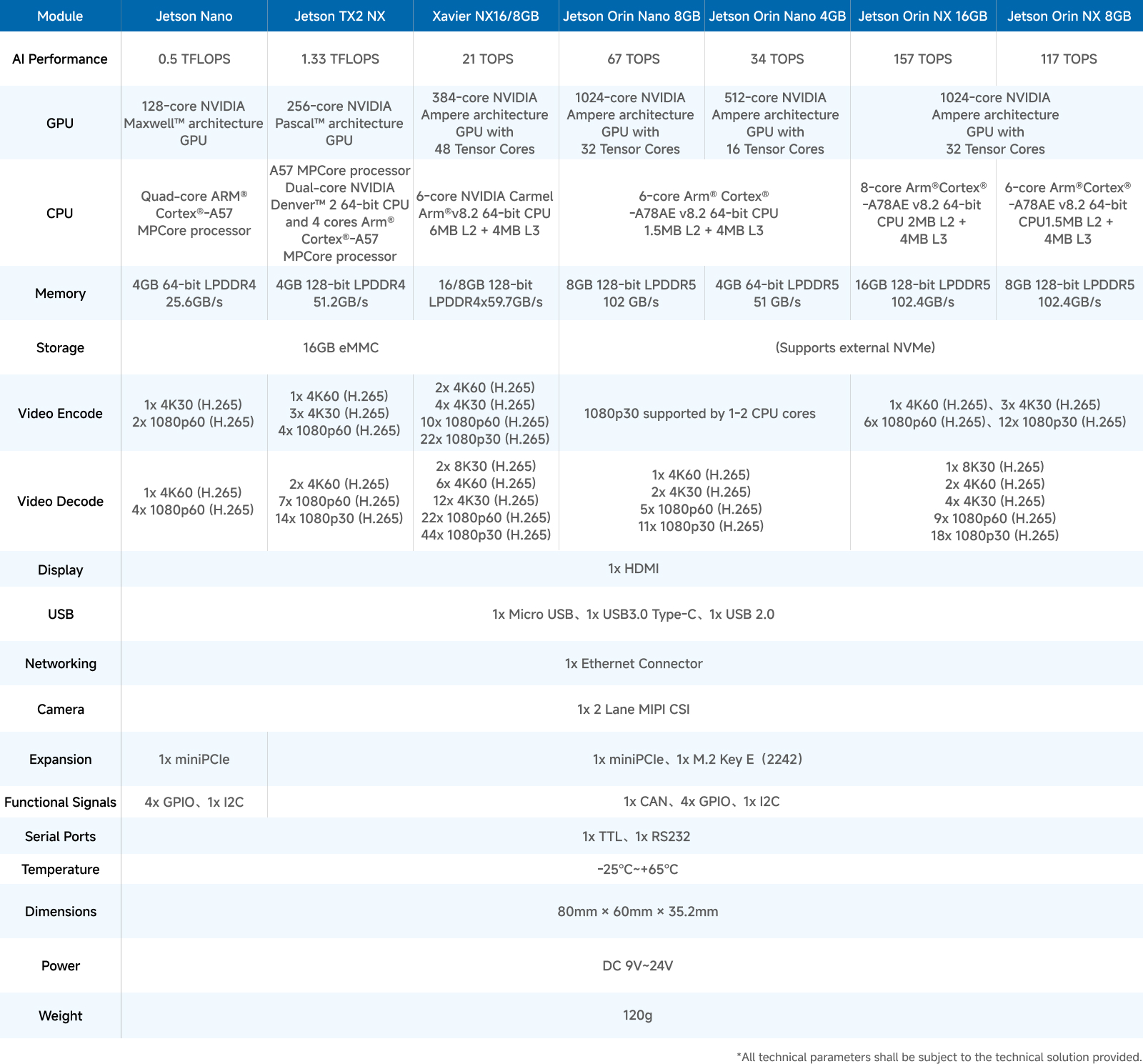

Jetson™ Orin NX: 157/117 TOPS, 16/8GB LPDDR5
Jetson™ Orin Nano: 67/34 TOPS, 8/4GB LPDDR5
Jetson™ Xavier NX: 21 TOPS, 16/8GB LPDDR4x, 16GB eMMC
Jetson™ TX2 NX: 1.33 TFLOPS, 4GB LPDDR4, 16GB eMMC
Jetson™ Nano: 0.5 TFLOPS, 4GB LPDDR4, 16GB eMMC
Display: HDMI

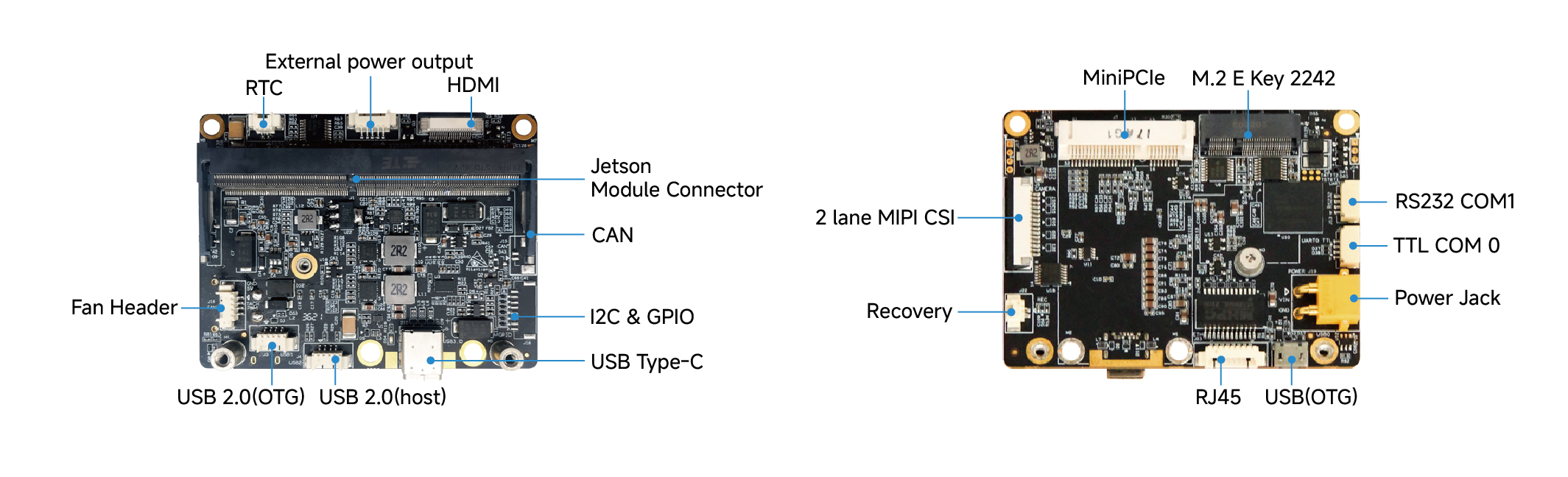

Rich I/O: USB3.0 Type-C, Micro USB, USB2.0, RTC, GPIO, RS232
Expansion Slots: miniPCIe, M.2 E 2242
Camera: 1× 2-Lane MIPI CSI
Operating Temperature: -25℃ ~ +65℃
Input Voltage: DC 9V ~ 24V
Pre-installed Ubuntu
