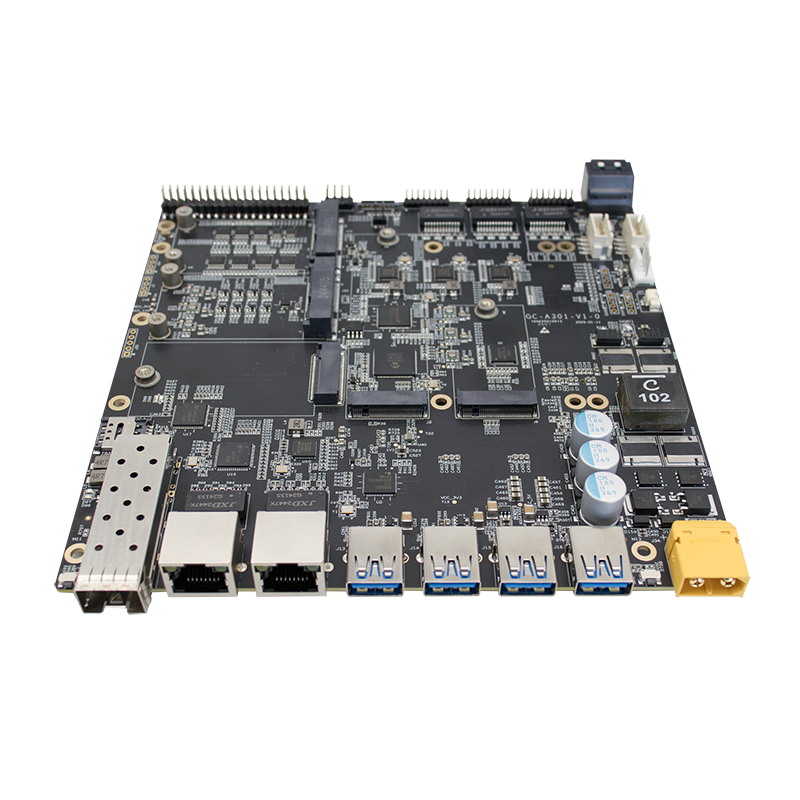

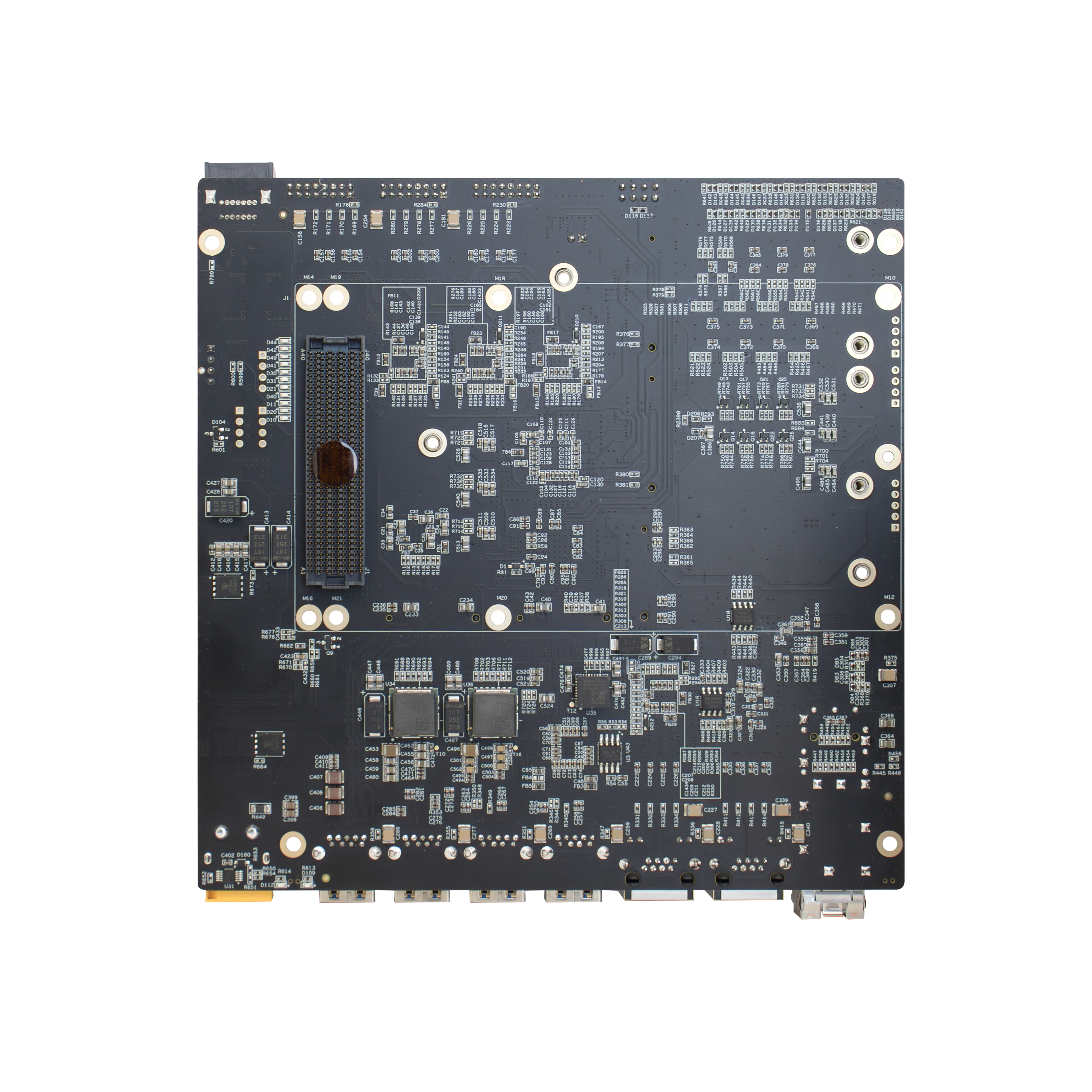

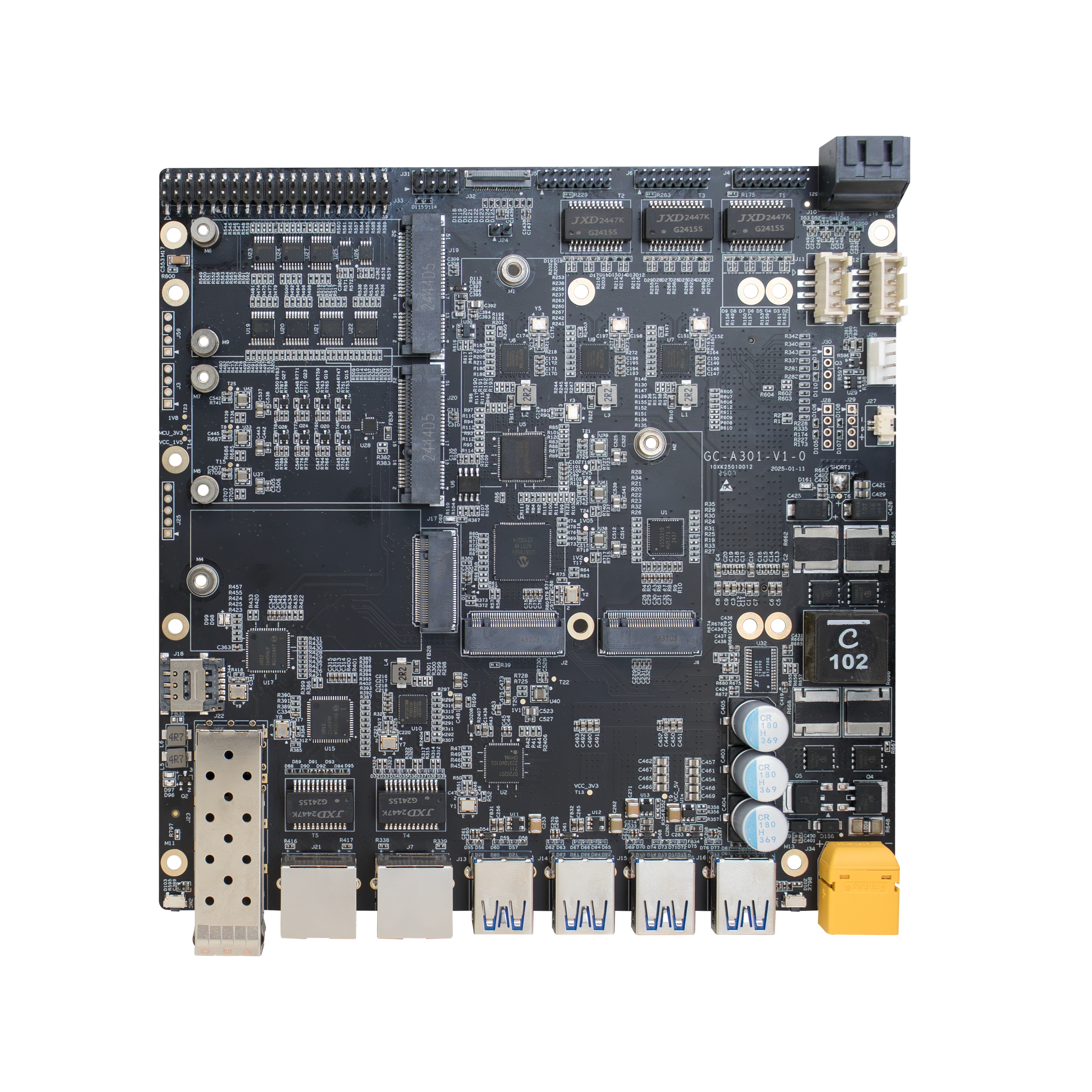

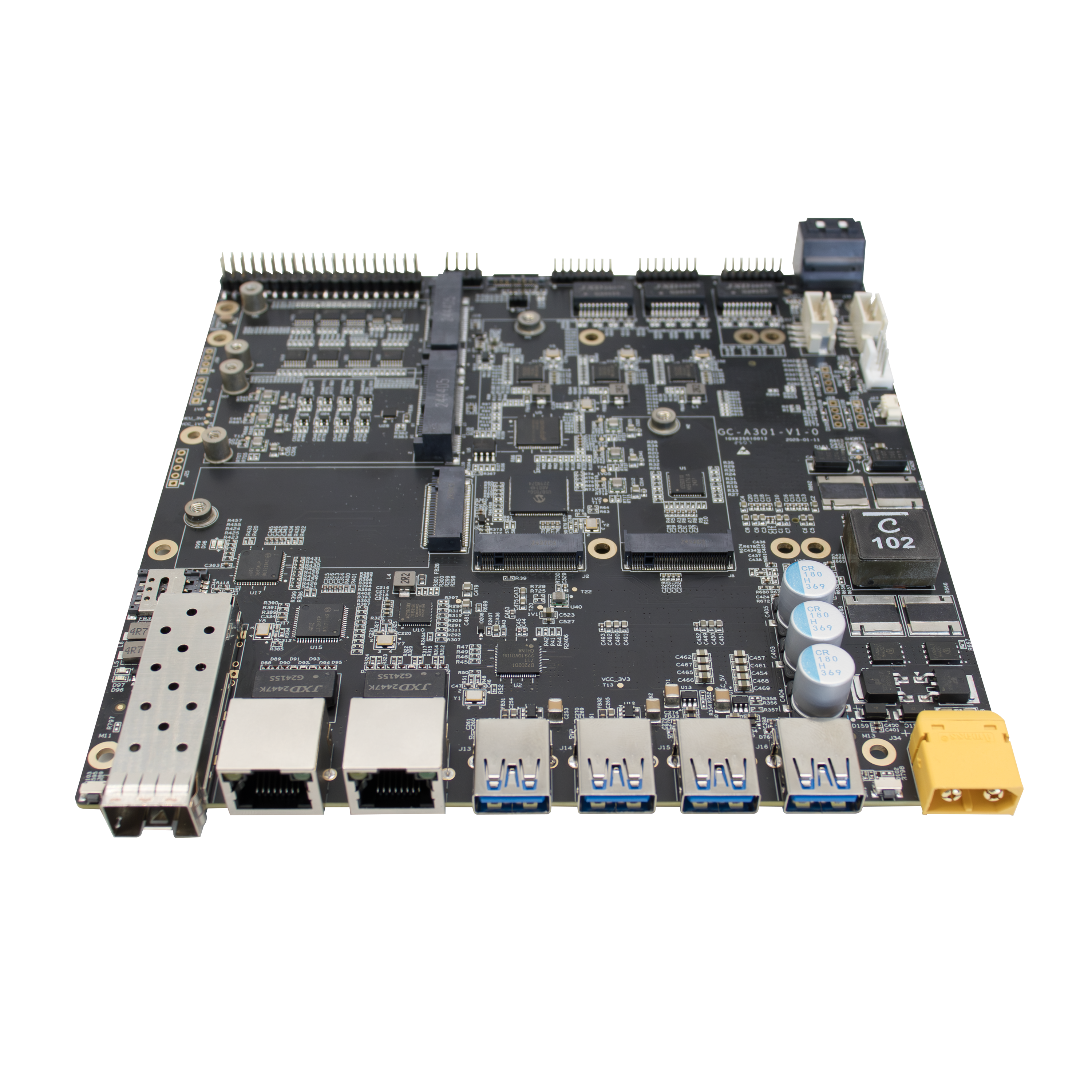

GC-A301

Based on Ascend 310P processor

Display Interface: 1 × HDMI (Optional)

Rich I/O Interfaces:4 × USB3.0 Type-A, 2 × RJ45, 1 × FC

Expansion Slots: 2 × miniPCIe, 1 × M.2 M-Key 2280/2242, 1 × M.2 B-Key 3050, 1 × Nano SIM, 2 × SATA power interfaces

Operating Temperature: -40℃ ~ +85℃

Input Voltage: DC 9V ~ 36V

Overview

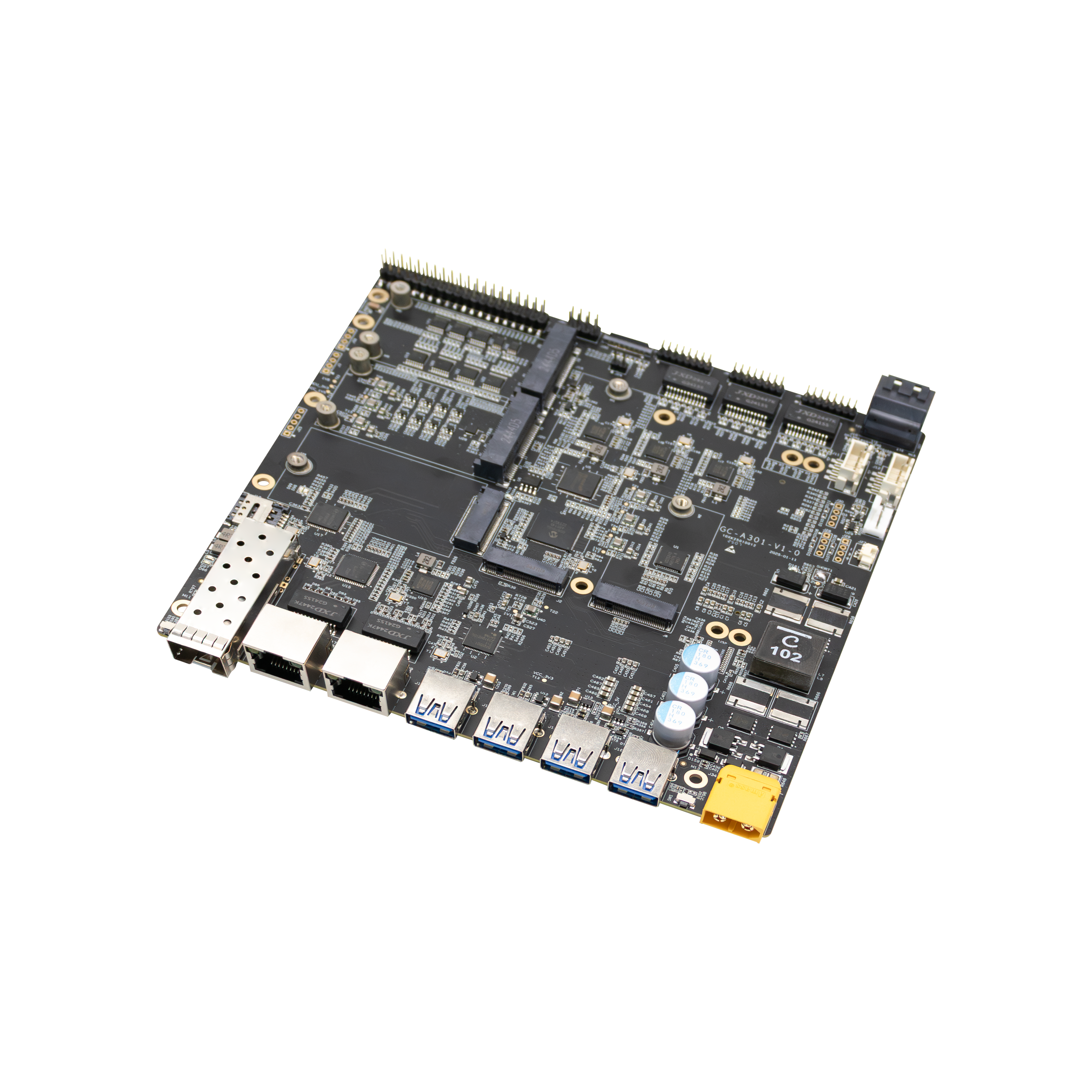

GC-A301 is an industrial-grade development board specifically designed for edge AI scenarios. Its core is equipped with the Ascend 310P processor, delivering up to 176 TOPS INT8 of AI compute, which meets the performance requirements for real-time AI inference in fields such as industrial quality inspection, autonomous driving, intelligent transportation, and intelligent healthcare.

To ensure stable operation in complex environments, this board uses wide-temperature components, and all interfaces have been designed with electrostatic safety protection. It also adopts a high-reliability power supply solution and features input overvoltage and reverse polarity protection functions.

Applications
GC-A301 GC-A301

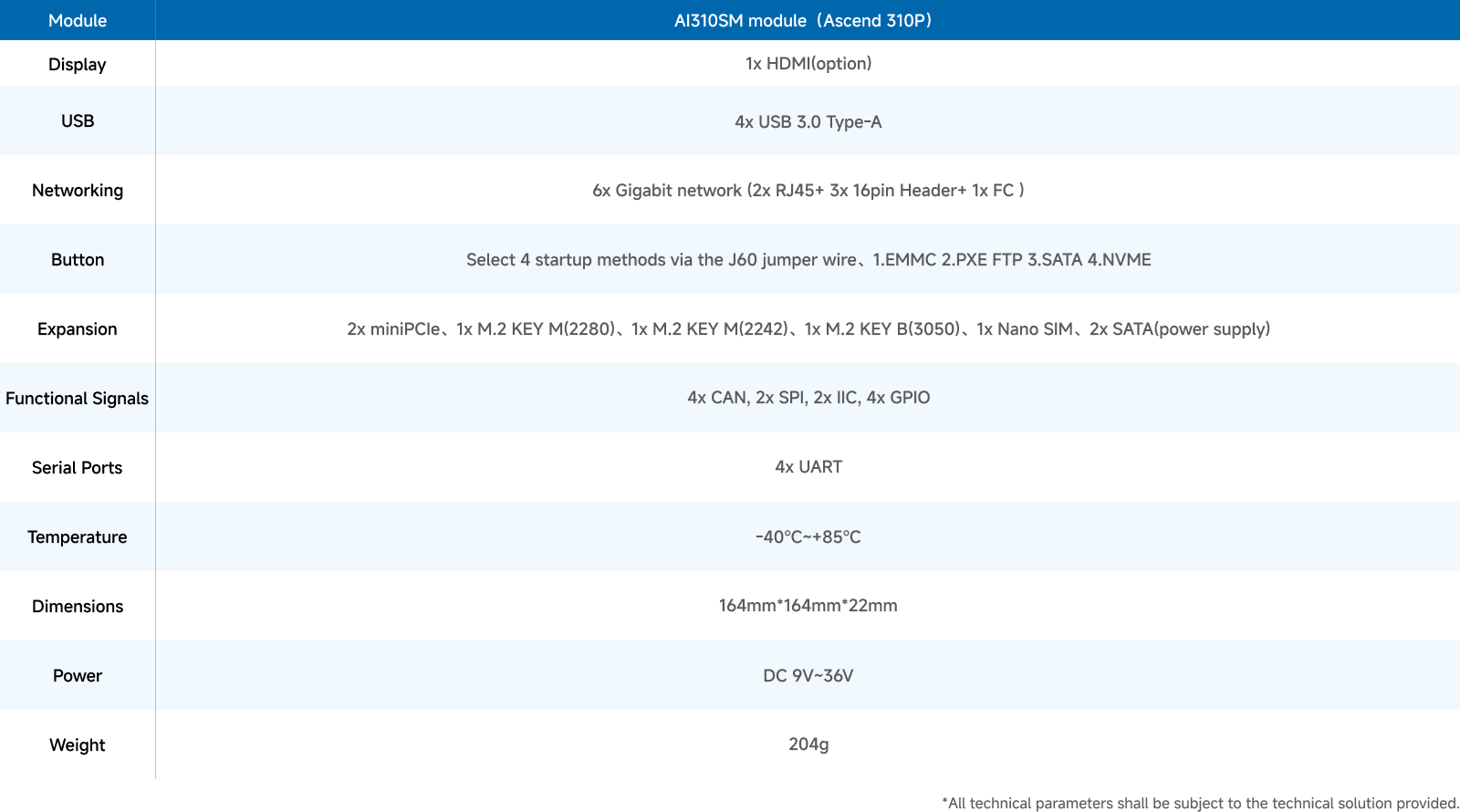

Specifications
GC-A301

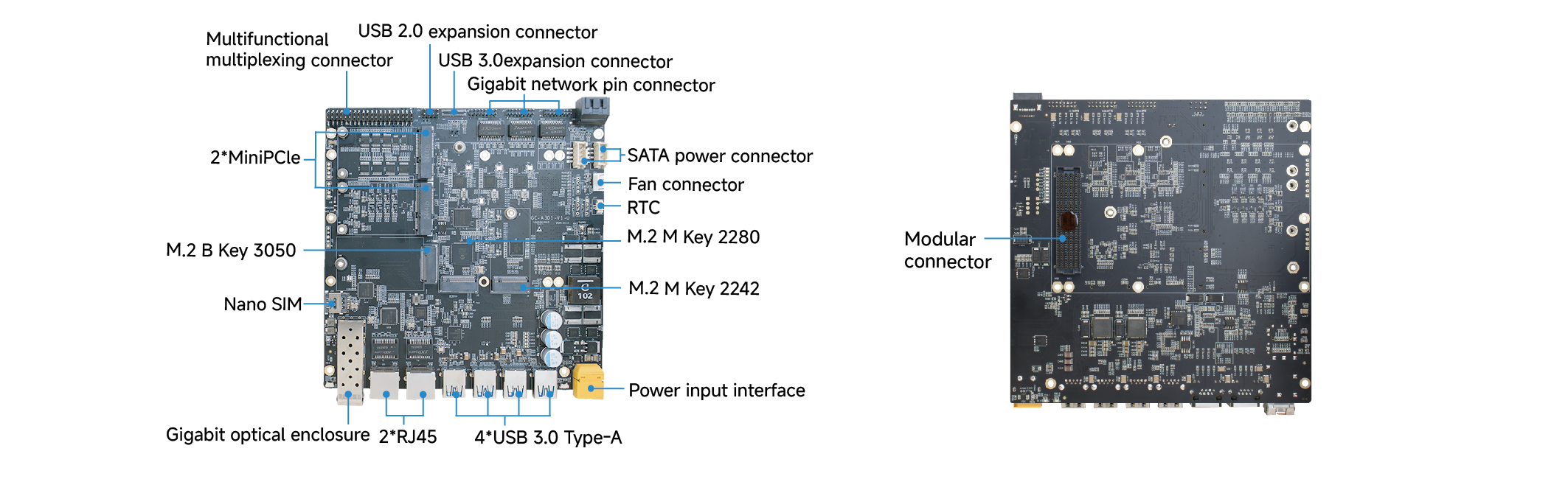

Interfaces
GC-A301

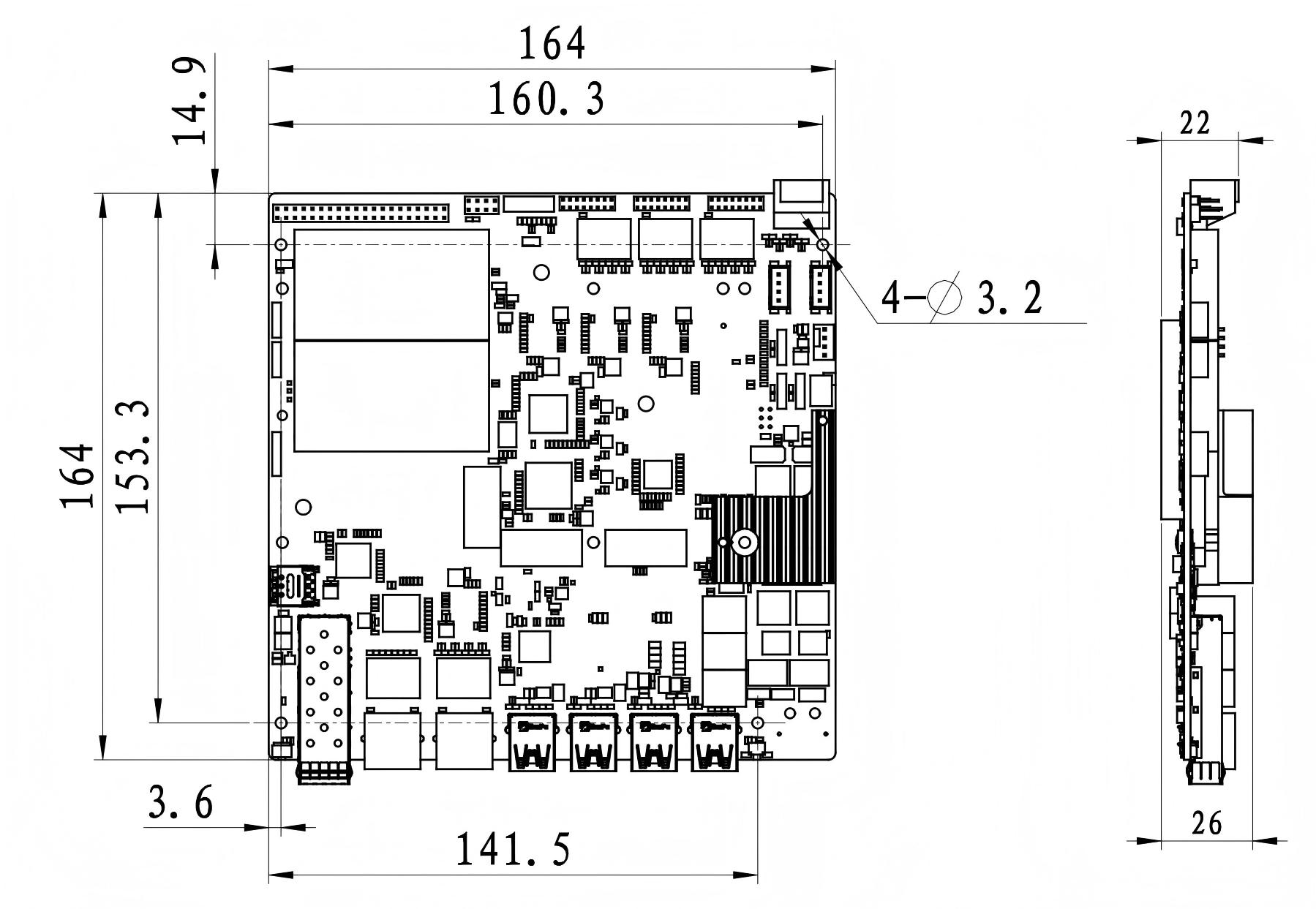

Dimensions
GC-A301
Downloads
stp
GC-A301
Size:12.35 MB 2026-05-29
