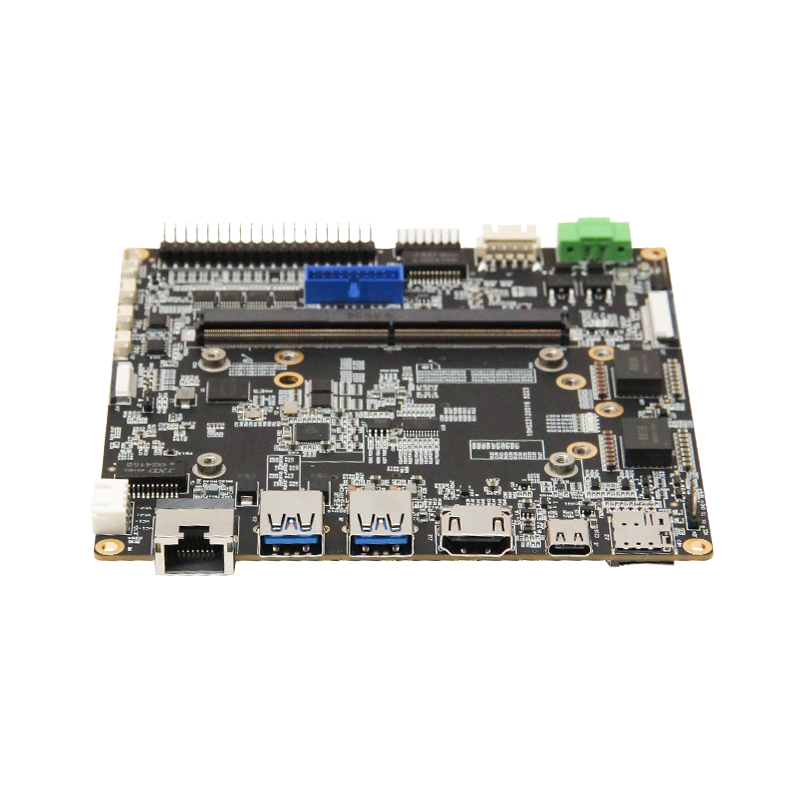

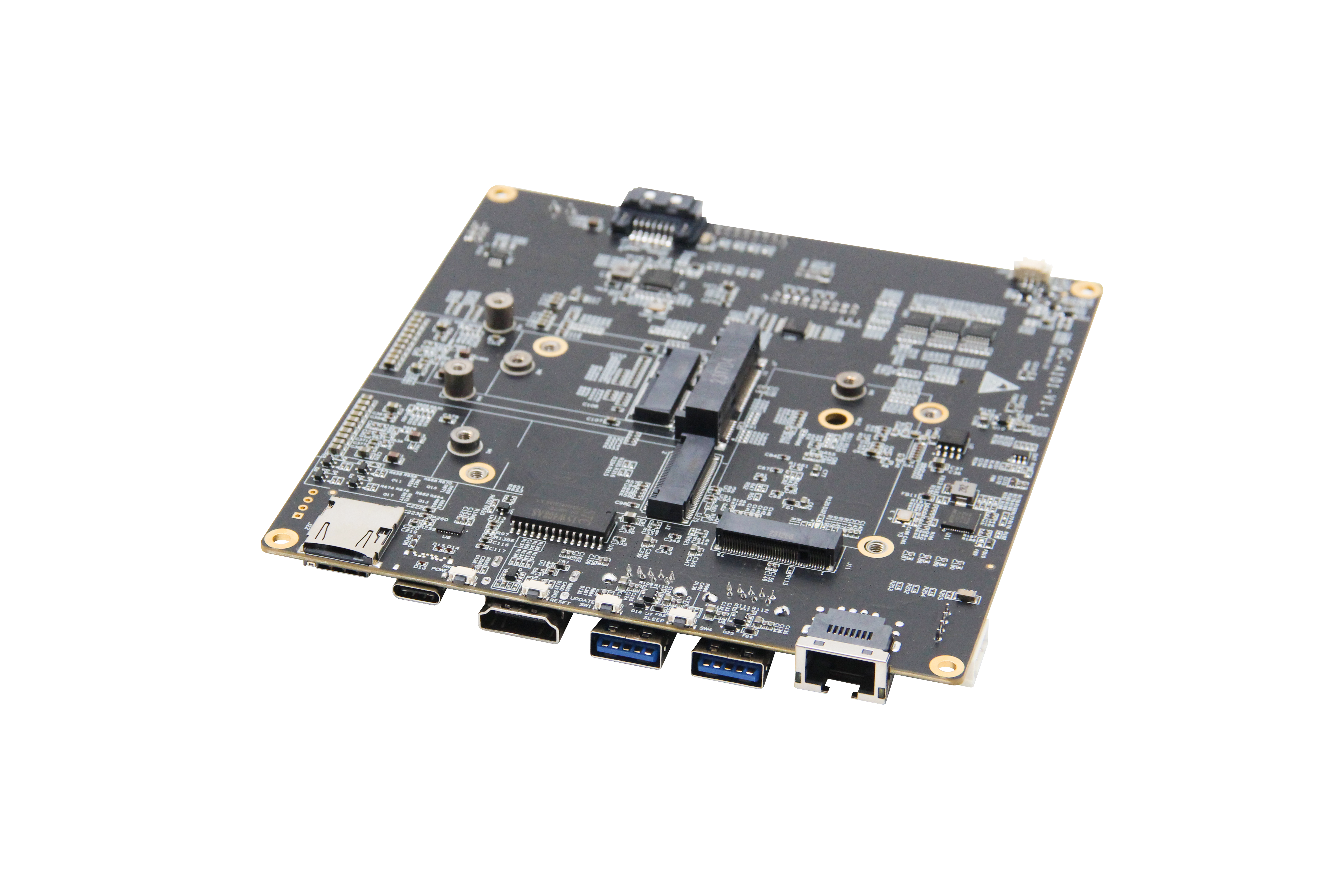

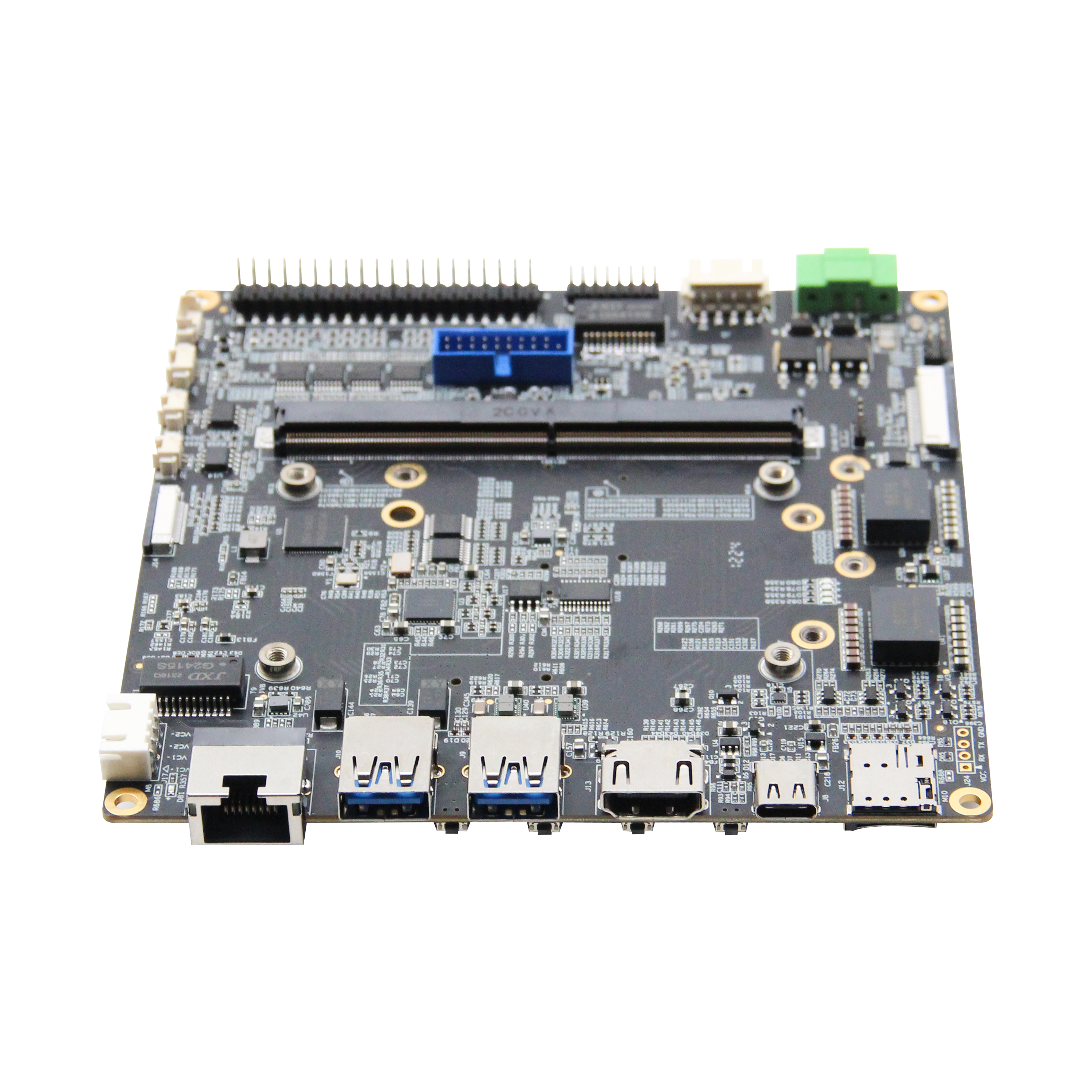

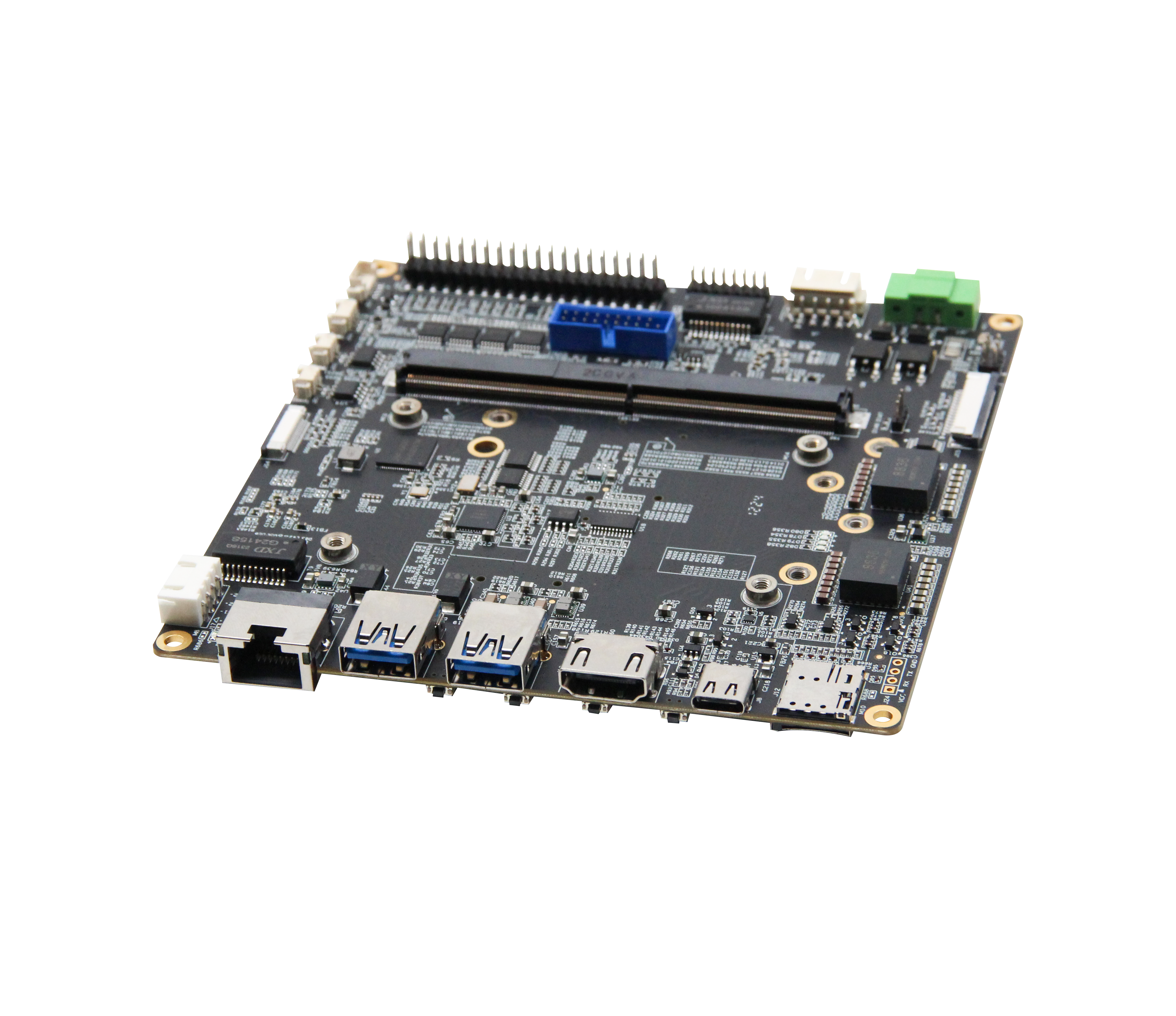

GC-A101

Based on Atlas 200I A2 Accelerator Module

Display Interfaces: 1 × HDMI, 1 × MIPI DSI

Rich I/O Interfaces: 2 × USB3.0 Type-A, 1 × USB3.0 Type-C, 1 × RJ45, 1 × Micro SD, 1 × RTC, 1 × Audio In, 2 × Audio Out

Expansion Slots: 1 × miniPCIe, 1 × M.2 E-Key 2230, 1 × M.2 M-Key 2242, 1 × M.2 B-Key 3050, 1 × Nano SIM, 1 × SATA power interface

Operating Temperature: -40℃ ~ +85℃

Input Voltage: DC 19V ~ 36V

Overview

GC-A101 is an industrial-grade development board specifically designed for edge AI scenarios. Its core is equipped with the Ascend Atlas 200I A2 acceleration module, offering 8 TOPS or 20 TOPS computing power options, meeting the performance requirements for real-time AI inference in fields such as intelligent monitoring, smart education, autonomous robots, and drones.

To ensure stable operation in complex industrial environments, this carrier board fully adopts wide-temperature industrial-grade components and has implemented electrostatic safety protection designs for the main interfaces. Its highly reliable power supply solution and abundant external interfaces (including TF card slots and various boot media) provide high flexibility and compatibility for multi-scenario connection adaptation.

Applications
GC-A101 GC-A101

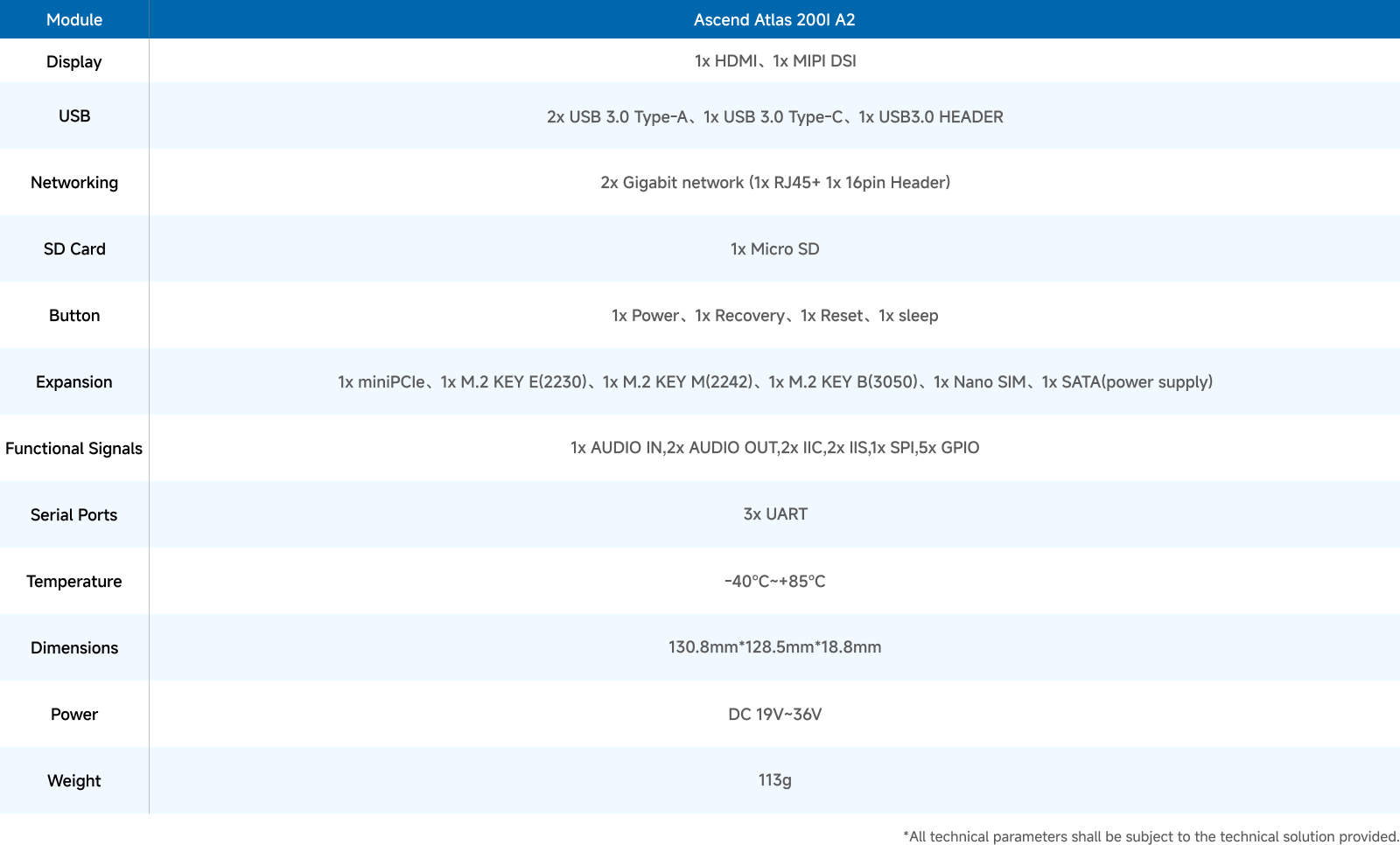

Specifications
GC-A101
Interfaces
GC-A101

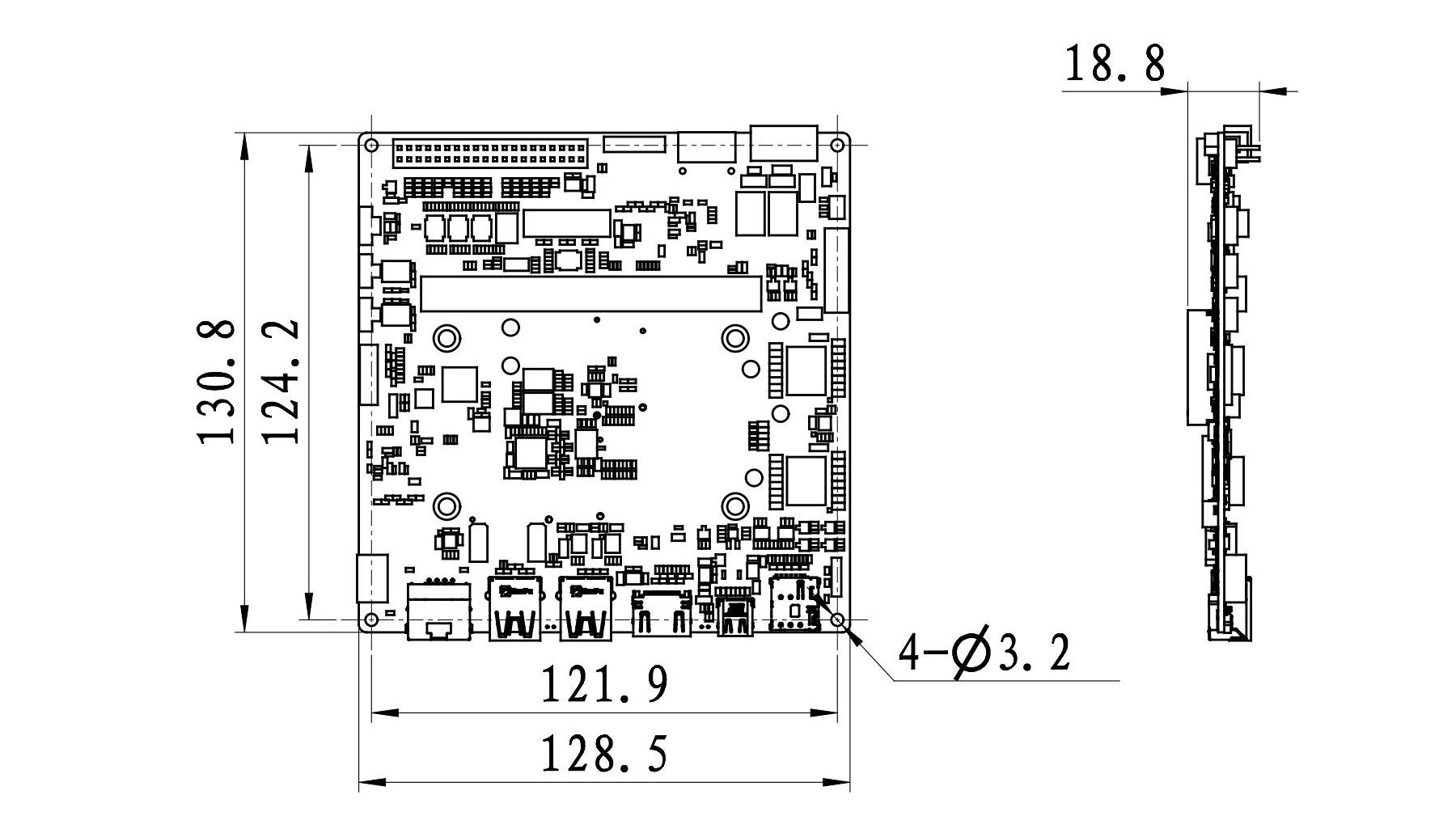

Dimensions
GC-A101
Downloads
pdf
GC-A101_Carrier_Board_Datasheet_EN
Size:1.09 MB 2026-05-29
stp
GC-A101
Size:21.52 MB 2026-05-29
