IGX Orin

Up to 1705 TOPS

12-core ARM® Cortex®-A78AE v8.2 CPU

NVIDIA ConnectX-7

Infineon Aurix TC397 security MCU (sMCU)

Overview

NVIDIA IGX™ is an industrial-grade, edge AI platform that combines enterprise-level hardware, software, and support. It’s purpose-built for industrial, robotics, and medical environments, delivering powerful AI compute, high-bandwidth sensor processing, enterprise security, and robot safety.

The Developer kit also features a chassis-mounted PCIe Gen5 slot (x16) that can accommodate an optional discrete Graphics Processing Unit (dGPU).

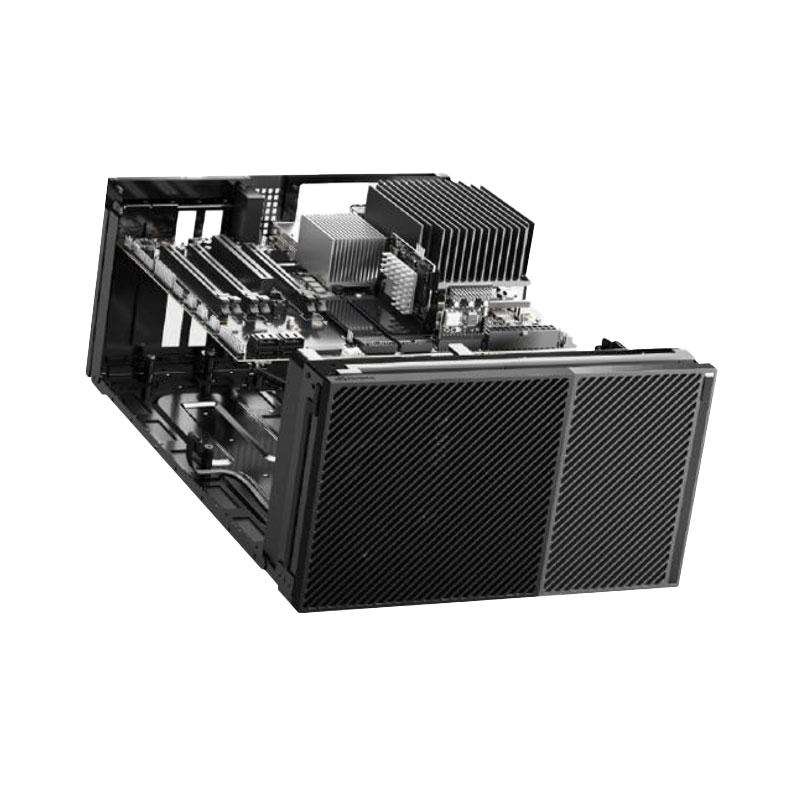

The NVIDIA IGX Orin Developer Kit has dual fans on the front panel to cool down the NVIDIA IGX Orin Industrial Module, NVIDIA® CONNECTX®-7, NVIDIA BMC Module, and other devices in the chassis.

Applications
IGX Orin IGX Orin

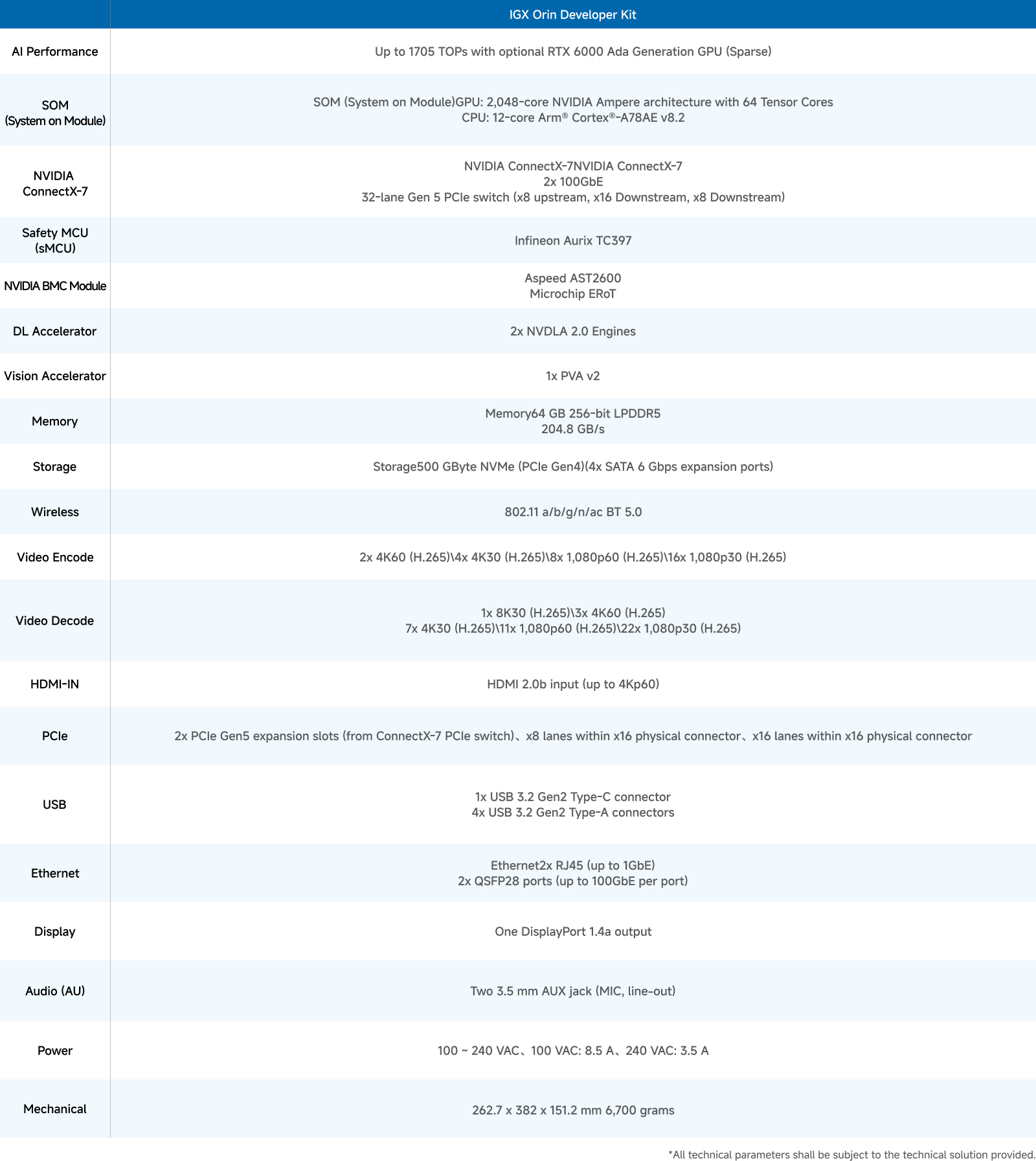

Specifications
IGX Orin
Downloads
pdf
IGX Orin Datasheet
Size:2.28 MB 2026-05-29
