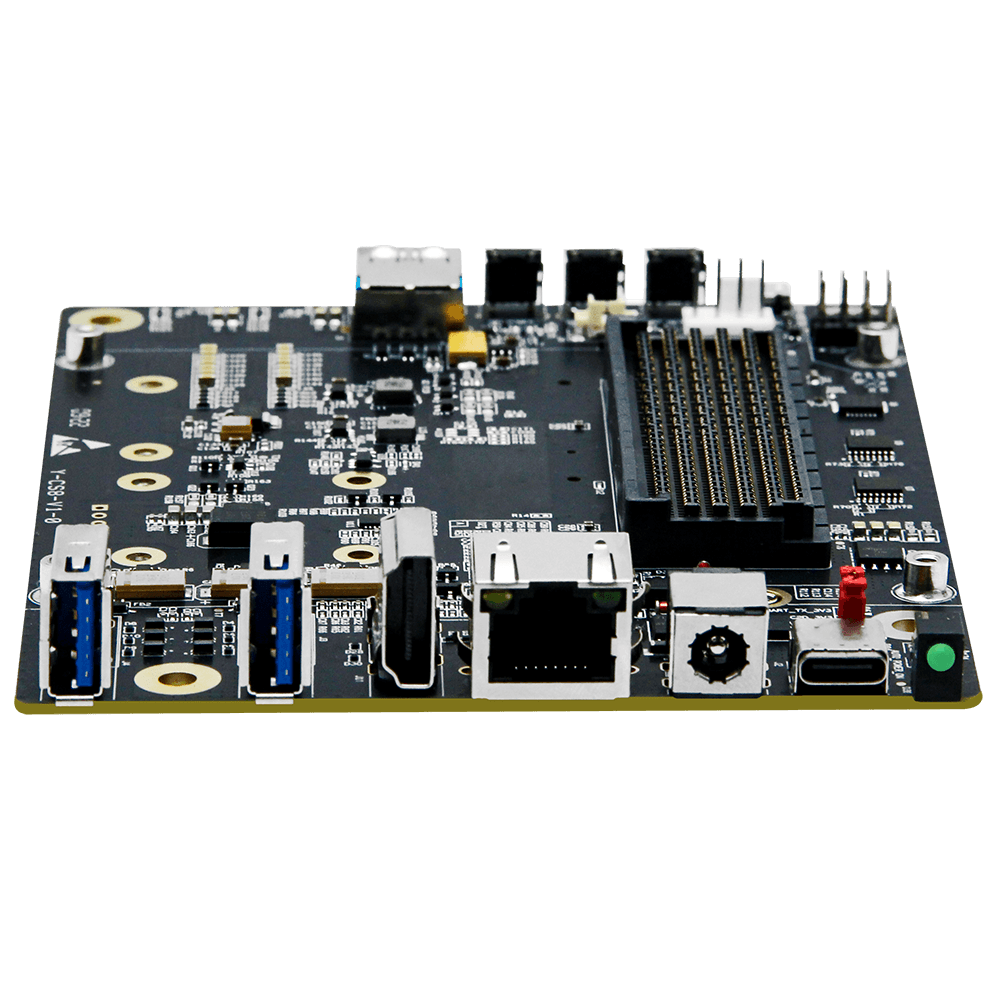

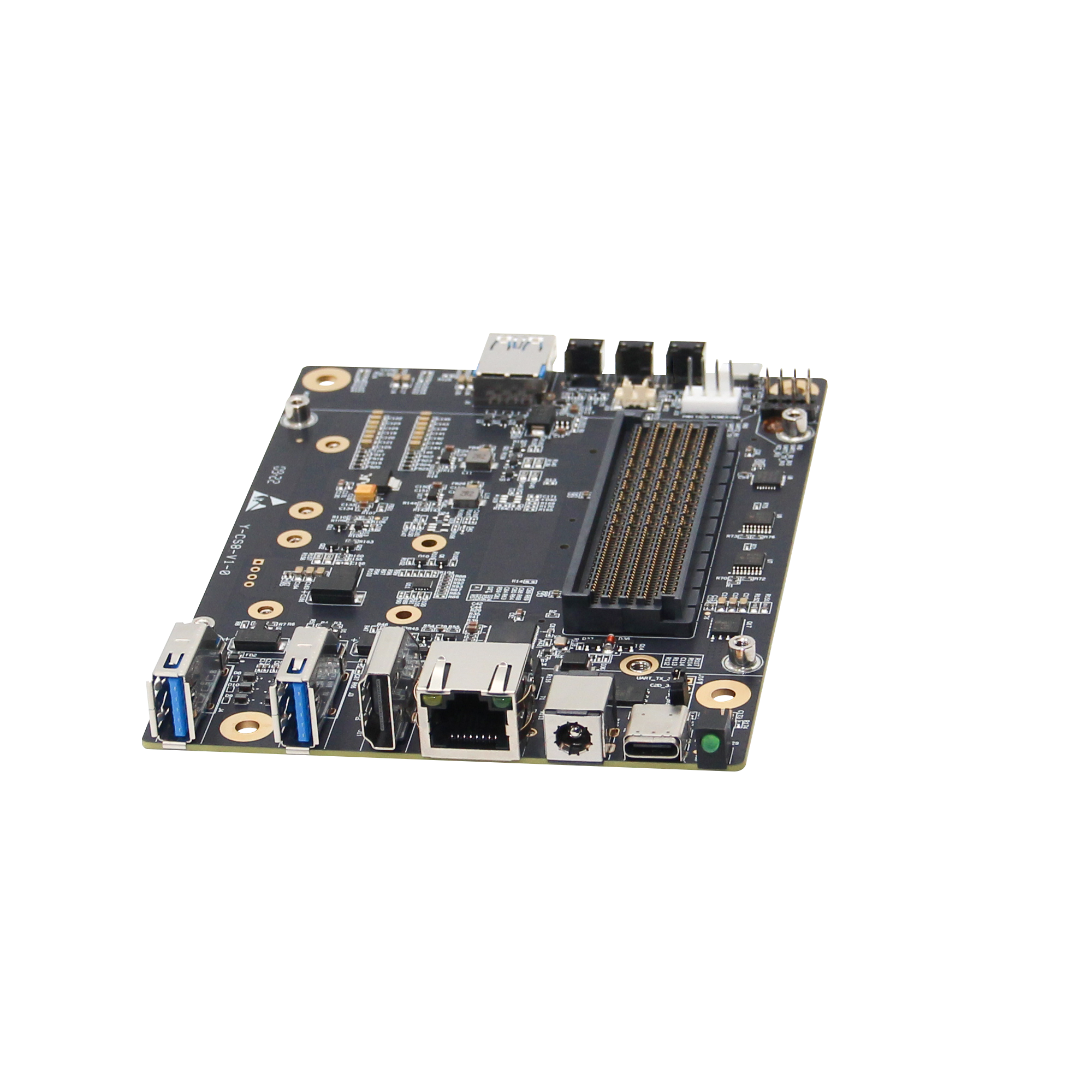

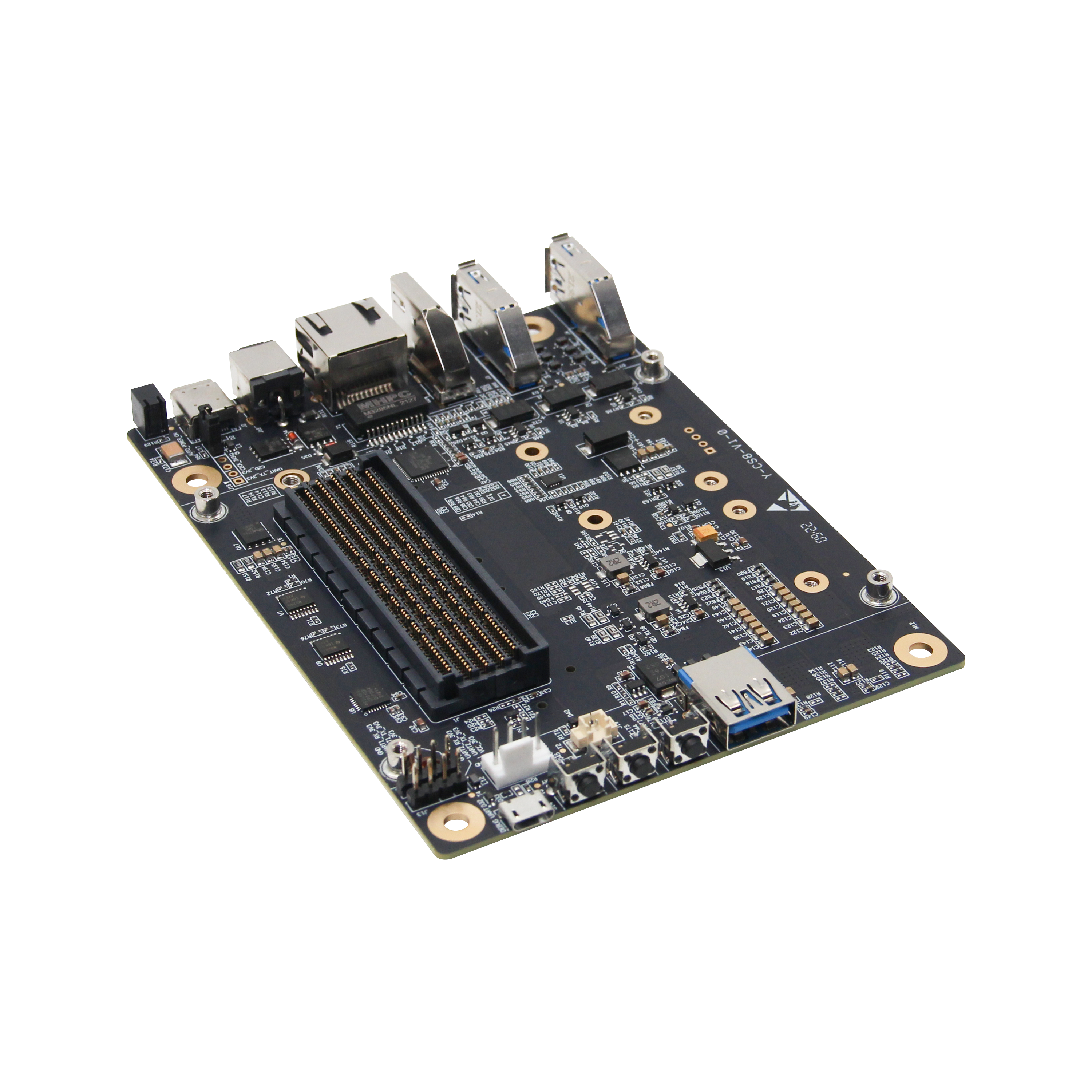

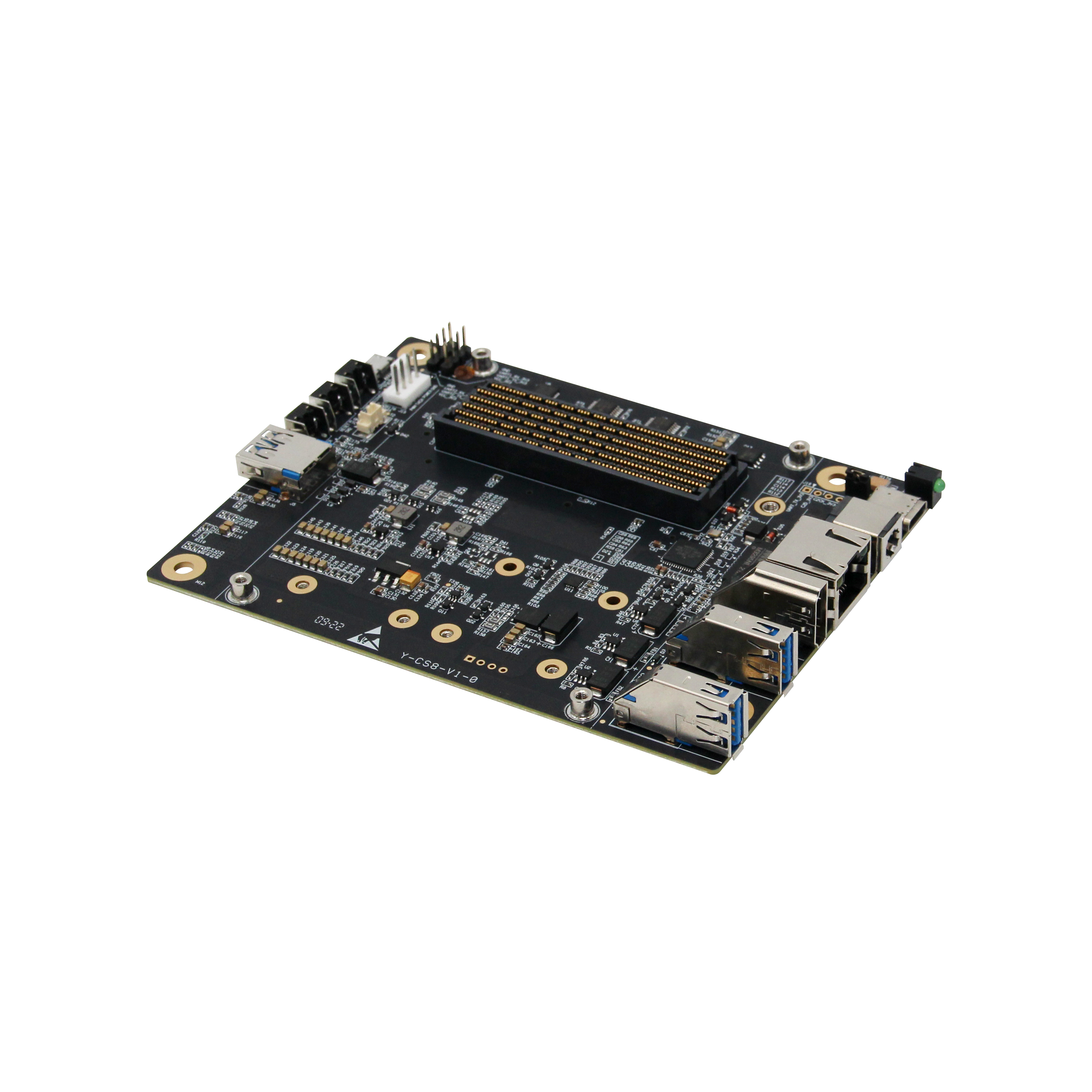

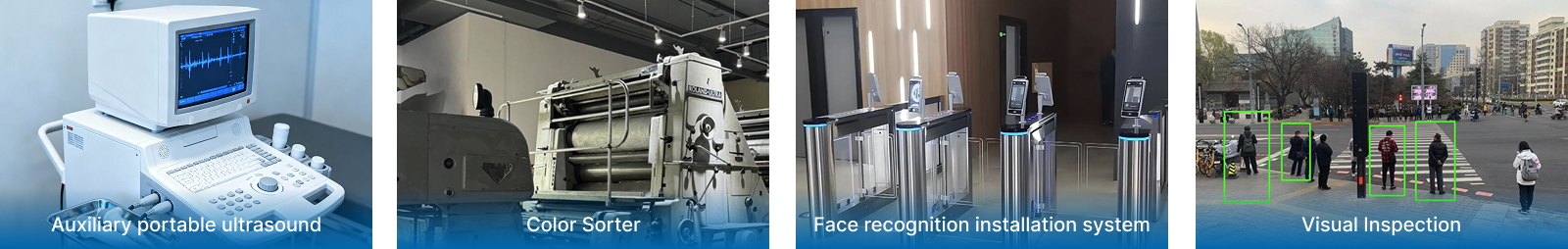

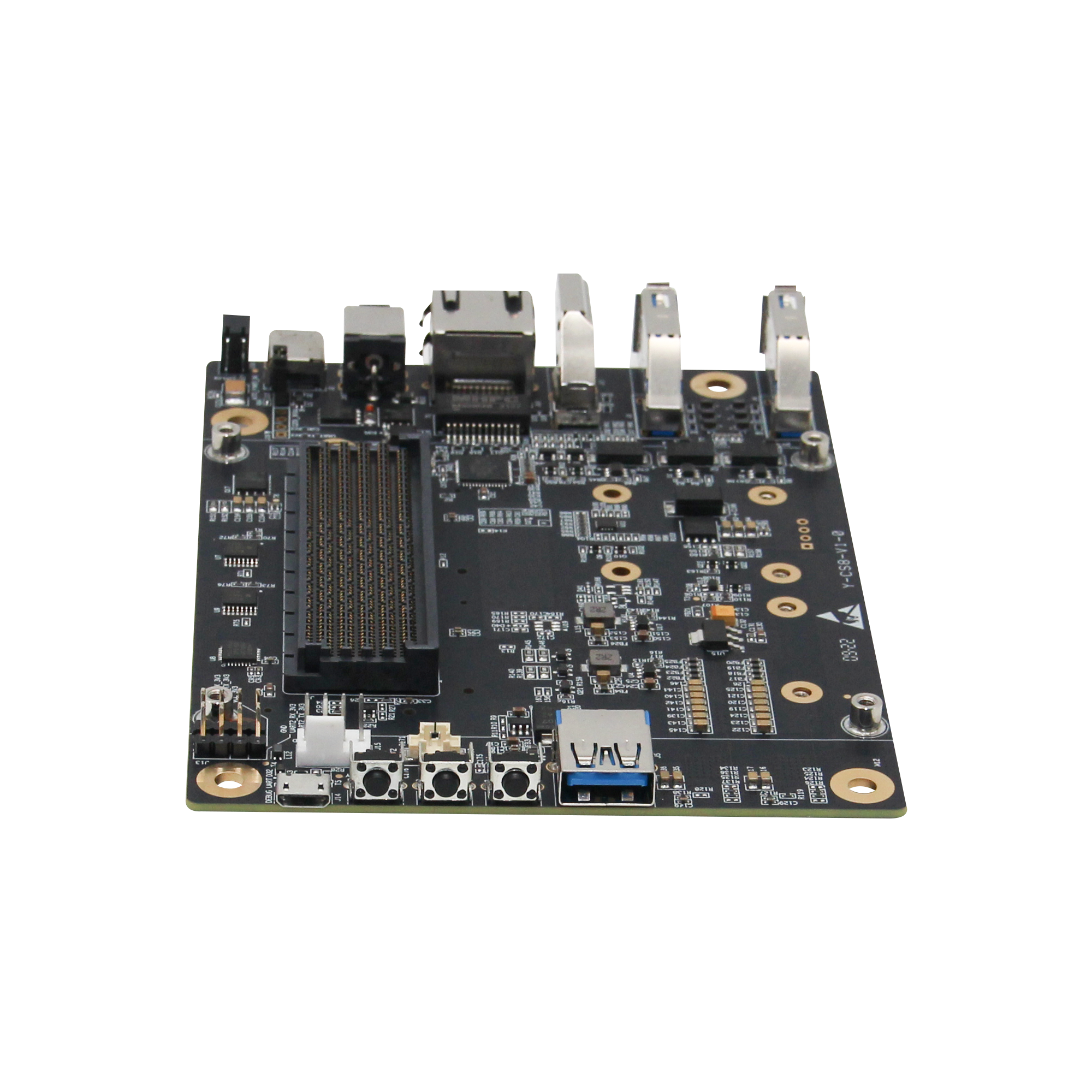

Y-C9 is a high-compatibility edge AI carrier board designed for NVIDIA® Jetson™ AGX Orin / AGX Xavier, optimized for compact edge AI deployments in medical imaging, industrial inspection, smart surveillance and intelligent in-vehicle systems.It features industrial-grade high-reliability design with ESD, over-voltage and reverse polarity protection, and wide-temperature components for stable operation in harsh environments. Rich I/O and dual miniPCIe plus M.2 M slots enable flexible expansion of multi-channel Gigabit Ethernet, full-speed USB3.0, full-speed SATA, high-capacity storage, video capture, multi-serial and AD acquisition modules.
Y-C9

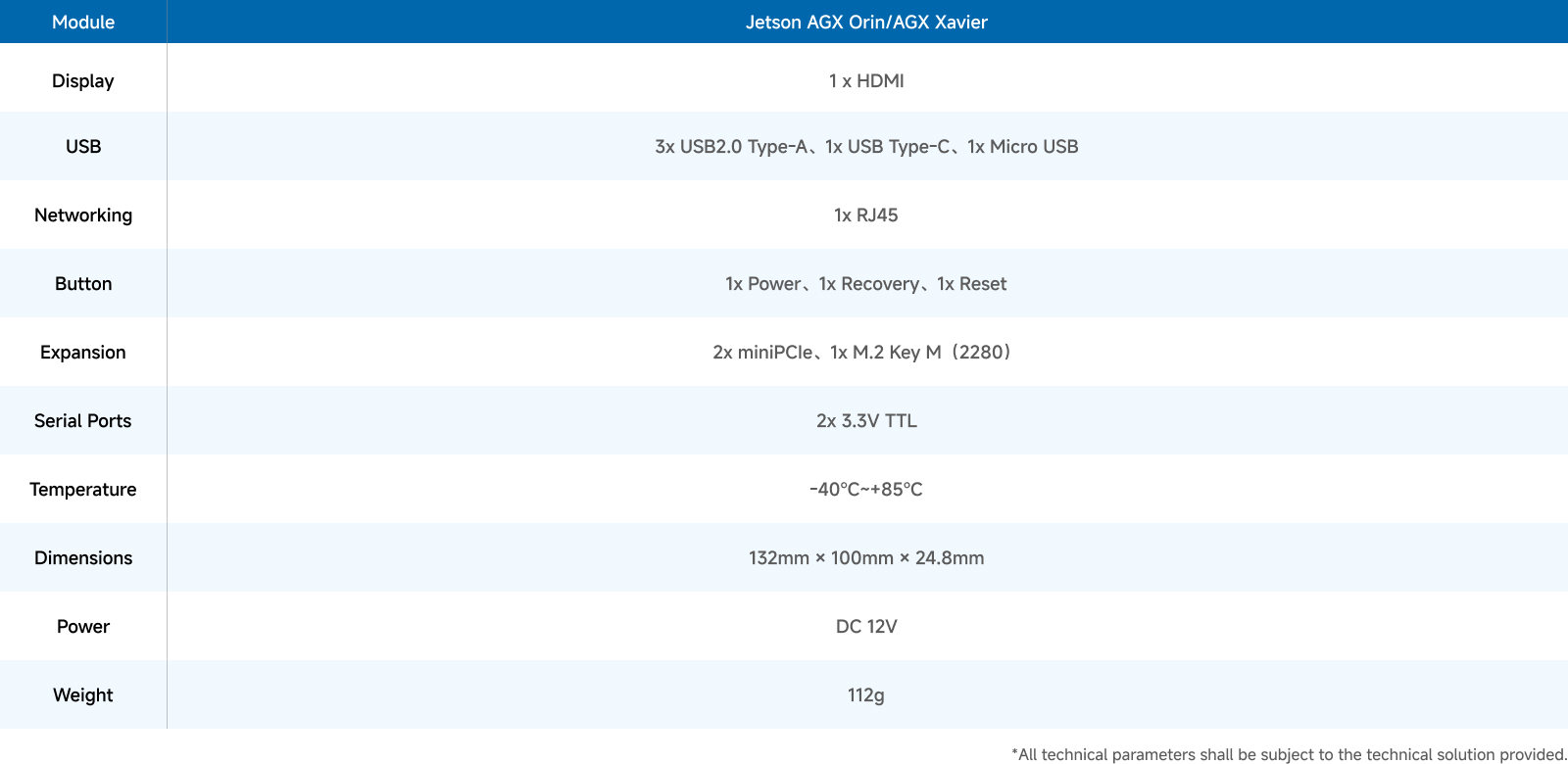

Compatible with Jetson™ AGX Orin / AGX Xavier
Display: 1×HDMI

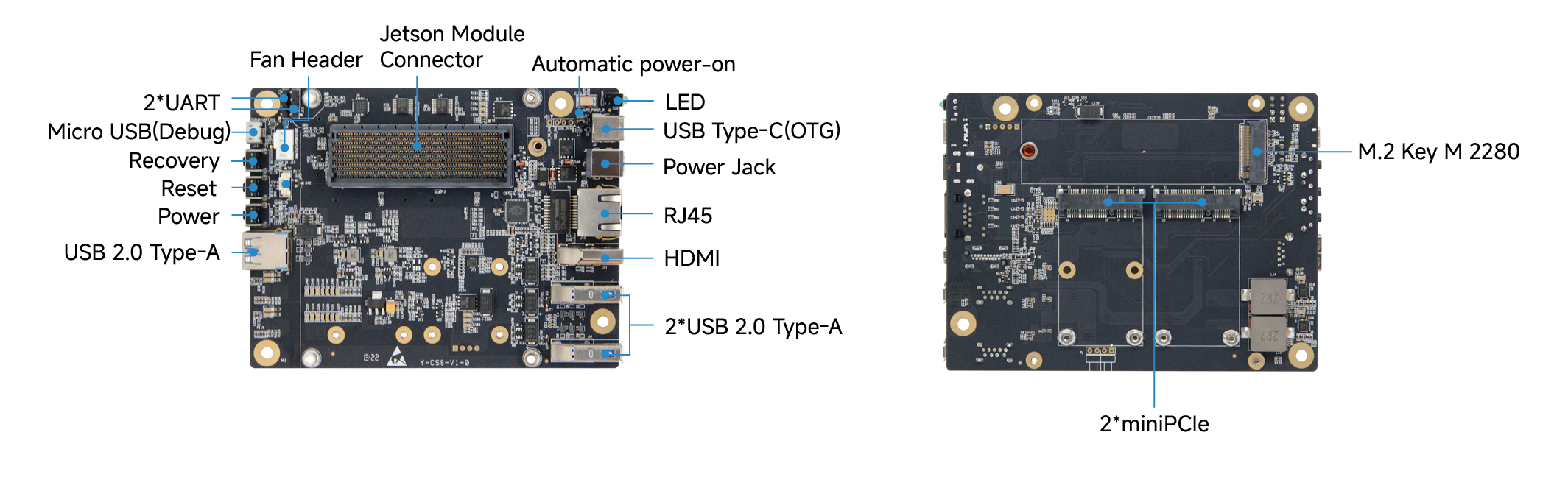

Rich I/O: 1×RJ45, 3×USB Type-A, 1×USB Type-C, 1×Micro USB, 2×TTL

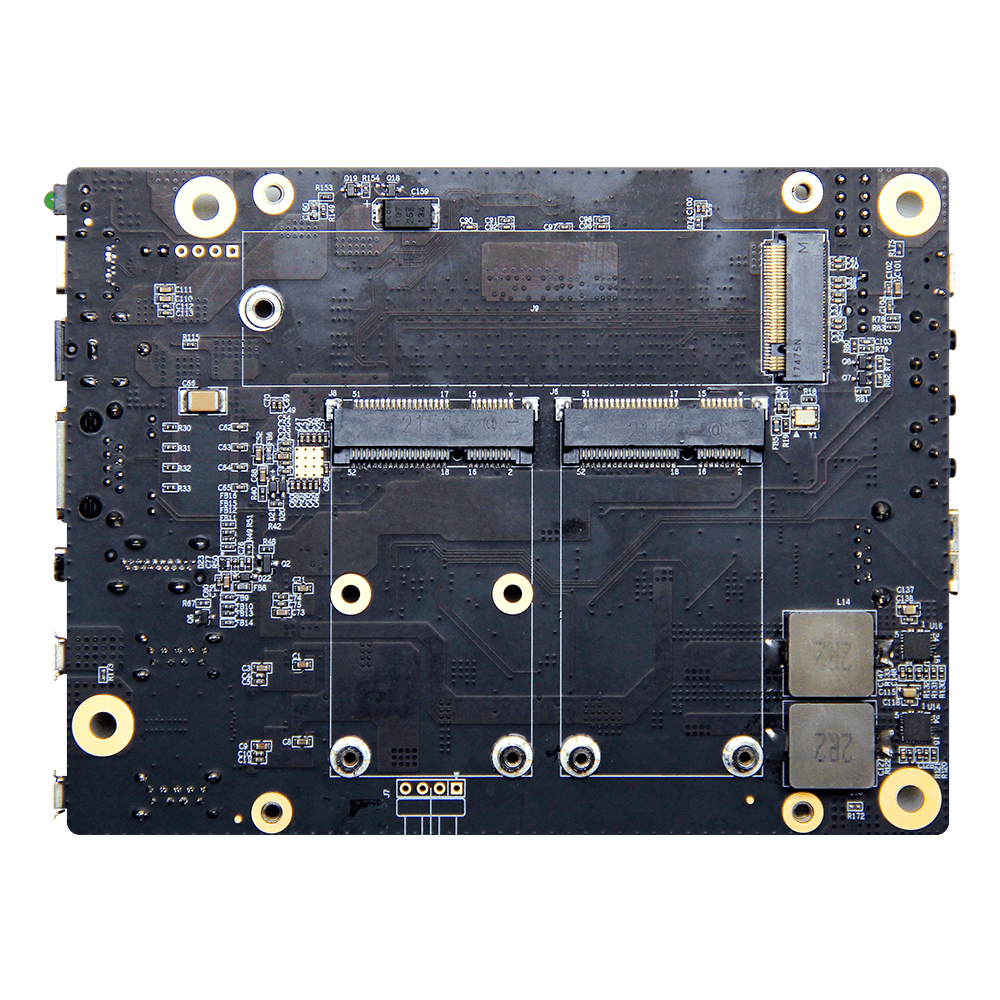

Expansion Slots: 2×miniPCIe, 1×M.2 M 2280
Operating Temperature: -40℃ ~ +85℃
Input Voltage: DC 12V
