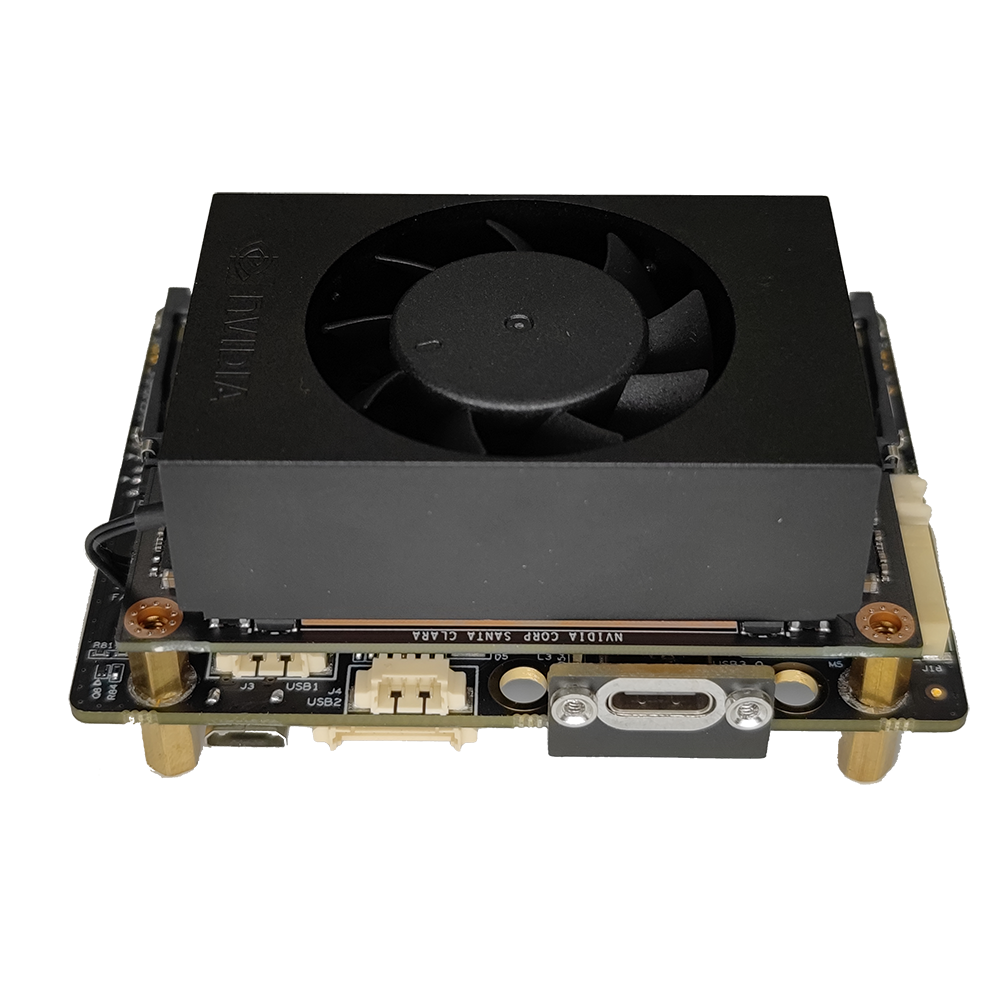

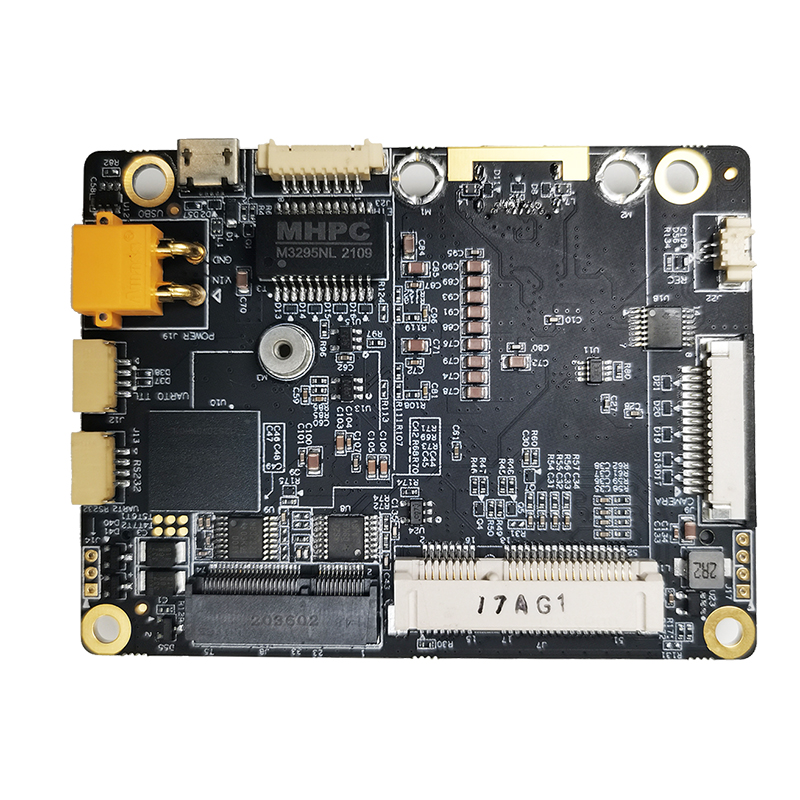

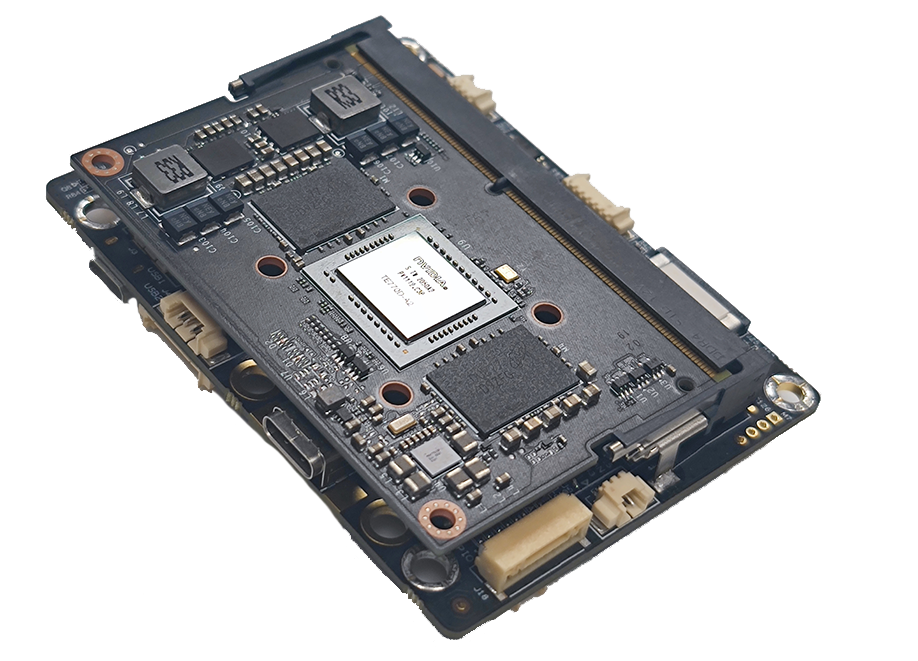

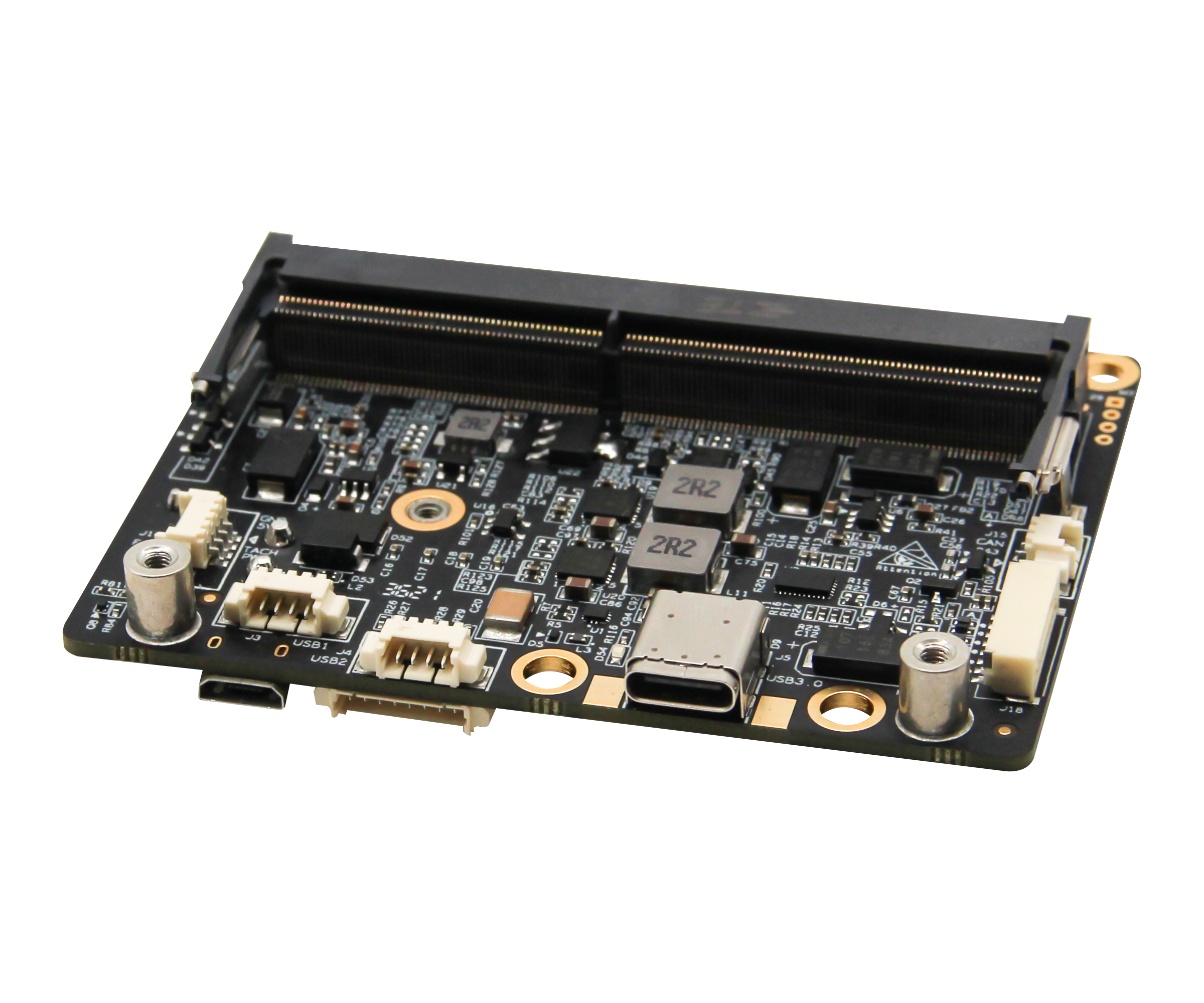

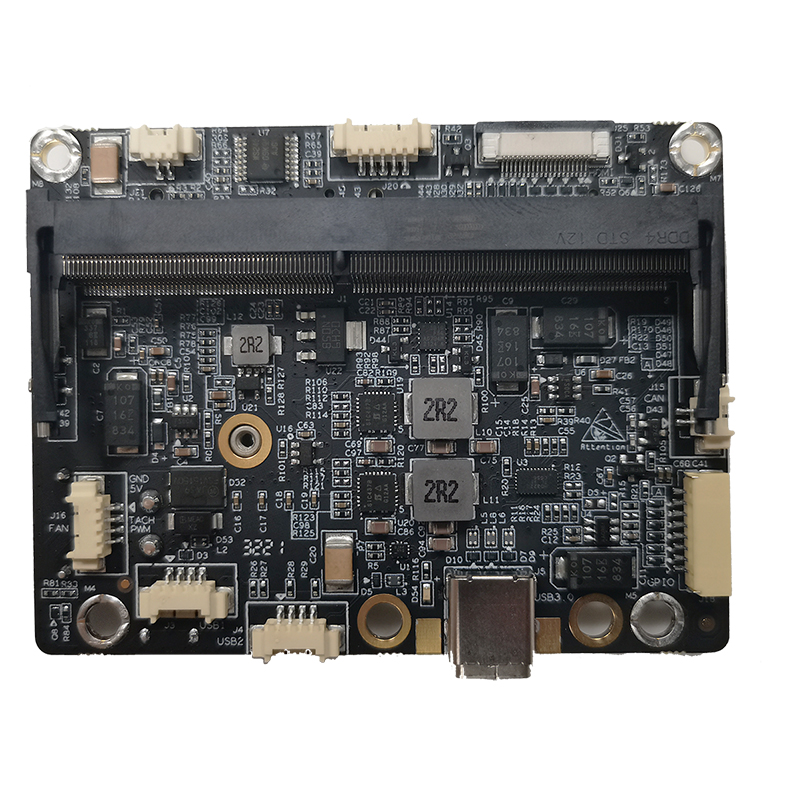

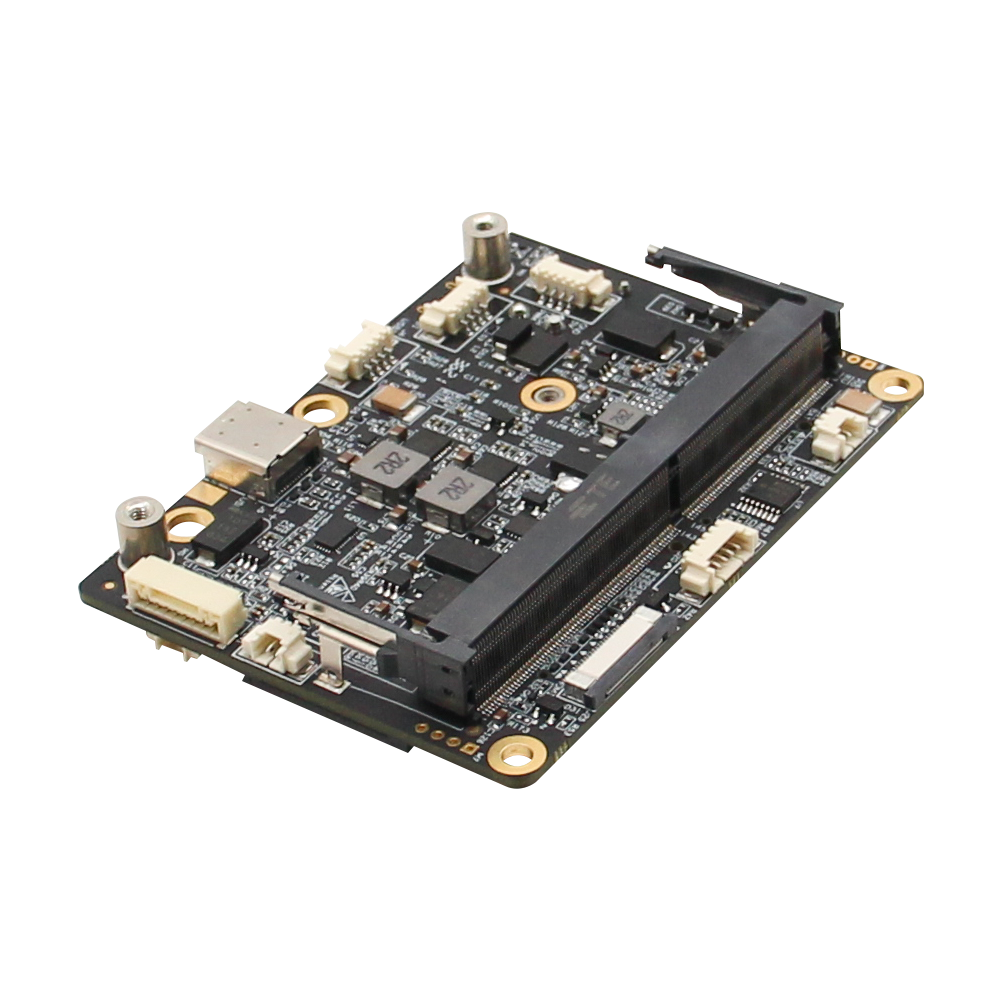

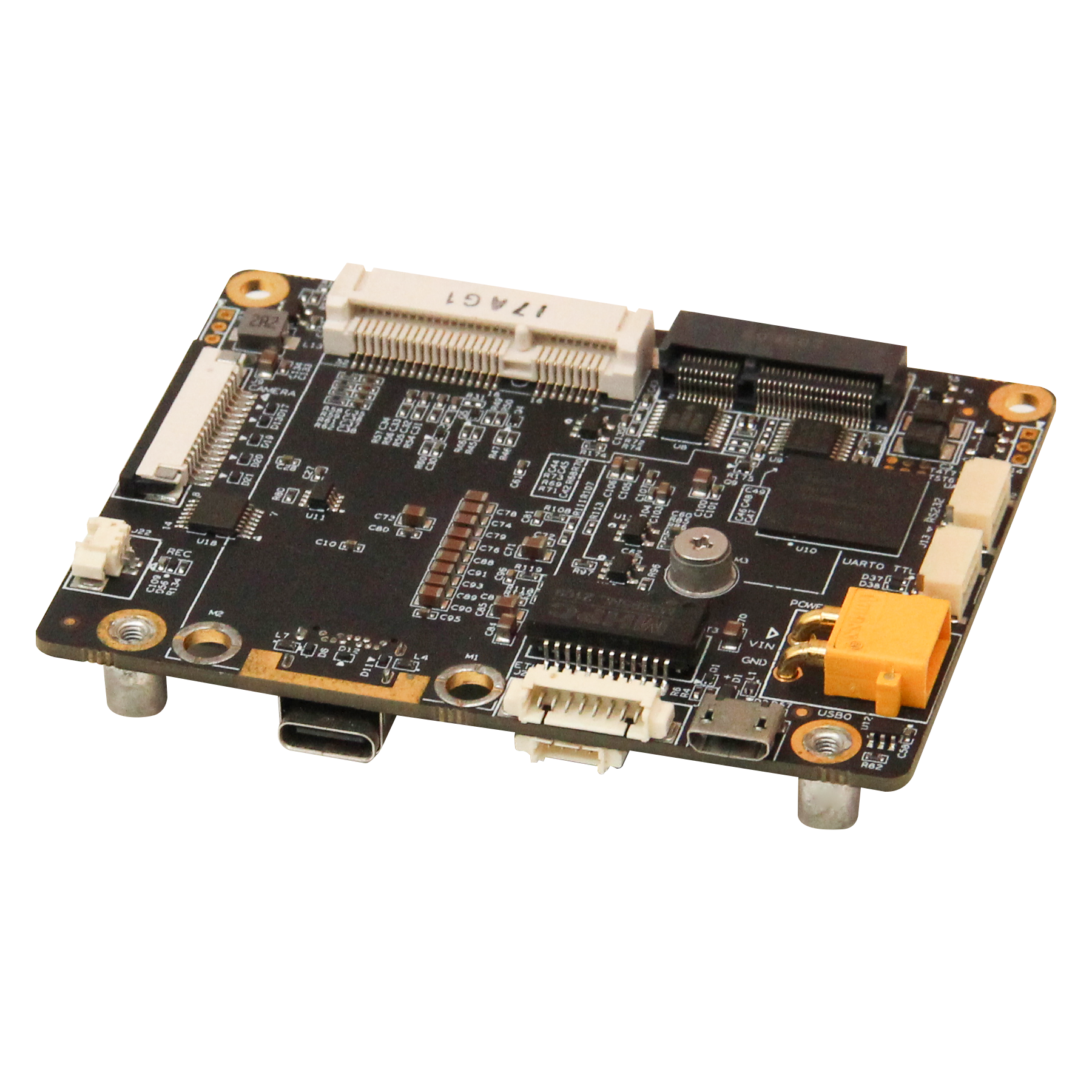

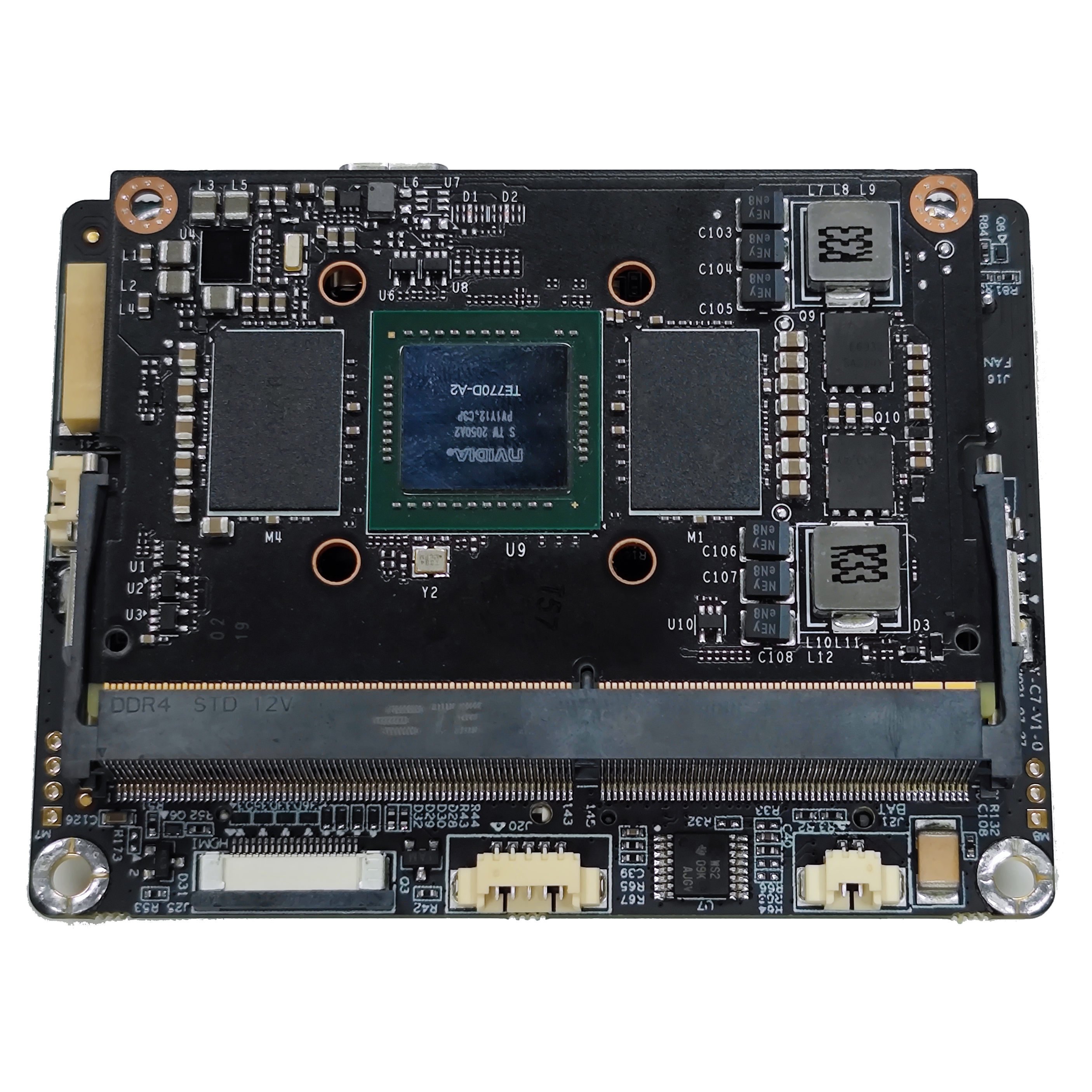

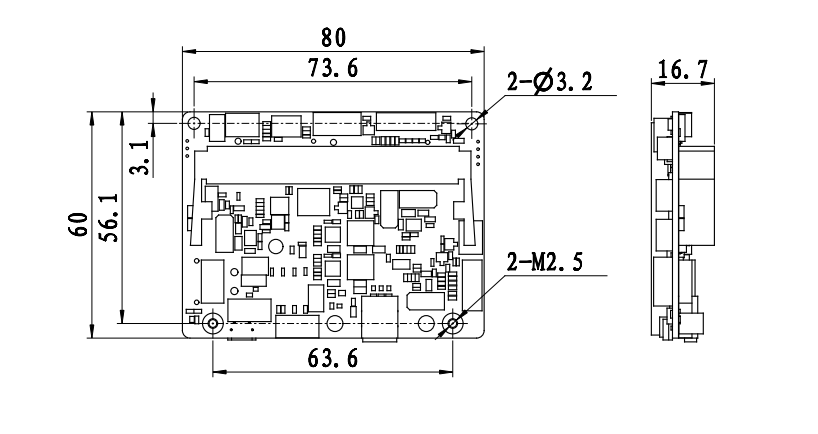

Y-C7 is a high-compatibility edge AI carrier board designed for NVIDIA® Jetson™ Nano / TX2 NX / Xavier NX / Orin Nano / Orin NX. At only 80mm×60mm×16.7mm, it is ideal for compact drone applications including inspection, environmental awareness, emergency rescue and logistics delivery.It uses a full-interface flexible cable design with stress relief for superior anti-vibration performance in flight. A 64GB industrial eMMC is onboard for storage expansion (not supported on Orin NX/Orin Nano). MIPI CSI supports various cameras and is compatible with CVBS/SDI/HDMI video. miniPCIe and M.2 E slots support modular function expansion.
Y-C7

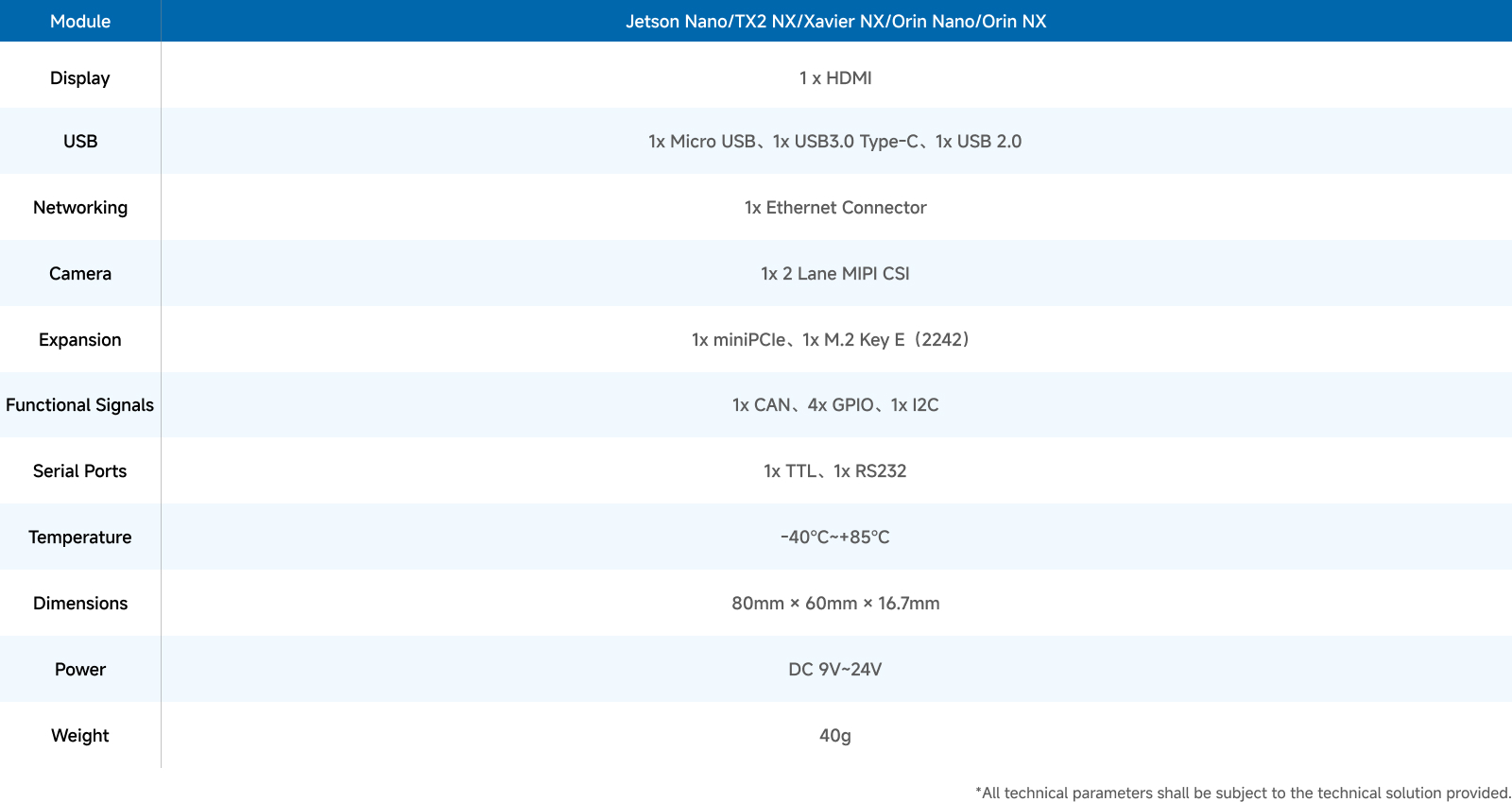

Compatible with Jetson™ Nano / TX2 NX / Xavier NX / Orin Nano / Orin NX

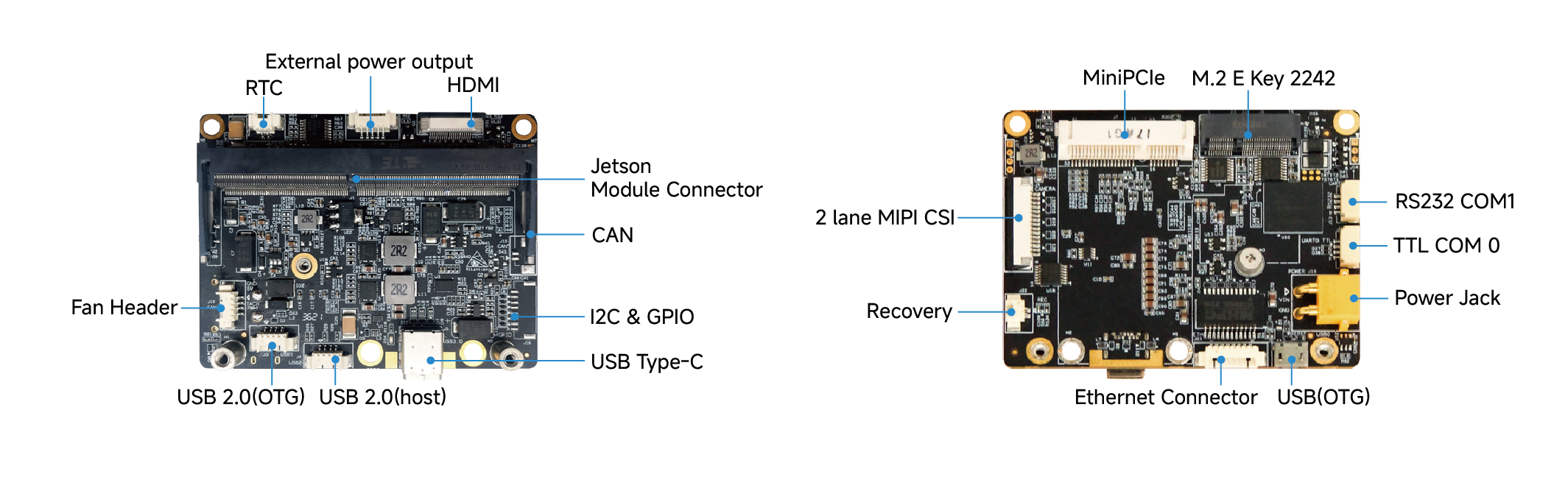

Display: 1×HDMI
Rich I/O: 1×USB3.0 Type-C, 1×Micro USB, 1×USB2.0, 1×CAN, 4×GPIO, 1×I2C, 1×TTL, 1×RS232
Expansion Slots: 1×miniPCIe, 1×M.2 E 2242
Camera Interface: 1×2-Lane MIPI CSI
Operating Temperature: -40℃ ~ +85℃
Input Voltage: DC 9V ~ 24V
