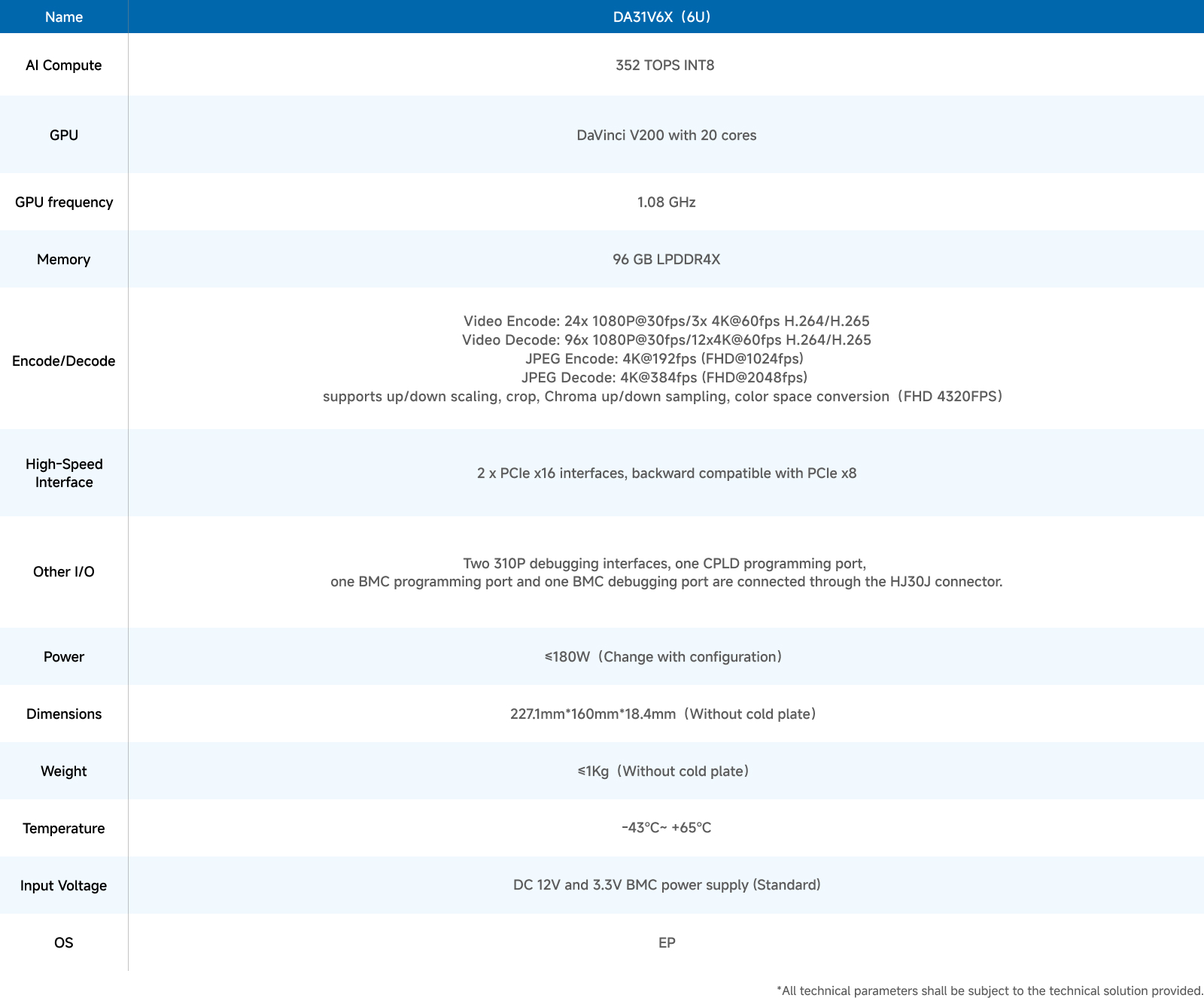

The DA31V6X is a high-performance industrial edge AI computing card powered by dual onboard Ascend 310P processors.It supports standalone chip operation or aggregated computing power via HCCS inter-chip interconnection, delivering a peak AI performance of 352 TOPS INT8. Equipped with 96GB LPDDR4X memory, the card enables multi-channel HD video encoding, decoding and image processing, ideal for AI inference deployment in industrial automation, aerospace, UAV and other edge scenarios.

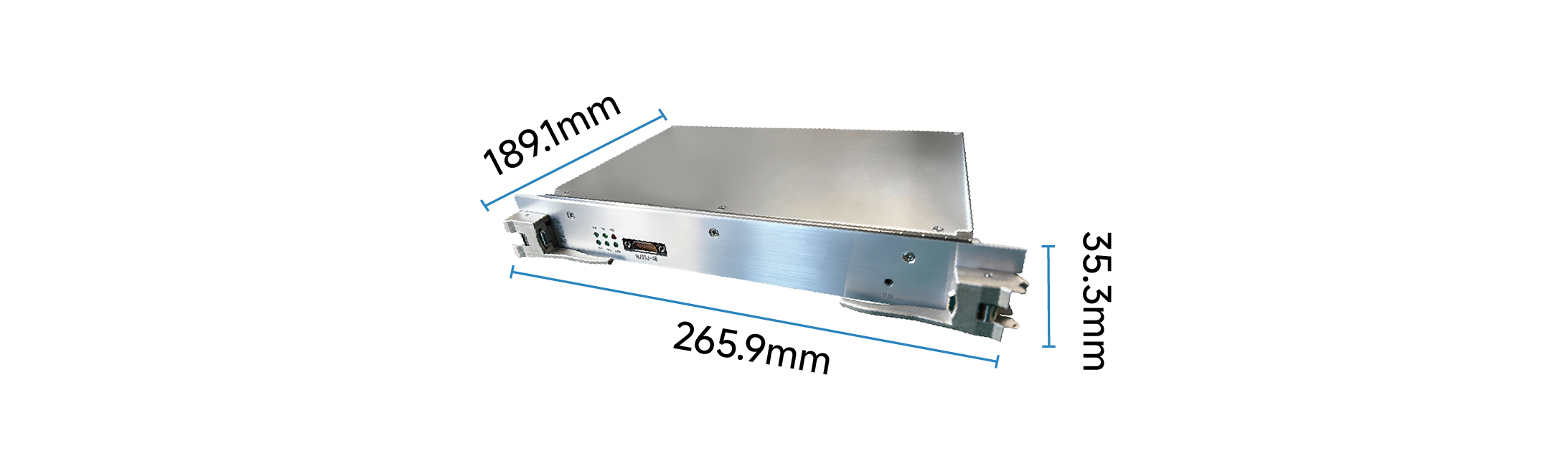

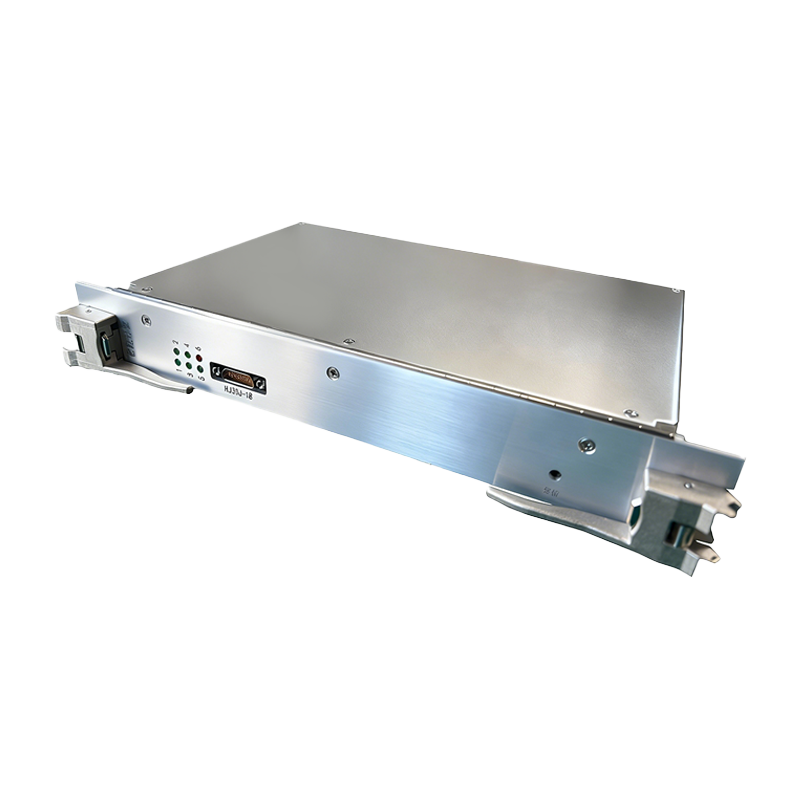

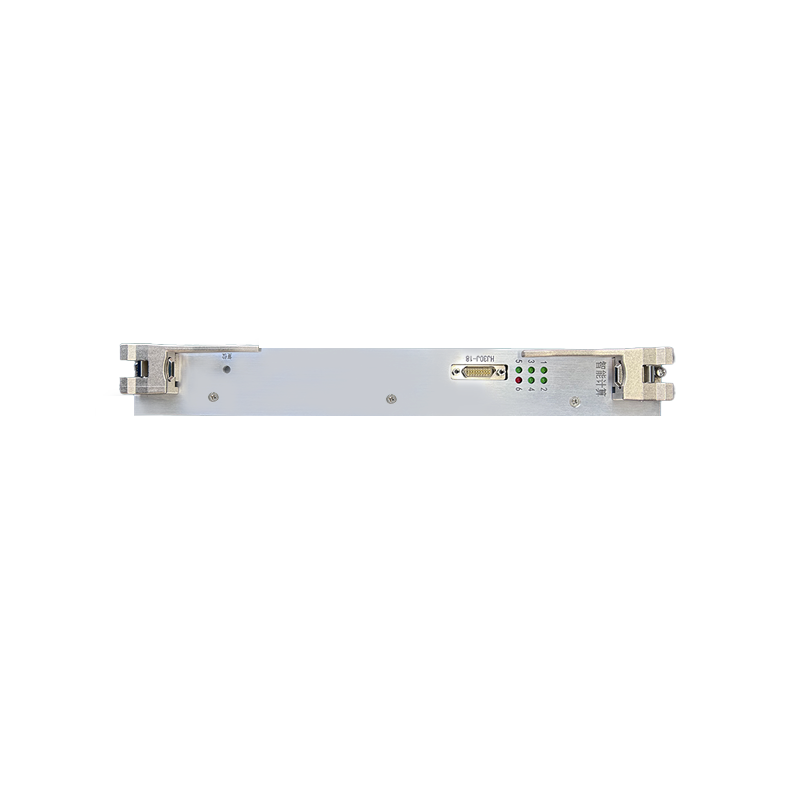

Complying with VPX VITA46 specification, DA31V6X adopts a 6U form factor and features 2 × PCIe x16 high-speed interfaces. HJ30J connectors extend abundant debug and flash interfaces. The front panel is integrated with debug port, reset switch and multi-status LEDs.
